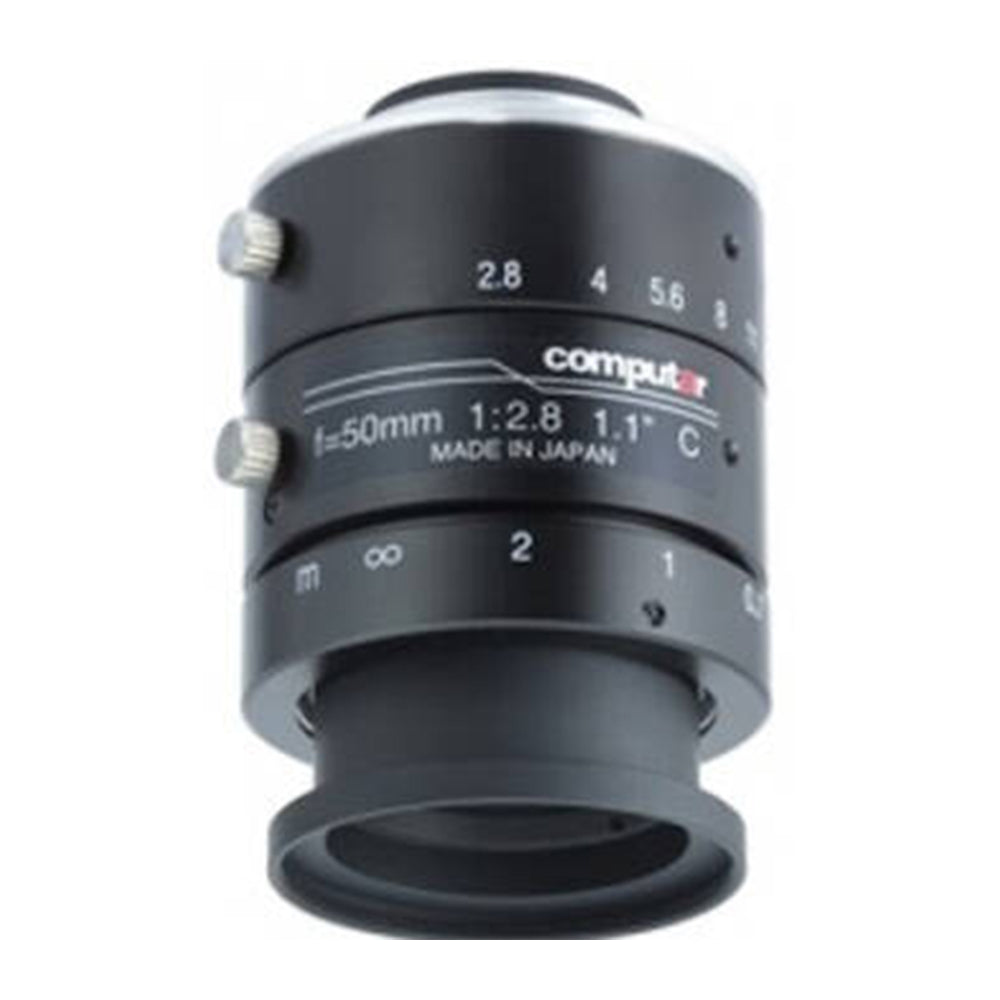

Computar VG5020KC-MPYIR-V31 50 mm 1.1″ f/2 - f/16 Fixed Focal Length Lens

ComputarSKU: VG5020KC-MPYIR-V31

Price:
Sale price$1,071.40 USD

Shipping calculated at checkout

Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

Computar VG5020KC-MPYIR-V31

Designed to fully leverage the high sensitivity and precise high-speed imaging of the 1.1″ Sony IMX253 and IMX255 sensors. MPY lenses are available in a full range of standard focal lengths for virtually any application—supporting pixel sizes as small as 3.45μm. This Lens Series combines high-performance optics with various standard focal lengths for maximum application flexibility.

  • Machine Vision and ITS Applications
  • Fixed Focal Length
  • Available in 8, 12, 16, 25, 35, and 50mm focal lengths and with P-Iris.
  • 3.45µm pixel size resolving power.
  • Lightweight design.
  • Vibration resistance up to 5G!
  • Image Circle Ø17
  • Suitable for 1.1″ 12 MP and 1.2″ 24 MP

VG5020KC-MPYIR-V31 Technical Specifications:

Product Line / Series MPY
Lens Type Fixed Focal Length
IP Rating Not Rated
Focal Length 50 mm
ƒ/N ƒ/2 - ƒ/16
Image Circle Diameter 17.6 mm
Image Size Dimensions 14.2 mm x 10.4 mm
Imager Format 1.1″
Light Spectrum Visible, NIR
Resolution (MP) 12
Resolution (Pixel Size) 3.45 μm
Weight 121.9
Mount C-Mount
Filter Thread M40.5-0.5
Minimum Object Distance 3000 mm
Magnification Not Specified
Depth Of Field Not Specified
Front Diameter 24.7 mm
Rear Effective Diameter 18.4 mm
Focus Control Manual
Iris Control Stepper Motor
Zoom Control None
Focus Range 3 m - ∞
Back Focal Length 14.2 mm
Zoom Range Fixed
Operating Temperature Range -10 to +50 °C
Dimensions 42 × 57 × 48.8 mm
AOV @ 1″ H°×V°×D° 14.2 × 10.7 × 17.7°
AOV @ 1.1″ H°×V°×D° 15.7 × 11.6 × 19.4°
AOV @ 2/3″ H°×V°×D° 9.8 × 7.4 × 12.2°
