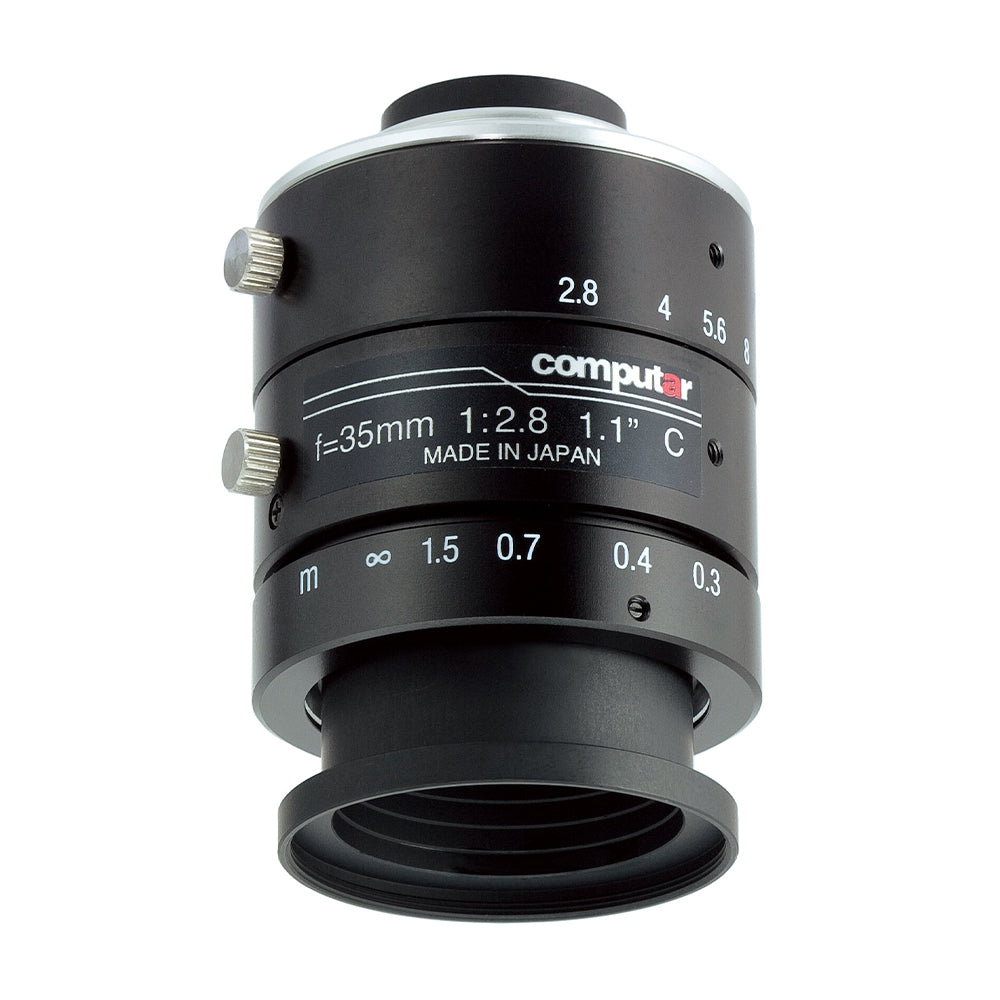

Computar V3528-MPY 35 mm 1.1″ f/2.8 - f/16 Fixed Focal Length Lens

ComputarSKU: V3528-MPY

Price:
Sale price$592.90 USD

Shipping calculated at checkout

Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

Computar V3528-MPY

Designed to fully leverage the high sensitivity and precise high-speed imaging of the 1.1″ Sony IMX253 and IMX255 sensors. MPY lenses are available in a full range of standard focal lengths for virtually any application—supporting pixel sizes as small as 3.45μm. This Lens Series combines high-performance optics with various standard focal lengths for maximum application flexibility.

  • Machine Vision and ITS Applications
  • Fixed Focal Length
  • Available in 8, 12, 16, 25, 35, and 50mm focal lengths and with P-Iris.
  • 3.45µm pixel size resolving power.
  • Lightweight design.
  • Vibration resistance up to 5G!
  • Image Circle Ø17
  • Suitable for 1.1″ 12 MP and 1.2″ 24 MP

V3528-MPY Technical Specifications:

Product Line / Series MPY
Lens Type Fixed Focal Length
IP Rating Not Rated
Focal Length 35 mm
ƒ/N ƒ/2.8 - ƒ/16
Image Circle Diameter 17.6 mm
Image Size Dimensions 14.2 mm x 10.4 mm
Imager Format 1.1″
Light Spectrum Visible
Resolution (MP) 12
Resolution (Pixel Size) 3.45 μm
Weight 103
Mount C-Mount
Filter Thread M34.0-0.5
Minimum Object Distance 300 mm
Magnification Not Specified
Depth Of Field Not Specified
Front Diameter 20.9 mm
Rear Effective Diameter 14.3 mm
Focus Control Manual
Iris Control Manual
Zoom Control None
Focus Range 0.3 m - ∞
Back Focal Length 11.7 mm
Zoom Range Fixed
Operating Temperature Range -10 to +50 °C
Dimensions 39.5 × 39.5 × 45.2 mm
AOV @ 1″ H°×V°×D° 20.7 × 15.6 × 25.8°
AOV @ 1.1″ H°×V°×D° 22.9 × 16.9 × 28.2°
AOV @ 2/3″ H°×V°×D° 14.3 × 10.8 × 17.9°
