Computar V1628-MPY2 16 mm 1.1″ f/2.8 - f/16 Fixed Focal Length Lens

ComputarSKU: V1628-MPY2

Price:
Sale price$946.00 USD

Shipping calculated at checkout

Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

This price includes tariffs, based on the applicable tariff charges. This change is effective originally as of 5/15/25. Updated 5/16/25, 6/24/25, 9/02/25. Pricing is subject to change and may fluctuate.

This price includes tariffs, based on the applicable tariff charges. This change is effective originally as of 05/15/2025. Updated 05/16/2025 Pricing is subject to change and may fluctuate.

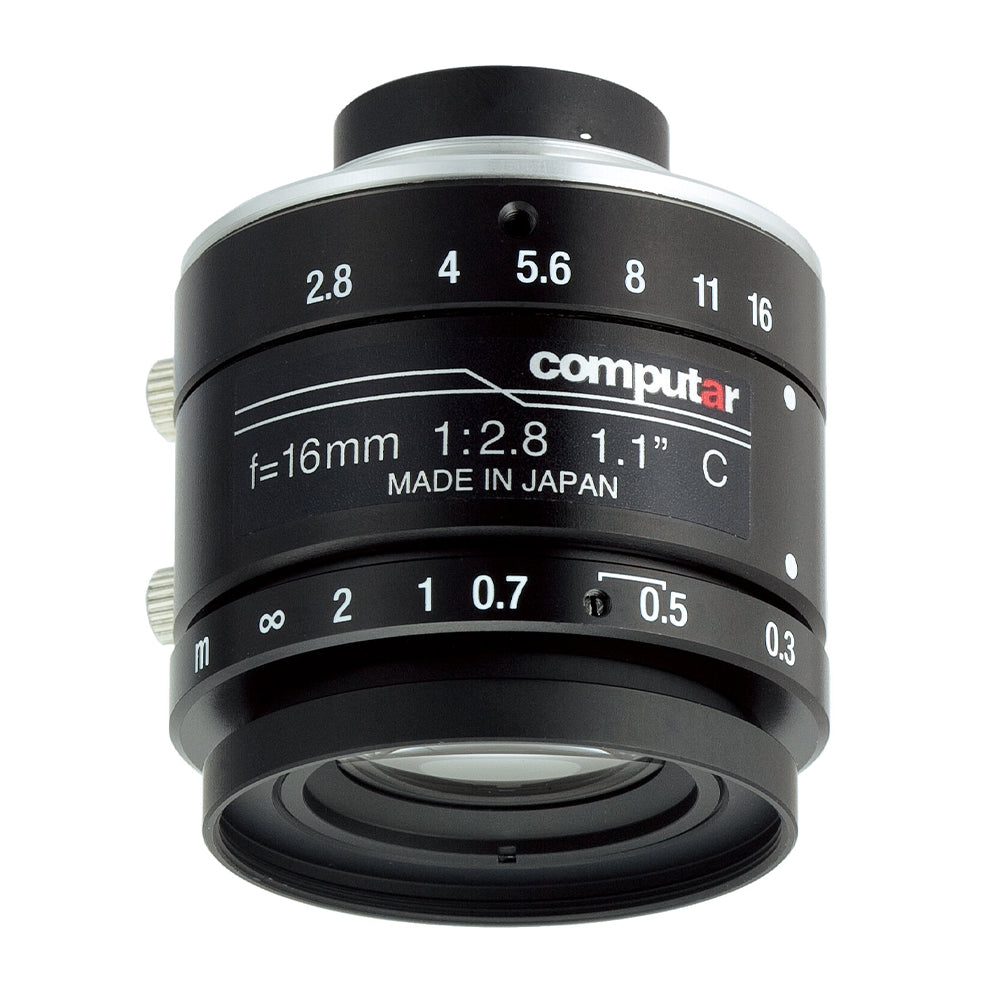

Computar V1628-MPY2

Designed to fully leverage the high sensitivity and precise high-speed imaging of the 1.1″ Sony IMX253 and IMX255 sensors. MPY lenses are available in a full range of standard focal lengths for virtually any application—supporting pixel sizes as small as 3.45μm. This Lens Series combines high-performance optics with various standard focal lengths for maximum application flexibility.

  • Machine Vision and ITS Applications
  • Fixed Focal Length
  • Available in 8, 12, 16, 25, 35, and 50mm focal lengths and with P-Iris.
  • 3.45µm pixel size resolving power.
  • Lightweight design.
  • Vibration resistance up to 5G!
  • Image Circle Ø17
  • Suitable for 1.1″ 12 MP and 1.2″ 24 MP

V1628-MPY2 Technical Specifications:

Product Line / Series MPY
Lens Type Fixed Focal Length
IP Rating Not Rated
Focal Length 16 mm
ƒ/N ƒ/2.8 - ƒ/16
Image Circle Diameter 17.6 mm
Image Size Dimensions 14.2 mm x 10.4 mm
Imager Format 1.1″
Light Spectrum Visible
Resolution (MP) 12
Resolution (Pixel Size) 3.45 μm
Weight 89.8
Mount C-Mount
Filter Thread M34.0 - 0.5
Minimum Object Distance 300 mm
Magnification Not Specified
Depth Of Field Not Specified
Front Diameter 19.4 mm
Rear Effective Diameter 15.3 mm
Focus Control Manual
Iris Control Manual
Zoom Control None
Focus Range 0.3 m - ∞
Back Focal Length 9.4 mm
Zoom Range Fixed
Operating Temperature Range -10 to +50 °C
Dimensions 39.5 × 39.5 × 35.2 mm
AOV @ 1″ H°×V°×D° 43.9 × 33.6 × 53.4°
AOV @ 1.1″ H°×V°×D° 48.2 × 36.2 × 57.9°
AOV @ 2/3″ H°×V°×D° 30.9 × 23.4 × 38.2°
