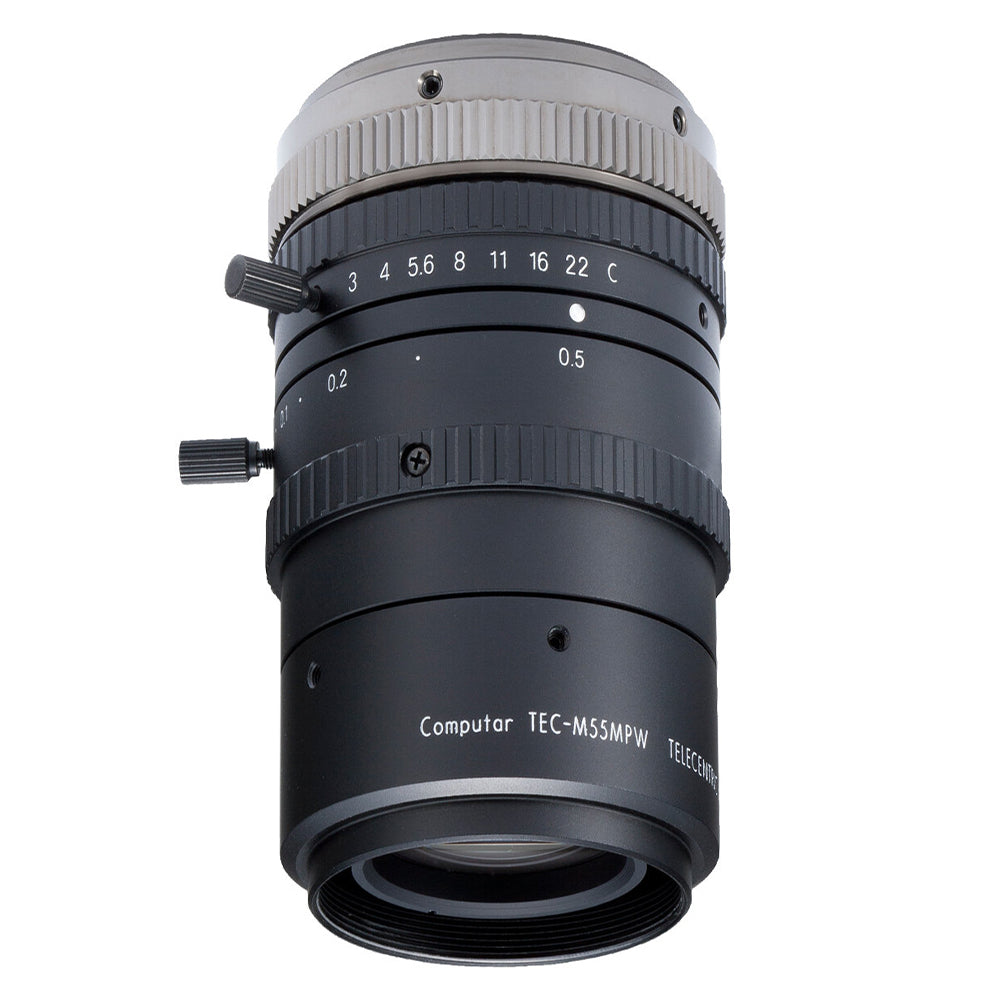

Computar TEC-M55MPW
TEC-M Series Telecentric lenses from Computar offer high-resolution images with the lowest possible geometrical distortion.
- Compatible with 2MP sensors on 2/3″ cameras
- A wide variety of magnification options available (65mm WO - 0.5x, 0.8x, 1.0x, 2.0x, 4.0x, 6.0x, 110mm WO - 0.3x, 0.5x, 0.8x, 1.0x, 1.5x, 2.0x, 3.0x, 4.0x)
- All include coaxial models except (65mm 4.0x, 6.0x and 110mm 3.0x, 4.0x)
- Low TV distortion correction to the furthest corner (0.01 - 0.03s%)
TEC-M55MPW Technical Specifications:
Product Line / Series | TEC-M Series |
Lens Type | Fixed Focal Length, Telecentric |
IP Rating | Not Rated |
Focal Length | Telecentric |
ƒ/N | ƒ/3 - ƒ/22 |
Image Circle Diameter | 11 mm |
Image Size Dimensions | 8.8 mm x 6.6 mm |
Imager Format | 2/3″ |
Light Spectrum | Visible |
Resolution (MP) | 5 |
Resolution (Pixel Size) | Not Specified |
Weight | 400 |
Mount | C-Mount |
Filter Thread | M46-0.75 |
Minimum Object Distance | 140 mm |
Magnification | 0.057 - 0.5× |
Depth Of Field | Not Specified |
Front Diameter | 30.8 mm |
Rear Effective Diameter | 10.7 mm |
Focus Control | Manual |
Iris Control | Manual |
Zoom Control | None |
Focus Range | 0.14 m - 1 m |
Back Focal Length | 17 mm |
Zoom Range | Fixed |
Operating Temperature Range | -10 to +50 °C |
Dimensions | 59 × 59 × 93.1 mm |
TV Distortion (%) | 0.5 |
