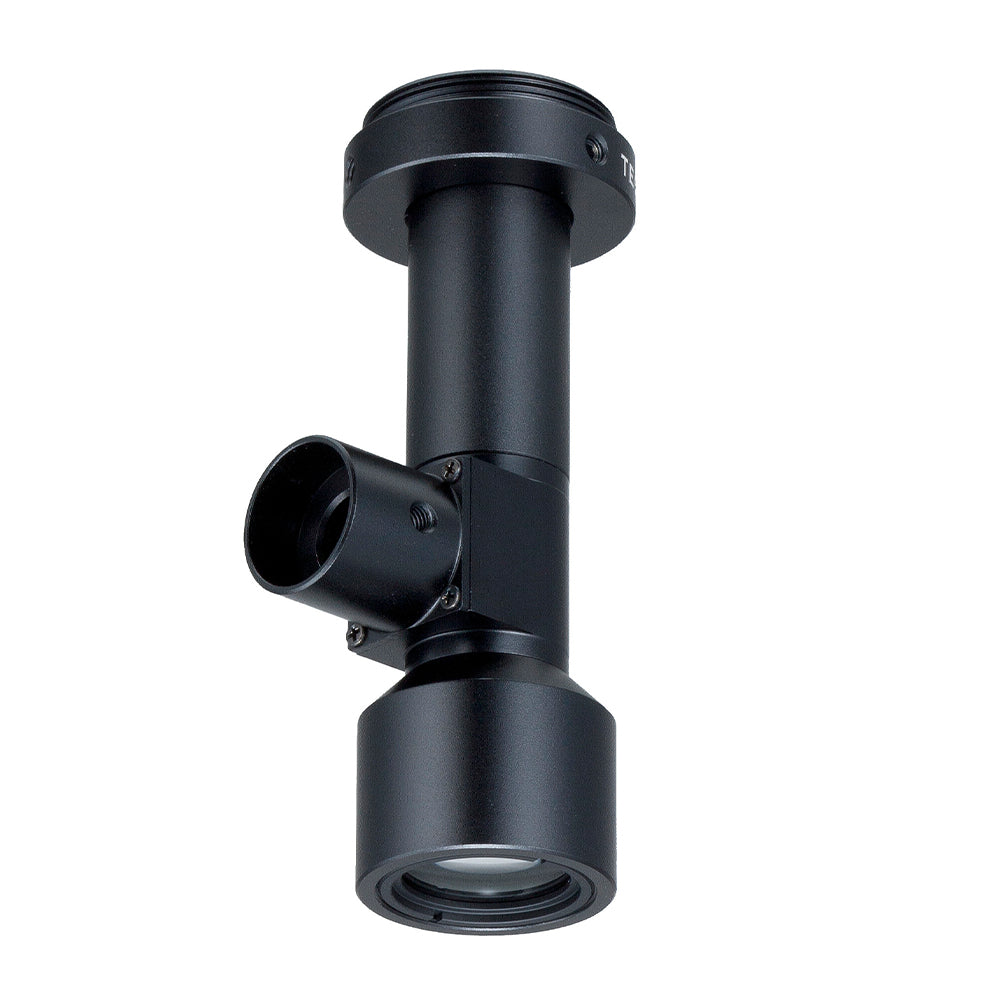

Computar TEC-M2065MPC 2/3″ f/12.8 Fixed Focal Length, Telecentric, Coaxial Lens

ComputarSKU: TEC-M2065MPC

Price:
Sale price$592.90 USD

Shipping calculated at checkout

Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

Computar TEC-M2065MPC

TEC-M Series Telecentric lenses from Computar offer high-resolution images with the lowest possible geometrical distortion.

  • Compatible with 2MP sensors on 2/3″ cameras
  • A wide variety of magnification options available (65mm WO - 0.5x, 0.8x, 1.0x, 2.0x, 4.0x, 6.0x, 110mm WO - 0.3x, 0.5x, 0.8x, 1.0x, 1.5x, 2.0x, 3.0x, 4.0x)
  • All include coaxial models except (65mm 4.0x, 6.0x and 110mm 3.0x, 4.0x)
  • Low TV distortion correction to the furthest corner (0.01 - 0.03s%)

TEC-M2065MPC Technical Specifications:

Product Line / Series TEC-M Series
Lens Type Fixed Focal Length, Telecentric, Coaxial
IP Rating Not Rated
Focal Length Telecentric
Working ƒ/N ƒ/12.8
Image Circle Diameter 11 mm
Imager Format 2/3″
Light Spectrum Visible
Resolution (MP) 2
Resolution (Pixel Size) 4.4 μm
Weight 55
Mount C-Mount
Filter Thread No Filter Threads
Minimum Object Distance 65.4 mm
Magnification
Depth Of Field 0.26 mm
Front Diameter Not Specified
Rear Effective Diameter Not Specified
Focus Control None
Iris Control None
Zoom Control None
Focus Range Not Specified
Back Focal Length 17 mm
Zoom Range Fixed
Operating Temperature Range -10 to +50 °C
Dimensions 25 × 25 × 77.4 mm
TV Distortion (%) 0.02
