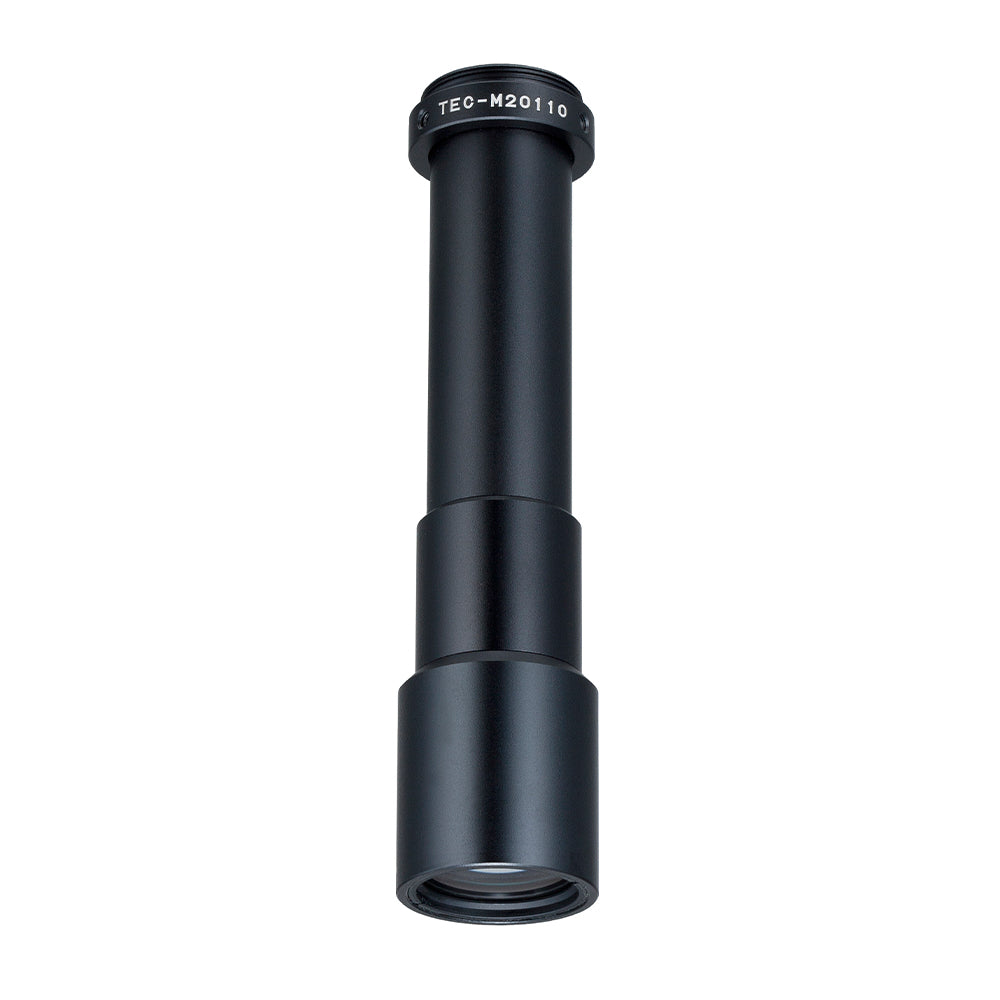

Computar TEC-M20110MP
TEC-M Series Telecentric lenses from Computar offer high-resolution images with the lowest possible geometrical distortion.
- Compatible with 2MP sensors on 2/3″ cameras
- A wide variety of magnification options available (65mm WO - 0.5x, 0.8x, 1.0x, 2.0x, 4.0x, 6.0x, 110mm WO - 0.3x, 0.5x, 0.8x, 1.0x, 1.5x, 2.0x, 3.0x, 4.0x)
- All include coaxial models except (65mm 4.0x, 6.0x and 110mm 3.0x, 4.0x)
- Low TV distortion correction to the furthest corner (0.01 - 0.03s%)
TEC-M20110MP Technical Specifications:
Product Line / Series | TEC-M Series |
Lens Type | Fixed Focal Length, Telecentric |
IP Rating | Not Rated |
Focal Length | Telecentric |
Working ƒ/N | ƒ/13 |
Image Circle Diameter | 11 mm |
Imager Format | 2/3″ |
Light Spectrum | Visible |
Resolution (MP) | 2 |
Resolution (Pixel Size) | 4.5 μm |
Weight | 113 |
Mount | C-Mount |
Filter Thread | No Filter Threads |
Minimum Object Distance | 110.9 mm |
Magnification | 2× |
Depth Of Field | 0.27 mm |
Front Diameter | Not Specified |
Rear Effective Diameter | Not Specified |
Focus Control | None |
Iris Control | None |
Zoom Control | None |
Focus Range | Not Specified |
Back Focal Length | 17 mm |
Zoom Range | Fixed |
Operating Temperature Range | -10 to +50 °C |
Dimensions | 30 × 30 × 126.4 mm |
TV Distortion (%) | -0.019 |
