Computar MLM3X-MP 15.5 - 20.4 mm 2/3″ f/4.5 - f/22 Zoom, Macro Lens

ComputarSKU: MLM3X-MP

Price:
Sale price$457.10 USD

Shipping calculated at checkout

Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

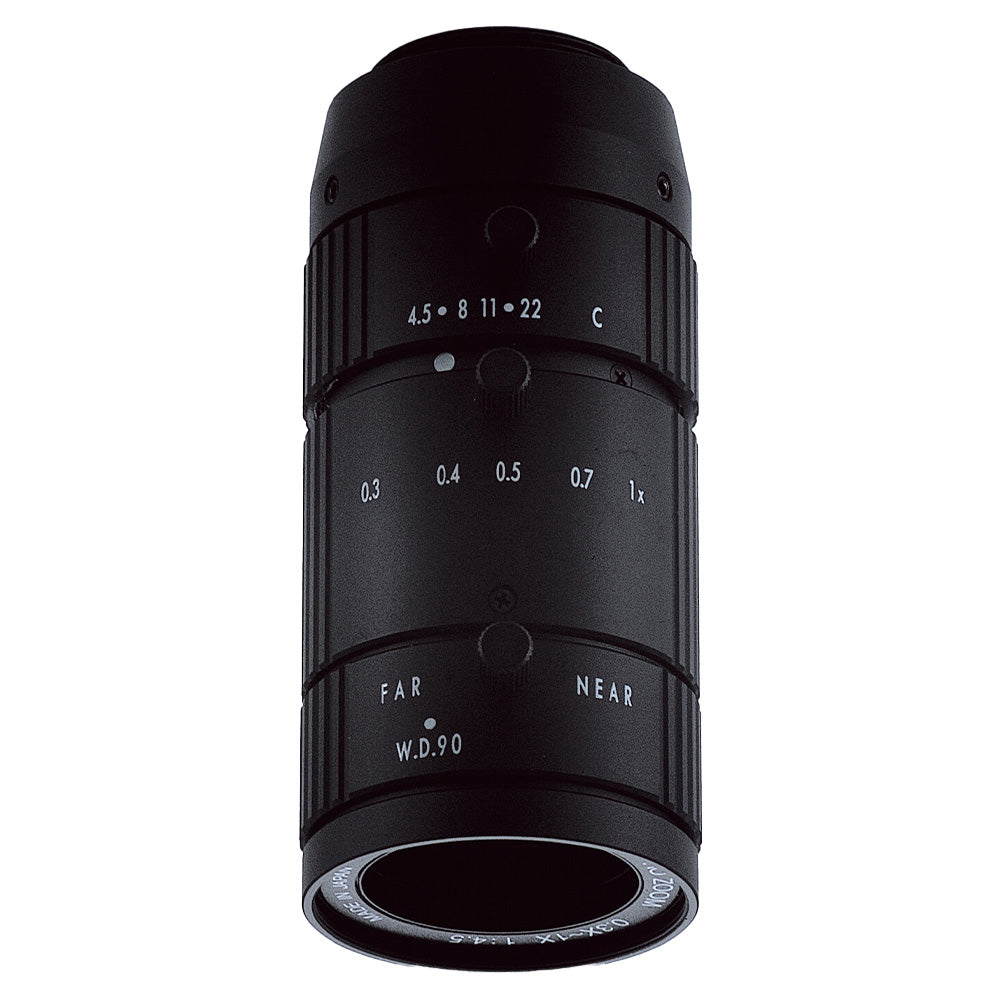

Computar MLM3X-MP

Computar Macro Vision Lens Series has a dedicated design emphasis on the performance of close-up applications required in factory automation and image processing areas.

  • 1/2″ and 2/3″ sensor compabatility.
  • Usable for a variety of inspection applications.
  • Variable working distances.
  • Suitable for megapixel imagers with a highly versatile 3.3x magnification type.
  • Compactly designed to allow use in small spaces.
  • Low Distortion, even in peripheral areas.
  • Robust design with built-in locking mechanisms for focus and iris.

MLM3X-MP Technical Specifications:

Product Line / Series Macro Zoom Series
Lens Type Zoom, Macro
IP Rating Not Rated
Focal Length 15.5 - 20.4 mm
ƒ/N ƒ/4.5 - ƒ/22
Image Circle Diameter 11 mm
Image Size Dimensions 8.8 mm x 6.6 mm
Imager Format 2/3″
Light Spectrum Visible
Resolution (MP) 1.5
Resolution (Pixel Size) Not Specified
Weight 150
Mount C-Mount
Filter Thread M34 -0.5
Minimum Object Distance Not Specified
Magnification Not Specified
Depth Of Field Not Specified
Front Diameter 15.5 mm
Rear Effective Diameter 7 mm
Focus Control Manual
Iris Control Manual
Zoom Control Manual
Focus Range Not Specified
Back Focal Length Not Specified
Zoom Range 15.5 mm - 20.4 mm
Operating Temperature Range Not Specified
Dimensions 36.5 × 36.5 × 79.5 mm
AOV @ 1/3″ H°×V°×D° 8.48 × 6.38 × 10.70° 2.18 × 1.64 × 2.72°
AOV @ 2/3″ H°×V°×D° 11.80 × 8.74 × 14.88° 2.78 × 2.24 × 2.84°
