Computar M5018-MP2 50 mm 2/3″ f/1.8 - f/16 Fixed Focal Length Lens

ComputarSKU: M5018-MP2

Price:
Sale price$157.10 USD

Shipping calculated at checkout

Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

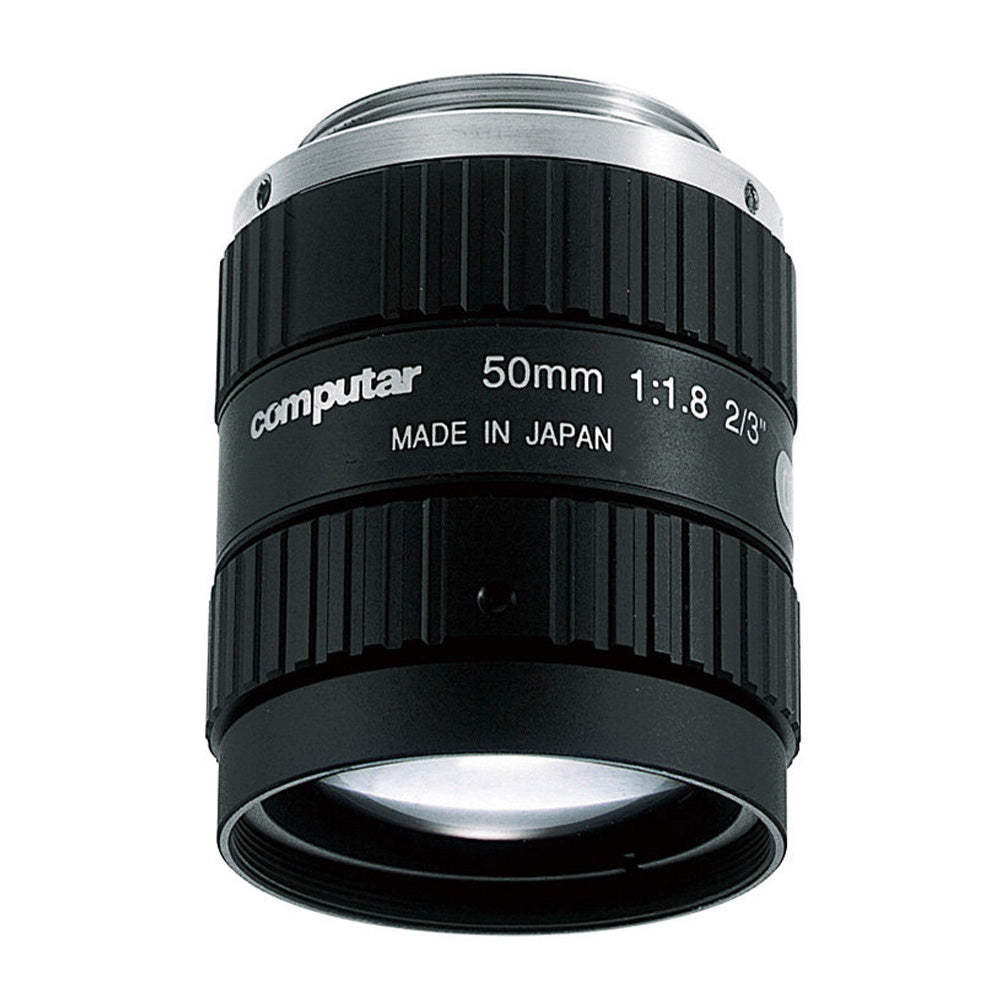

Computar M5018-MP2

The MP2 Machine Vision lenses are engineered for maximum performance in close-up applications required in factory automation, robotics, and image processing areas.

These lenses provide high-performance optics with common focal lengths for maximum application flexibility. Ideal for Industrial Machine Vision and Intelligent Traffic Systems.

  • Ultra-low distortion
  • Higher relative illumination rate
  • Captures full resolution of megapixel cameras
  • Assured excellent light intensity even in peripheral areas
  • High contrast and sharp picture in all areas of the screen
  • Compact design
  • Locking set screws for focus and iris

M5018-MP2 Technical Specifications:

Product Line / Series MP2
Lens Type Fixed Focal Length
IP Rating Not Rated
Focal Length 50 mm
ƒ/N ƒ/1.8 - ƒ/16
Image Circle Diameter 11 mm
Image Size Dimensions 8.8 mm x 6.6 mm
Imager Format 2/3″
Light Spectrum Visible
Resolution (MP) 1.5
Resolution (Pixel Size) Not Specified
Weight 85
Mount C-Mount
Filter Thread M30.5-0.5
Minimum Object Distance 500 mm
Magnification Not Specified
Depth Of Field Not Specified
Front Diameter 25.5 mm
Rear Effective Diameter 9.6 mm
Focus Control Manual
Iris Control Manual
Zoom Control None
Focus Range 0.5 m - ∞
Back Focal Length 13.1 mm
Zoom Range Fixed
Operating Temperature Range -10 to +50 °C
Dimensions 33.5 × 33.5 × 38.2 mm
AOV @ 1/2″ H°×V°×D° 7.6 × 5.7 × 9.5°
AOV @ 2/3″ H°×V°×D° 10.5 × 7.9 × 13.1°
