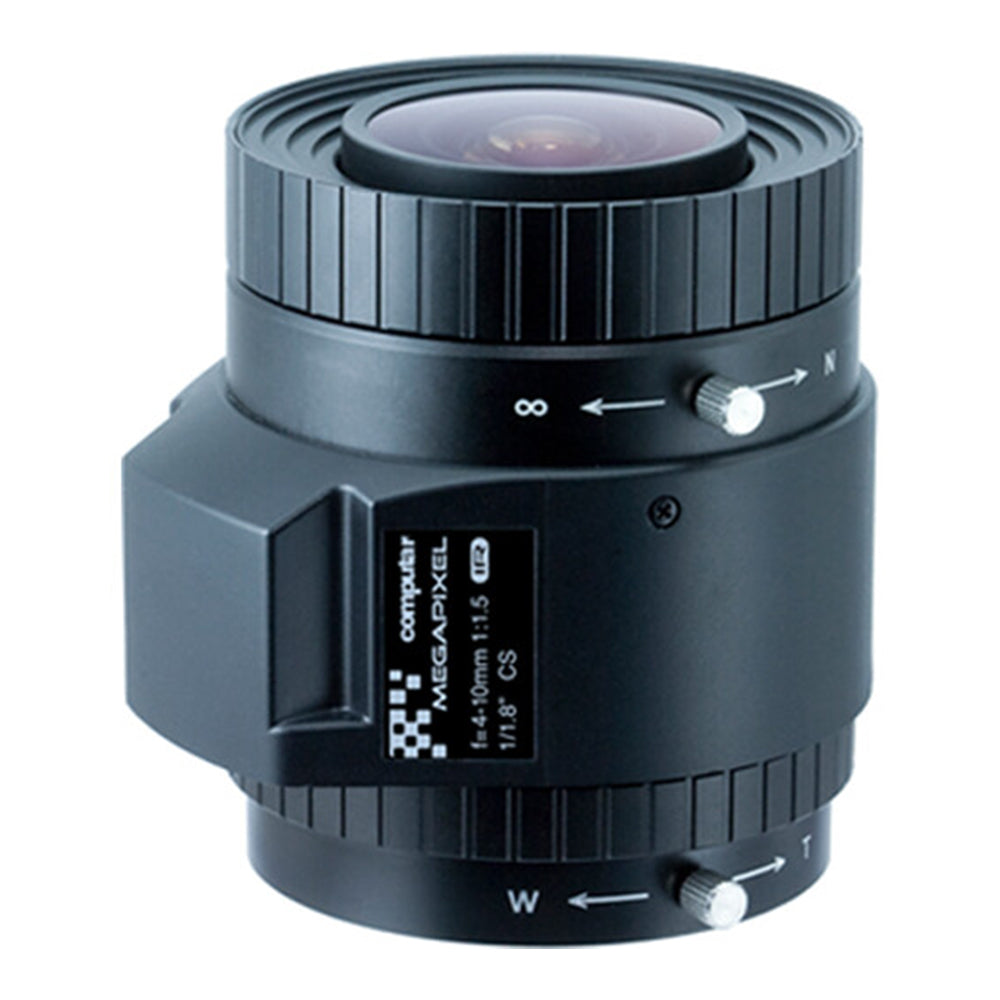

Computar EG3Z0409FCS-MPWIR 4 - 10 mm 1/1.8″ f/0.9 - f/360 Variable Focal Length Lens

Save $269.00
ComputarSKU: EG3Z0409FCS-MPWIR

Price:
Sale price$514.00 USD Regular price$783.00 USD

Shipping calculated at checkout

Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us.

Description

This price includes tariffs, based on the applicable tariff charges. This change is effective originally as of 5/15/25. Updated 5/16/25, 6/24/25, 9/02/25, 10/20/25. Pricing is subject to change and may fluctuate.

This price includes tariffs, based on the applicable tariff charges. This change is effective originally as of 05/15/2025. Updated 05/16/2025 Pricing is subject to change and may fluctuate.

Computar EG3Z0409FCS-MPWIR

4K 5 MP Variable Focal Length Lenses from Computar support several security applications with IR-corrected designs, minimizing focus shift at near-infrared wavelengths. Various options are available for iris control to suit your needs.

  • Ultra high-resolution 5MP and 8MP
  • High performance from center to the edge, best match for multi-ROI
  • Day & Night design, minimizing focus shift at NIR.
  • Various lineups from wide 2.8mm to tele 50mm.

EG3Z0409FCS-MPWIR Technical Specifications:

Product Line / Series 4K 5 MP Variable Focal Length Series
Lens Type Variable Focal Length
IP Rating Not Specified
Focal Length 4 - 10 mm
ƒ/N ƒ/0.9 - ƒ/360
Image Circle Diameter 8.9 mm
Image Size Dimensions 7.1 mm x 5.4 mm
Imager Format 1/1.8″
Light Spectrum Visible, NIR
Resolution (MP) 8
Resolution (Pixel Size) Not Specified
Weight 384
Mount CS-Mount
Filter Thread No Filter Threads
Minimum Object Distance 1000 mm
Magnification 2.5×
Depth Of Field Not Specified
Front Diameter 33.9 mm
Rear Effective Diameter 10.7 mm
Focus Control Manual
Iris Control DC Auto-iris
Zoom Control None
Focus Range Not Specified
Back Focal Length 8.01 mm
Zoom Range Fixed
Operating Temperature Range -20 to +60 °C
Dimensions 63.5 × 63.5 × 77.9 mm
AOV @ 1/1.8″ (16:9) H°×V°×D° 120.1 × 62.1 × 147.8° 46.3 × 25.9 × 53.3°
AOV @ 1/1.8″ (4:3) H°×V°×D° 107.6 × 77.2 × 147.8° 42.4 × 31.7 × 53.3°
