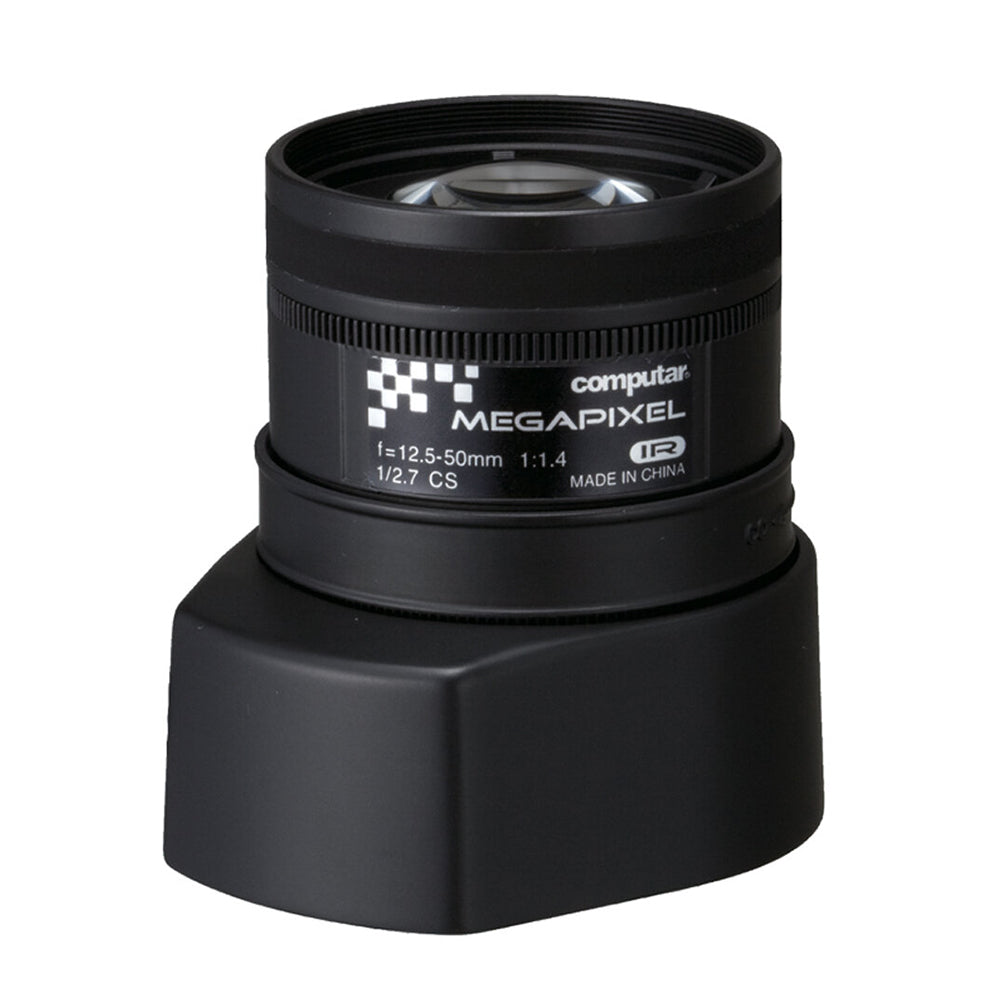

Computar AG4Z1214FCS-MPIR 12.5 - 50 mm 1/2.7″ f/1.4 - f/360 Variable Focal Length Lens

ComputarSKU: AG4Z1214FCS-MPIR

Price:
Sale price$200.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

Computar AG4Z1214FCS-MPIR

The 3 MP Series Varifocal IR lenses were engineered for compatibility with the most common 1/2.7″ and 1/3″ Megapixel camera sensors. The unique optical design assures optimal performance with HD Megapixel camera applications and is available in Manual, DC Auto-Iris, and P-Iris models.

Purple Fringe Correction

Precisely engineering the lens elements and the unique optical design eliminates the chromatic aberration known as “Purple Fringe” - especially in strong backlight situations.

3 Megapixel Varifocal

Designed to capture precise detail in critical security applications. High-quality optics maximize performance with 3-megapixel camera sensors.

Full HD Format

By enlarging the image circle design, this series is fully compatible with 720p and 1080p 16:9 format image sensors and the standard format 4:3 sensors.

Precise Focus Adjustment

The focus mechanism has been redesigned to allow more precise focus control. The focus ring rotates a full 180 degrees, allowing enhanced fine-tuning.

IR Corrected Optics

Designed specifically for true day/night cameras to deliver HD Megapixel resolution in both day and night modes even when IR illumination up to 950 nm is deployed.

Corner Brightness

The advanced optical design provides for exceptional brightness in the corners of the image, enhancing overall picture quality and sharpness throughout the image plane.

AG4Z1214FCS-MPIR Technical Specifications:

Product Line / Series 3 MP Series
Lens Type Variable Focal Length
IP Rating Not Specified
Focal Length 12.5 - 50 mm
ƒ/N ƒ/1.4 - ƒ/360
Image Circle Diameter 6.6 mm
Image Size Dimensions 3.2 mm x 5.8 mm
Imager Format 1/2.7″
Light Spectrum Visible, NIR
Resolution (MP) 3
Resolution (Pixel Size) Not Specified
Weight 83
Mount CS-Mount
Filter Thread M40.5-0.5
Minimum Object Distance 1000 mm
Magnification
Depth Of Field Not Specified
Front Diameter 21.7 mm
Rear Effective Diameter 9.1 mm
Focus Control Manual
Iris Control DC Auto Iris
Zoom Control Manual
Focus Range 1 m - ∞
Back Focal Length 7.3 mm
Zoom Range 12.5 mm - 50 mm
Operating Temperature Range -10 to +50 °C
Dimensions 46 × 60 × 58.2 mm
AOV @ 1/2.7″ (16:9) H°×V°×D° 26.3 × 14.5 × 30.3° 6.7 × 3.8 × 7.7°
AOV @ 1/2.7″ (4:3) H°×V°×D° 24.0 × 17.8 × 30.3° 6.2 × 4.7 × 7.7°
AOV @ 1/3″ (4:3) H°×V°×D° 21.7 × 16.2 × 27.4° 5.6 × 4.3 × 7.0°
