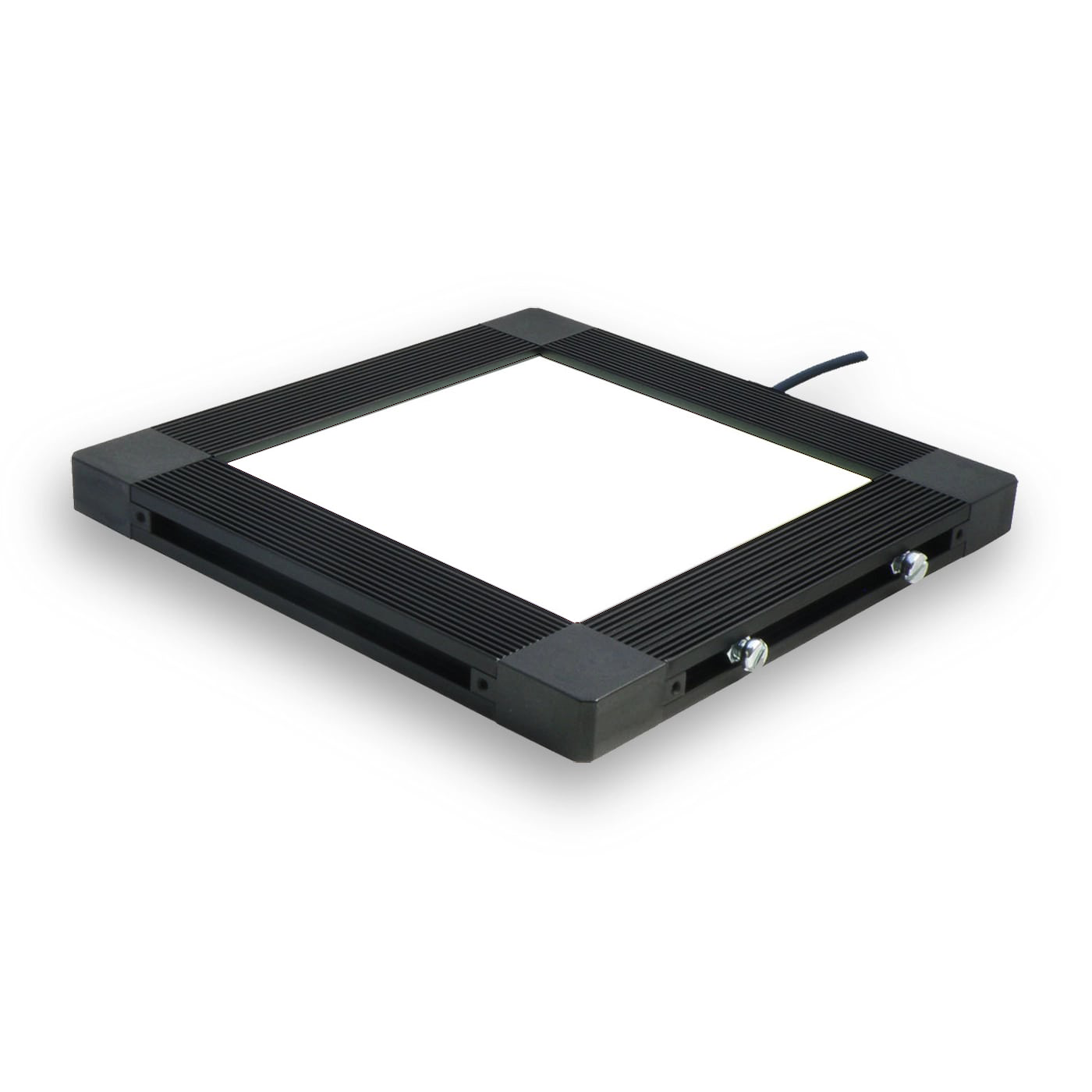

BX1010-WHII3S EdgeLit BackLight, WHITE, 10 in x 10 in, ICS 3S (I3S) Driver

Advanced IlluminationSKU: BX1010-WHII3S
Lead Time: 2 Weeks

Price:
Sale price$1,815.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

Edge-Lit Backlights - BX Series

BX1010-WHII3S Specifications:

Brand Advanced Illumination
Series BX
Wavelength WHI
Color White
Driver I3S
Ingress Protection IP50
Length 10 in
Width 10 in
Weight 2093g
Can Be Strobed Yes
Can Be Overdrive Strobed Yes
Can Be Constantly On Yes
Can Be Dimmed Dimmable
Connection 2M Flying Lead

Full Description

The BX series of Edge-lit Backlights are characterized by their high brightness and low heat output.

Available in the most common wavelengths. Also available with an optional polarizer.

Expandable sizes up to 24� X 24� (610mm) in increments of 1� (25mm).

This series comes with LB111 Mounting Brackets.

General Specs

Electrical Specifications

625 - 0.062A Per Square Inch Max

455, 530, WHI - 0.103A Per Square Inch Max

850 - 0.050A Per Square Inch Max

Normal Operating Temperature 0-60°C
Weight 4" X 4" unit - 560.6g (19.78oz)
Standard Cable Information 2 M long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain.
Photobiological Risk Factor Exempt Applicable Wavelengths: 850
Group 1 (Low-Risk) Applicable Wavelengths: 455, 530, 625, WHI
Compliance CE, RoHS, IEC 62471
IP Rating IP50
Lumen Maintenance L70 = 50,000 Hours



Available Wavelengths

Wavelength
Color
Description
WHITE
Advanced Illumination White Lights
WHITE
455
455nm Royal Blue
530
Advanced Illumination 530nm Green Light
530nm Green
625
Advanced Illumination 625nm Red Orange Light
625nm Red Orange
850
Advanced Illumination 850nm Infra-Red (IR) Light
850nm Infra-Red (IR)

Additional Wavelengths are available upon request by contacting Machine Vision Direct.

Mechanical Specs

 BX Series Edge-Lit Backlights Mechanical Specs | Advanced Illumination



Optical Specs

 BX Series Edge-Lit Backlights Optical Specs | Advanced Illumination


Electrical Specs


BX Series Edge-Lit Backlights Electrical Specs | Advanced Illumination

Control Specs


BX Series Edge-Lit Backlights Control Specs | Advanced Illumination



Part No Key

 BX Series Edge-Lit Backlights Part No Key | Advanced Illumination

Advanced Illumination BX1010-WHII3S Downloads:

Advanced Illumination BX1010-WHII3S Datasheet | Machine Vision Direct
Advanced Illumination BX1010-WHII3S CAD PDF | Machine Vision Direct
Advanced Illumination BX1010-WHII3S CAD DXF | Machine Vision Direct
Advanced Illumination BX1010-WHII3S CAD STEP MODEL | Machine Vision Direct
