Description

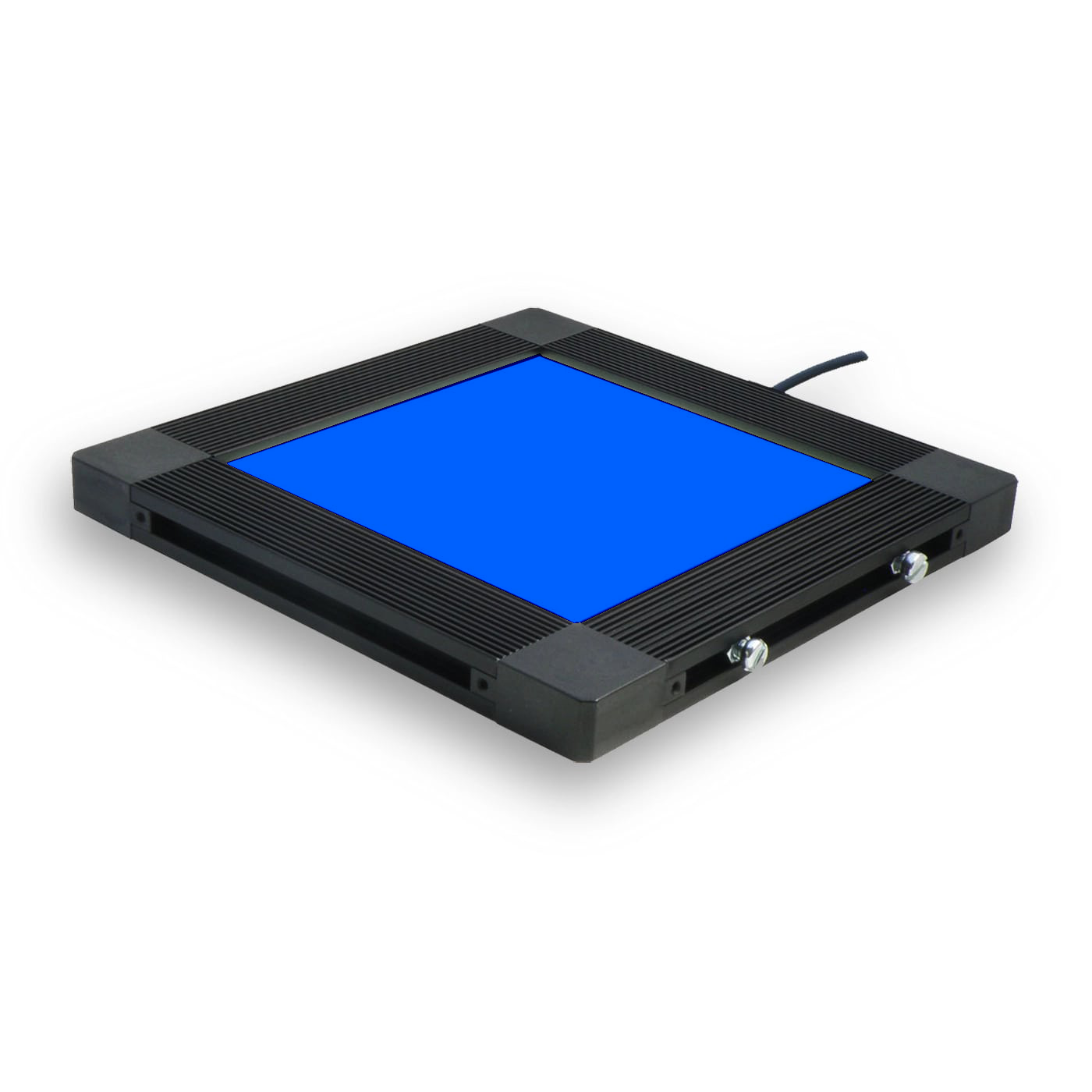

Edge-Lit Backlights - BX Series
BX1010-455I3S Specifications:
Brand | Advanced Illumination |
Series | BX |
Wavelength | 455 |
Color | Royal Blue |
Driver | I3S |
Ingress Protection | IP50 |
Length | 10 in |
Width | 10 in |
Weight | 2093g |
Can Be Strobed | Yes |
Can Be Overdrive Strobed | Yes |
Can Be Constantly On | Yes |
Can Be Dimmed | Dimmable |
Connection | 2M Flying Lead |
Full Description
The BX series of Edge-lit Backlights are characterized by their high brightness and low heat output.
Available in the most common wavelengths. Also available with an optional polarizer.
Expandable sizes up to 24� X 24� (610mm) in increments of 1� (25mm).
This series comes with LB111 Mounting Brackets.
General Specs
Electrical Specifications |
625 - 0.062A Per Square Inch Max 455, 530, WHI - 0.103A Per Square Inch Max 850 - 0.050A Per Square Inch Max |
Normal Operating Temperature | 0-60°C |
Weight | 4" X 4" unit - 560.6g (19.78oz) |
Standard Cable Information | 2 M long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain. |
Photobiological Risk Factor |
Exempt Applicable Wavelengths: 850 Group 1 (Low-Risk) Applicable Wavelengths: 455, 530, 625, WHI |
Compliance | CE, RoHS, IEC 62471 |
IP Rating | IP50 |
Lumen Maintenance | L70 = 50,000 Hours |
Available Wavelengths
Wavelength |
Color |
Description |
WHITE |
![]() |
WHITE |
455 |
![]() |
455nm Royal Blue |
530 |
![]() |
530nm Green |
625 |
![]() |
625nm Red Orange |
850 |
![]() |
850nm Infra-Red (IR) |
Additional Wavelengths are available upon request by contacting Machine Vision Direct.
Mechanical Specs
![]() |
Optical Specs
![]() |
Electrical Specs
![]() |
Control Specs
![]() |
Part No Key
![]() |
