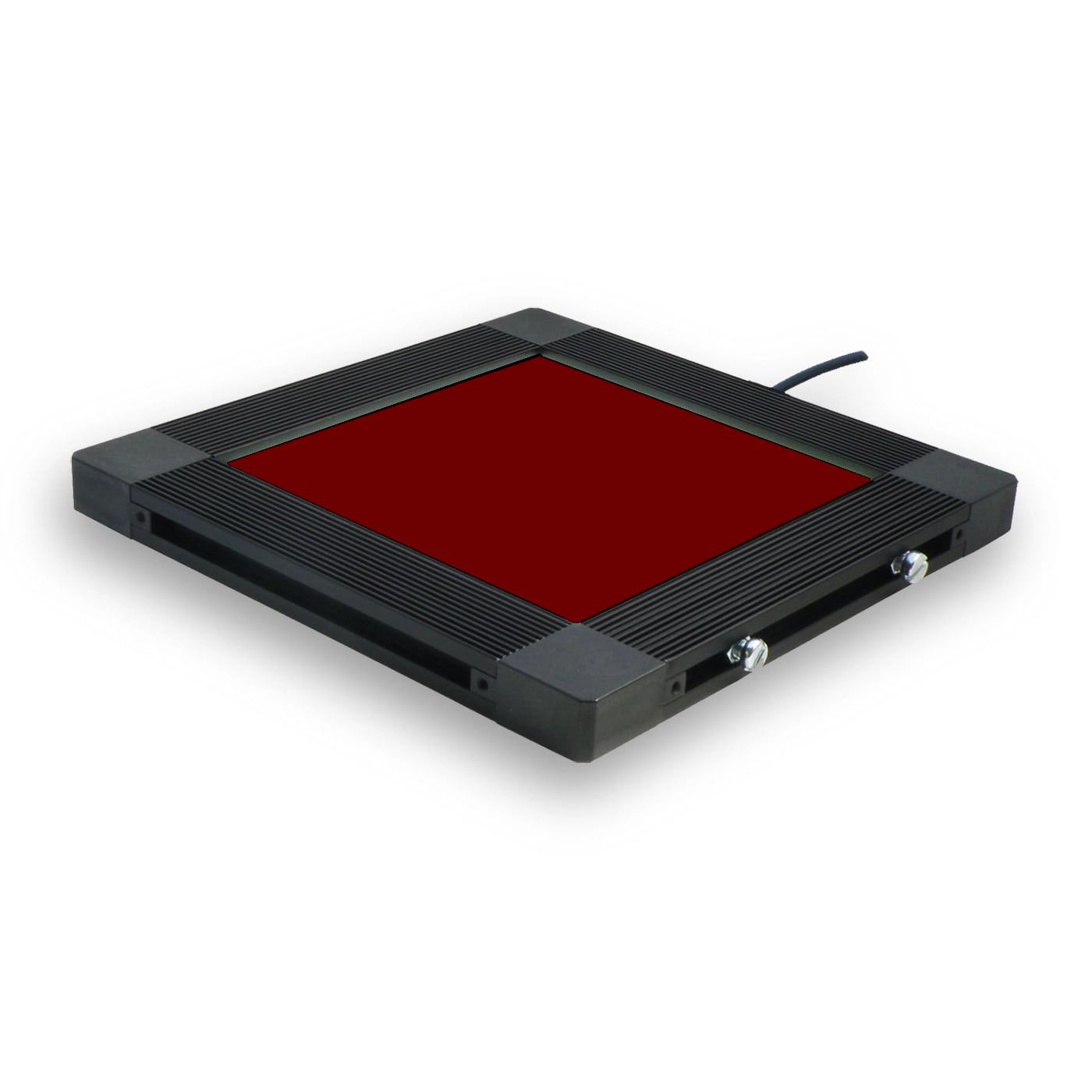

Edge-Lit Backlights - BX Series
|Can Be Strobed||Yes|
|Can Be Overdrive Strobed||Yes|
|Can Be Constantly On||Yes|
|Can Be Dimmed||Dimmable|
|Connection||2M Flying Lead|
The BX series of Edge-lit Backlights are characterized by their high brightness and low heat output.
Available in the most common wavelengths. Also available with an optional polarizer.
Expandable sizes up to 24� X 24� (610mm) in increments of 1� (25mm).
This series comes with LB111 Mounting Brackets.
625 - 0.062A Per Square Inch Max
455, 530, WHI - 0.103A Per Square Inch Max
850 - 0.050A Per Square Inch Max
|Normal Operating Temperature||0-60°C|
|Weight||4" X 4" unit - 560.6g (19.78oz)|
|Standard Cable Information||2 M long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain.|
|Photobiological Risk Factor||
Exempt Applicable Wavelengths: 850
Group 1 (Low-Risk) Applicable Wavelengths: 455, 530, 625, WHI
|Compliance||CE, RoHS, IEC 62471|
|Lumen Maintenance||L70 = 50,000 Hours|
||455nm Royal Blue|
||625nm Red Orange|
||850nm Infra-Red (IR)|
Additional Wavelengths are available upon request by contacting Machine Vision Direct.
Part No Key
Advanced Illumination BX0404 Downloads:
