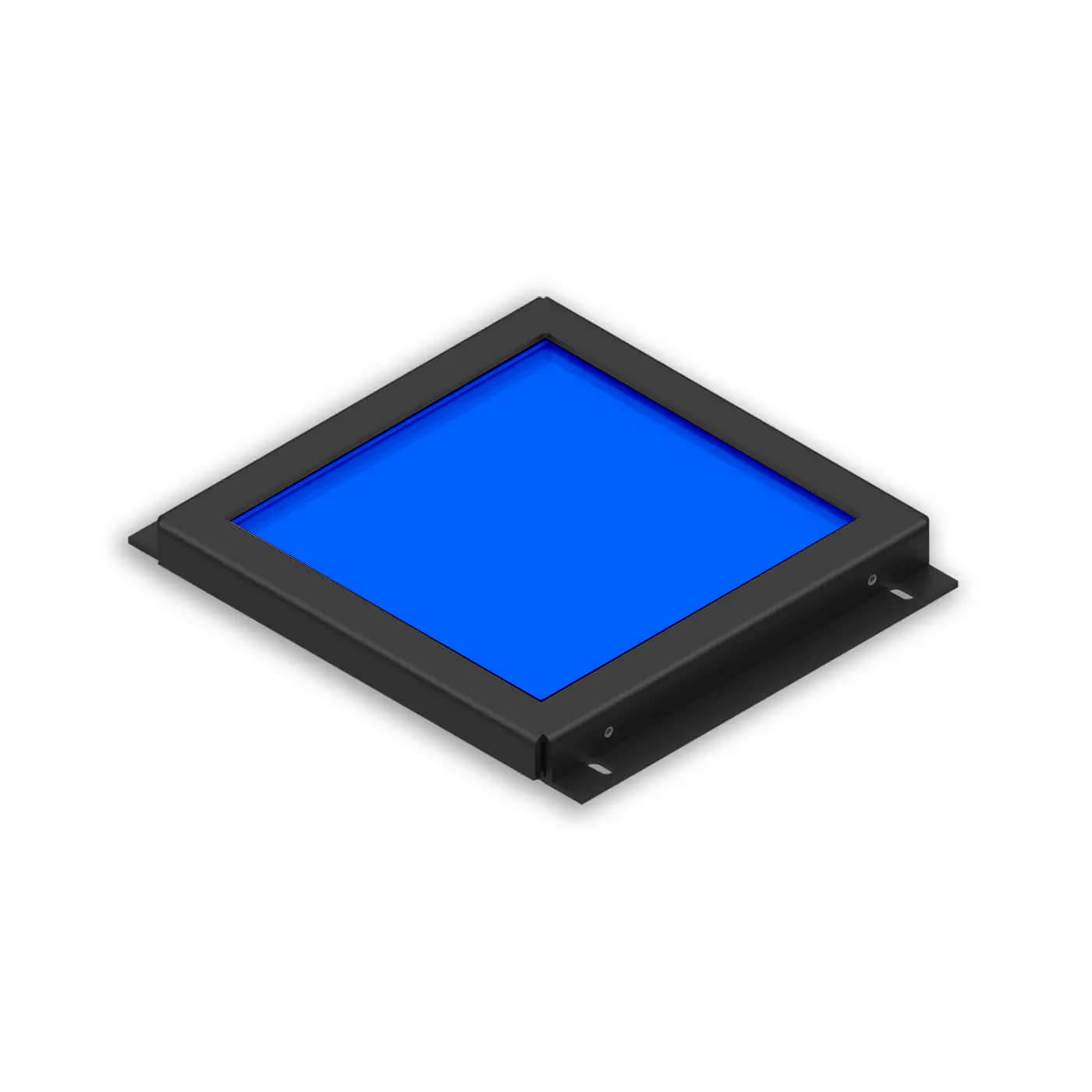

BT100100-455I3S MicroBrite BackLight, 455nm Royal Blue, 100 mm x 100 mm, ICS 3S (I3S) Driver

Advanced IlluminationSKU: BT100100-455I3S

Sale price$1,156.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us


MicroBrite Backlights - BT Series

BT100100-455I3S Specifications:

Brand Advanced Illumination
Series BT
Wavelength 455
Color Royal Blue
Driver I3S
Ingress Protection IP50
Length 100 mm
Width 100 mm
Weight 341g
Can Be Strobed Yes
Can Be Overdrive Strobed Yes
Can Be Constantly On Yes
Can Be Dimmed Dimmable
Connection 2M Flying Lead

Full Description

Part of the MicroBrite„¢ family of high performance, compact machine vision lights.

The edge-lit design provides the highest flux density of any backlight in our portfolio.

Ultra-thin profile for installations with demanding space limitations.

Available in 3 sizes with a multitude of available wavelengths.

Base Model numbers include BT050050, BT200100, BT100100

General Specs

Electrical Specifications

BT050050 - 0.13A Max

BT050050 - 0.18A Max

BT050050 - 0.075A Max

BT100100 - 0.32A Max

BT100100 - 0.44A Max

BT100100 - 0.45A Max

BT200100 - 0.67A Max

BT200100 - 0.92A Max

BT200100 - 0.45A Max

Normal Operating Temperature

0 - 60°

Weight BT050050 - 54.43g (1.92oz)
BT100100 - 195.04g (6.88oz)
BT200100 - 313.00g (11.04oz)
Standard Cable Information 2 m long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain.
Photobiological Risk Factor Exempt Applicable Wavelengths: 850
Group 1 (Low-Risk) Applicable Wavelengths: 455, 530, 625
Compliance CE, RoHS, IEC 62471
IP Rating IP50
Lumen Maintenance L70 = 50,000 Hours


Available Wavelengths

Advanced Illumination White Lights
455nm Royal Blue
Advanced Illumination 520nm Green Light
520nm Green
Advanced Illumination 625nm Red Orange Light
625nm Red Orange
Advanced Illumination 850nm Infra-Red (IR) Light
850nm Infra-Red (IR)

Additional Wavelengths are available upon request by contacting Machine Vision Direct.

Mechanical Specs

 BT Series MicroBrite Backlights Mechanical Specs | Advanced Illumination
BT Series MicroBrite Backlights Mechanical Specs | Advanced Illumination
BT Series MicroBrite Backlights Mechanical Specs | Advanced Illumination


Optical Specs

 BT Series MicroBrite Backlights Optical Specs | Advanced Illumination

Electrical Specs


BT Series MicroBrite Backlights Electrical Specs | Advanced Illumination

Control Specs

 BT Series MicroBrite Backlights Control Specs | Advanced Illumination


Part No Key

 BT Series MicroBrite Backlights Part No Key | Advanced Illumination

Advanced Illumination BT100100-455I3S Downloads:

Advanced Illumination BT100100-455I3S Datasheet | Machine Vision Direct
Advanced Illumination BT100100-455I3S CAD PDF | Machine Vision Direct
Advanced Illumination BT100100-455I3S CAD DXF | Machine Vision Direct
Advanced Illumination BT100100-455I3S CAD STEP MODEL | Machine Vision Direct
