Description

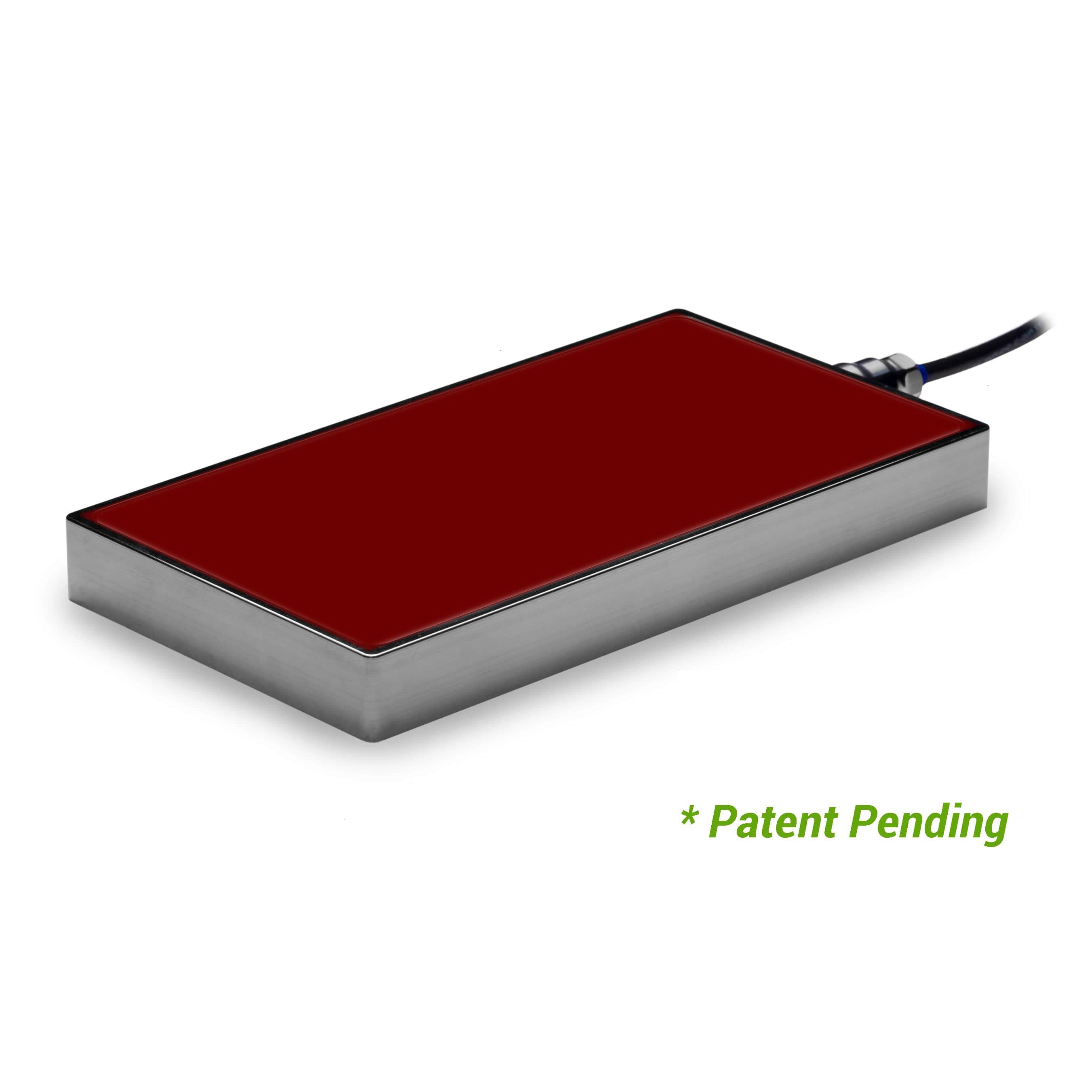

UltraSeal Backlights - BL245 Series
BL245-101088024 Specifications:
Brand | Advanced Illumination |
Series | BL245 |
Wavelength | 880 |
Color | Infra-Red (IR) |
Driver | 24 |
Ingress Protection | IP69K |
Length | 10 in |
Width | 10 in |
Weight | 1708g |
Can Be Strobed | No |
Can Be Overdrive Strobed | No |
Can Be Constantly On | Yes |
Can Be Dimmed | Not Dimmable |
Connection | 2M Flying Lead |
Full Description
Built for extreme environments, our IP69K certified lights are specifically engineered to withstand everything from prolonged liquid immersion to high-pressure steam cleaning.
Crevice-free design with smooth-bodied surfaces to diminish the chance of material buildup while improving its ease of cleaning.
Proprietary nickel finish for vastly improved corrosion protection and engineered with thermal management in mind “ housing is 11X more thermally conductive than stainless steel.
General Specs
Electrical Specifications | 0.03A Per Square Inch Max |
Normal Operating Temperature | 0-60°C |
Weight | 4" x 8" unit - 635g (22.4oz) |
Standard Cable Information | 2 M long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain. |
Photobiological Risk Factor |
Exempt Applicable Wavelengths: 880 Group 1 (Low Risk) Applicable Wavelengths: 470, 520, 660, WHI |
Compliance | CE, RoHS, IEC 62471 |
IP Rating | IP69K Certified |
Lumen Maintenance | L70 = 50,000 Hours |
Available Wavelengths
Wavelength |
Color |
Description |
WHITE | WHITE | |
470 | 470nm Blue | |
520 | 520nm Green | |
660 | 660nm Red | |
880 | 880nm Infra-Red (IR) |
Additional Wavelengths are available upon request by contacting Machine Vision Direct.
Mechanical Specs
Optical Specs
Electrical Specs
Control Specs
Part No Key
Advanced Illumination BL245-101088024 Downloads:
