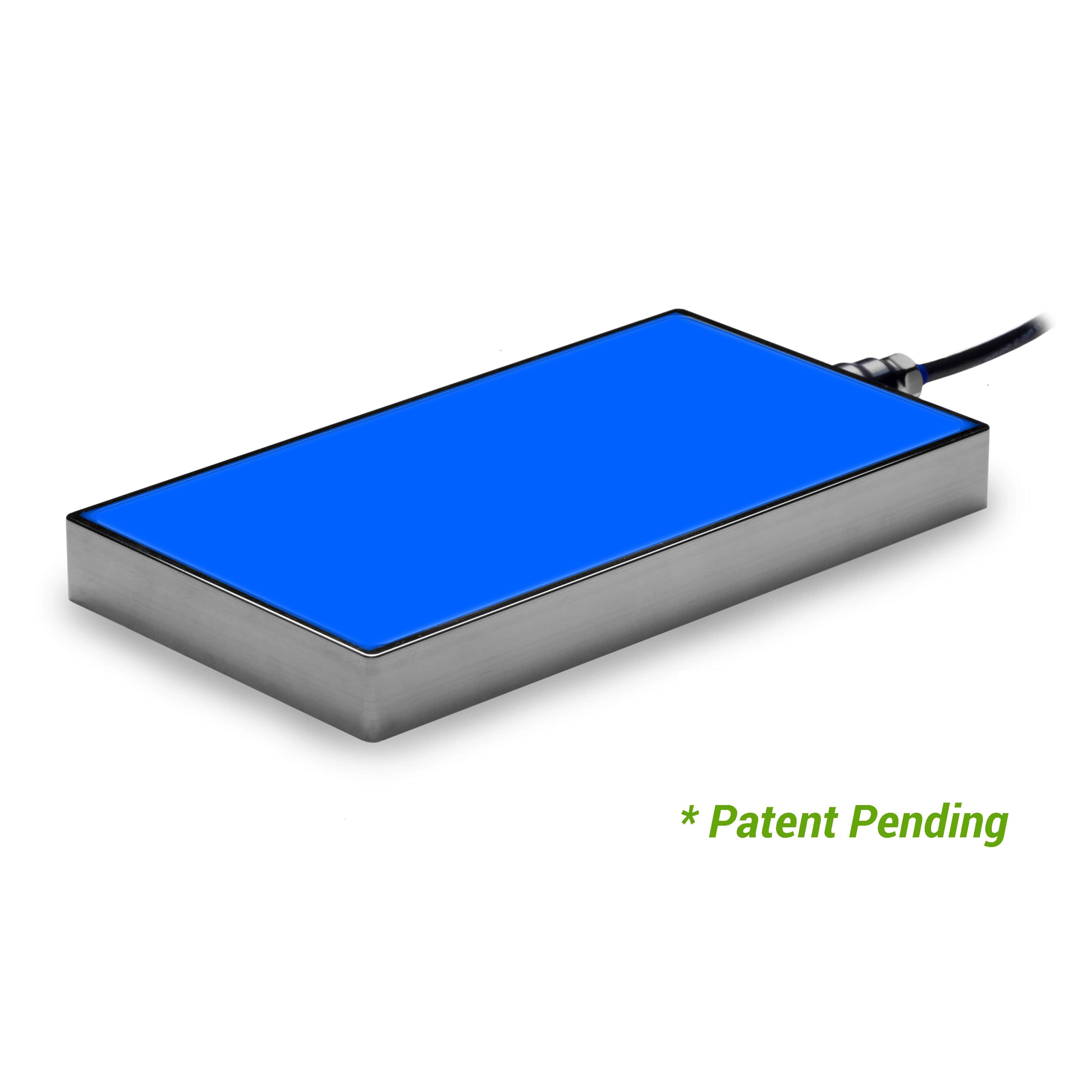

BL245-080847024SS UltraSeal BackLight, 470nm Blue, 08 in x 08 in, 24 Volt Driver

Advanced IlluminationSKU: BL245-080847024SS
Lead Time: 2 Weeks

Price:
Sale price$2,852.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

UltraSeal Backlights - BL245 Series

BL245-080847024SS Specifications:

Brand Advanced Illumination
Series BL245
Wavelength 470
Color Blue
Driver 24
Ingress Protection IP69K
Length 08 in
Width 08 in
Weight 1142g
Can Be Strobed No
Can Be Overdrive Strobed No
Can Be Constantly On Yes
Can Be Dimmed Not Dimmable
Connection 2M Flying Lead

Full Description

Built for extreme environments, our IP69K certified lights are specifically engineered to withstand everything from prolonged liquid immersion to high-pressure steam cleaning.

Crevice-free design with smooth-bodied surfaces to diminish the chance of material buildup while improving its ease of cleaning.

Proprietary nickel finish for vastly improved corrosion protection and engineered with thermal management in mind “ housing is 11X more thermally conductive than stainless steel.

General Specs

Electrical Specifications 0.03A Per Square Inch Max
Normal Operating Temperature 0-60°C
Weight 4" x 8" unit - 635g (22.4oz)
Standard Cable Information 2 M long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain.
Photobiological Risk Factor Exempt Applicable Wavelengths: 880
Group 1 (Low Risk) Applicable Wavelengths: 470, 520, 660, WHI
Compliance CE, RoHS, IEC 62471
IP Rating IP69K Certified
Lumen Maintenance L70 = 50,000 Hours



Available Wavelengths

Wavelength
Color
Description
WHITE
Advanced Illumination White Lights
WHITE
470
Advanced Illumination 470nm Blue Light
470nm Blue
520
Advanced Illumination 520nm Green Light
520nm Green
660
Advanced Illumination 660nm Red Light
660nm Red
880
Advanced Illumination 880nm Infra-Red (IR) Light
880nm Infra-Red (IR)

Additional Wavelengths are available upon request by contacting Machine Vision Direct.

Mechanical Specs


BL245 Mechanical Specs | Advanced Illumination



Optical Specs


BL245 Optical Specs | Advanced Illumination


Electrical Specs


BL245 Electrical Specs | Advanced Illumination


Control Specs


BL245 Control Specs | Advanced Illumination



Part No Key


BL245 Part No Key | Advanced Illumination


Advanced Illumination BL245-080847024SS Downloads:

Advanced Illumination BL245-080847024 Datasheet | Machine Vision Direct
Advanced Illumination BL245-080847024 CAD PDF | Machine Vision Direct
Advanced Illumination BL245-080847024 CAD DXF | Machine Vision Direct
Advanced Illumination BL245-080847024 CAD STEP MODEL | Machine Vision Direct
