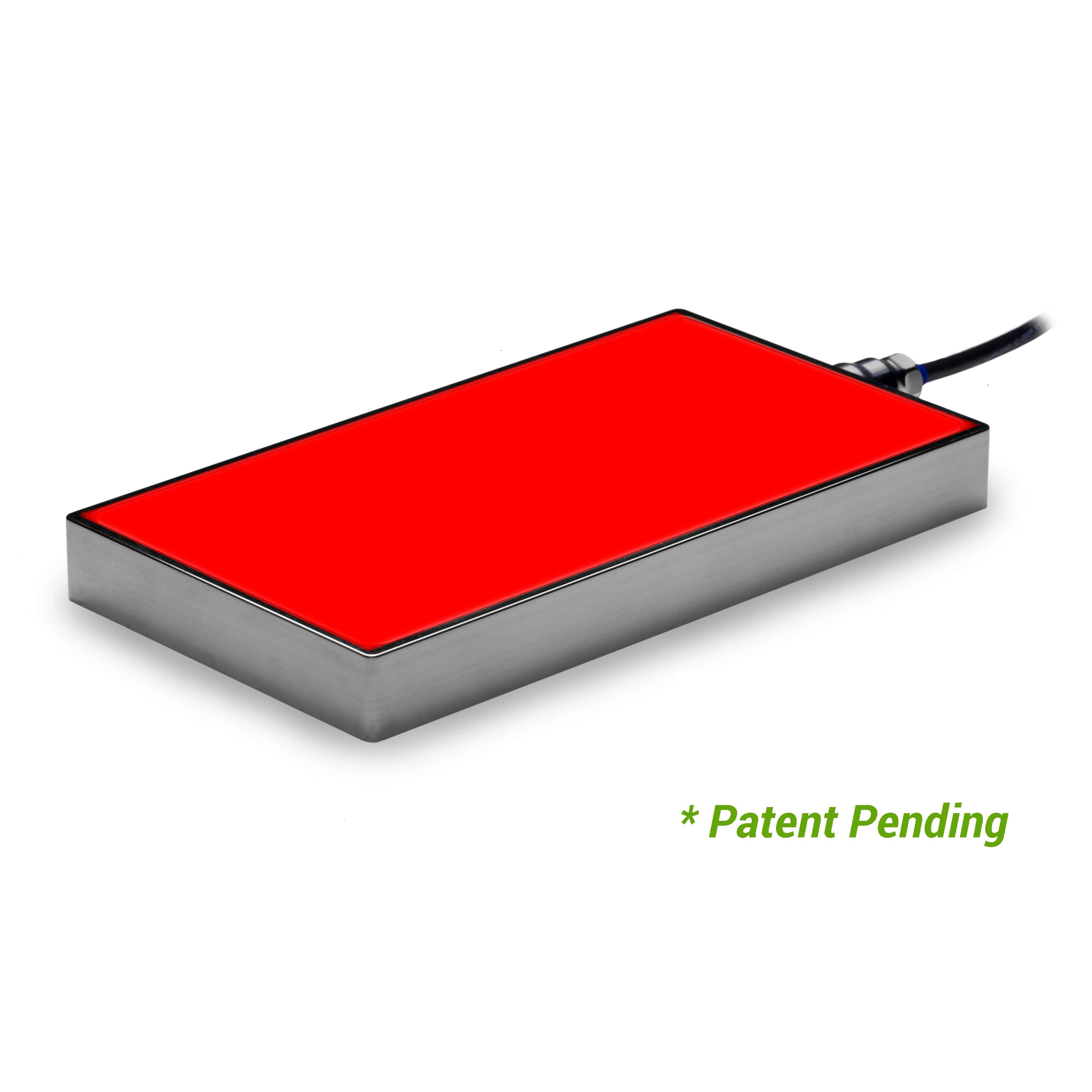

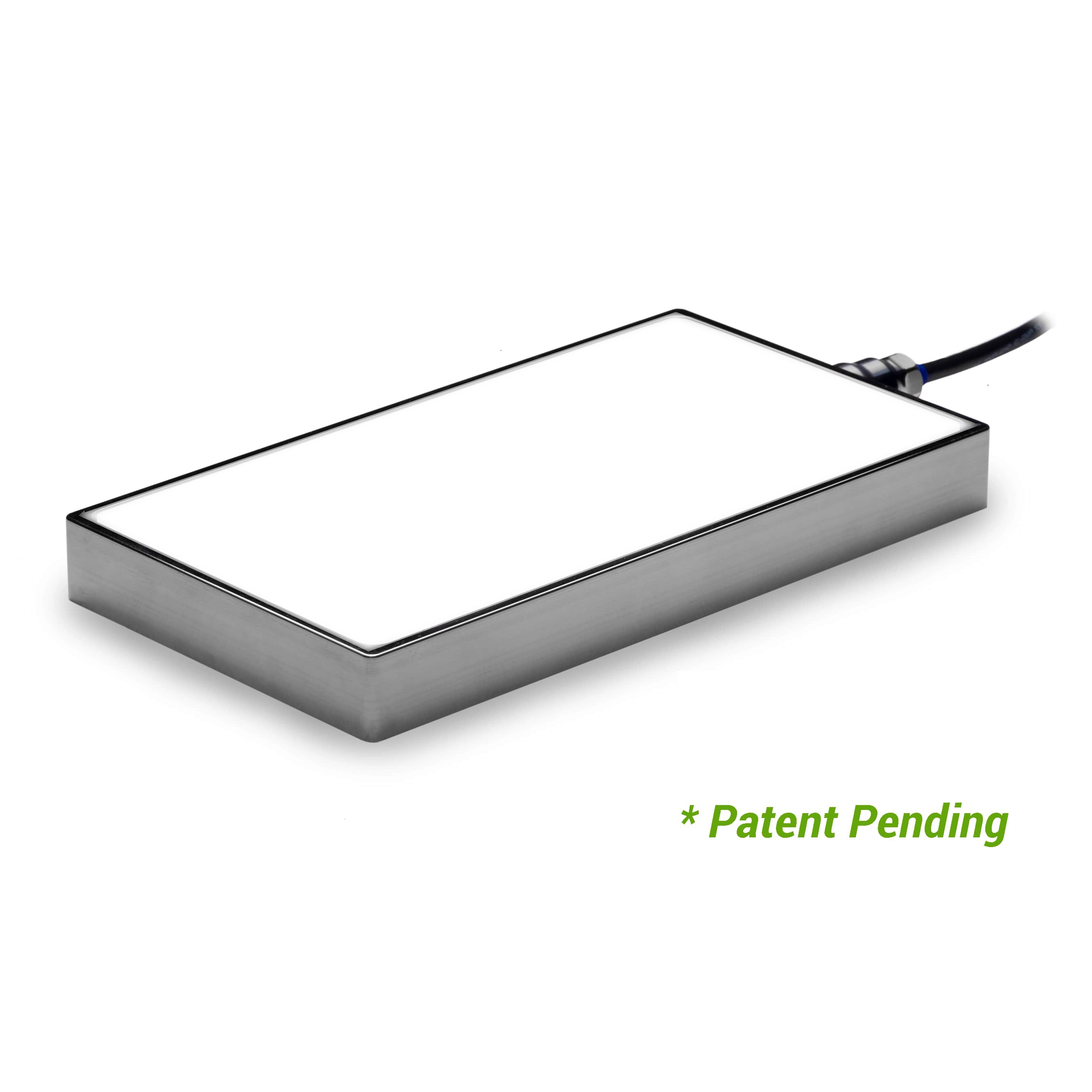

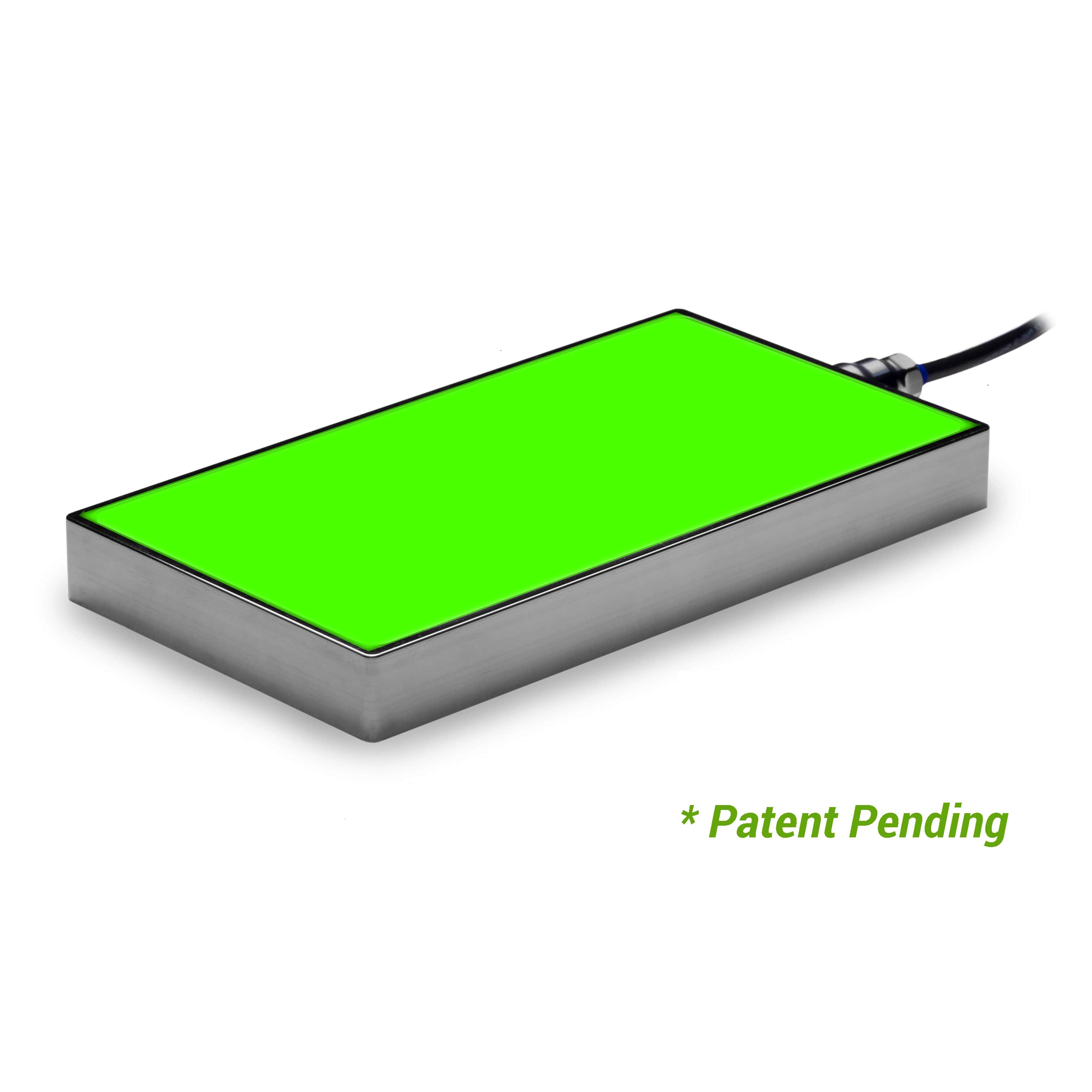

UltraSeal Backlights - BL245 Series
|Can Be Strobed||No|
|Can Be Overdrive Strobed||No|
|Can Be Constantly On||Yes|
|Can Be Dimmed||Not Dimmable|
|Connection||2M Flying Lead|
Built for extreme environments, our IP69K certified lights are specifically engineered to withstand everything from prolonged liquid immersion to high-pressure steam cleaning.
Crevice-free design with smooth-bodied surfaces to diminish the chance of material buildup while improving its ease of cleaning.
Proprietary nickel finish for vastly improved corrosion protection and engineered with thermal management in mind “ housing is 11X more thermally conductive than stainless steel.
|Electrical Specifications||0.03A Per Square Inch Max|
|Normal Operating Temperature||0-60°C|
|Weight||4" x 8" unit - 635g (22.4oz)|
|Standard Cable Information||2 M long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain.|
|Photobiological Risk Factor||
Exempt Applicable Wavelengths: 880
Group 1 (Low Risk) Applicable Wavelengths: 470, 520, 660, WHI
|Compliance||CE, RoHS, IEC 62471|
|IP Rating||IP69K Certified|
|Lumen Maintenance||L70 = 50,000 Hours|

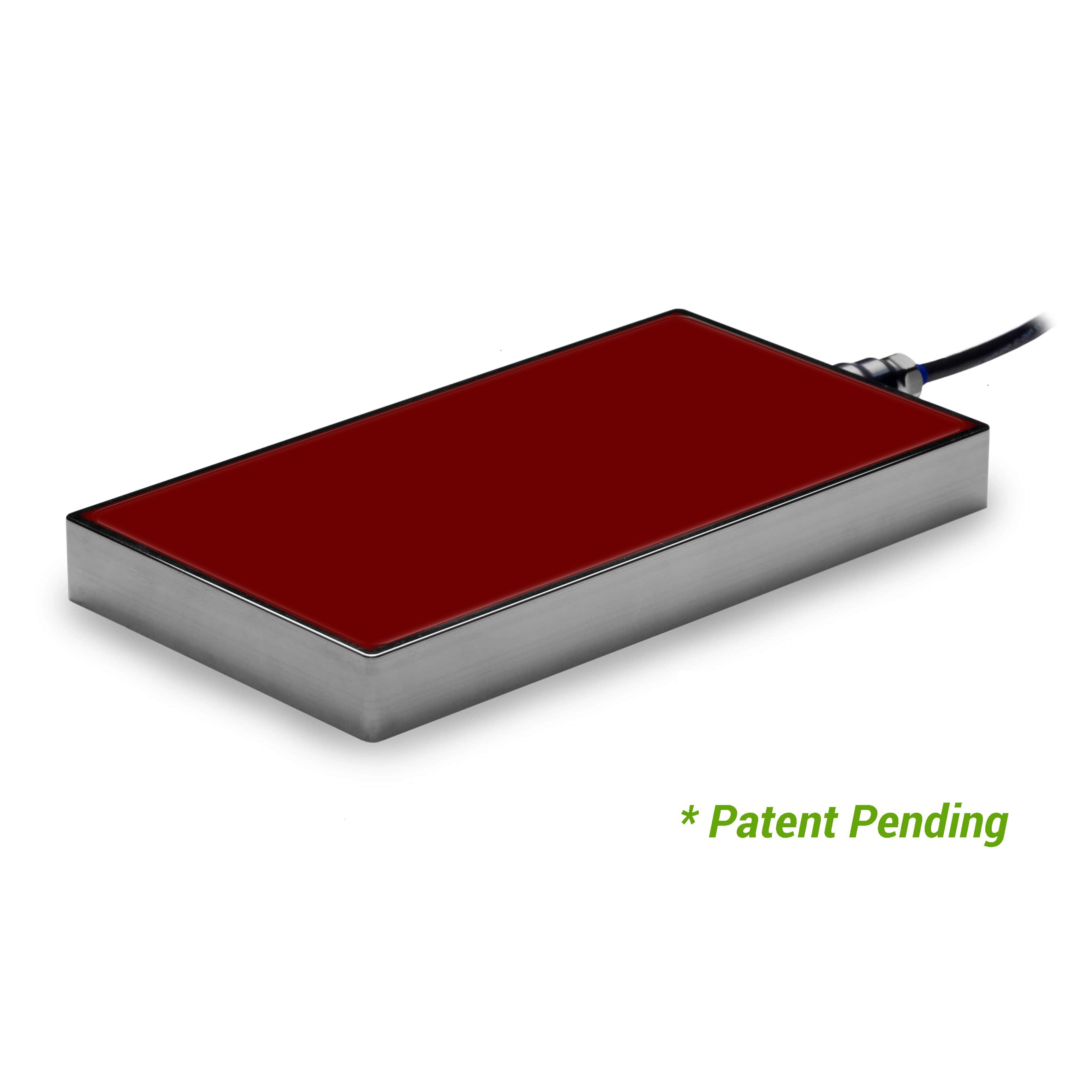

||880nm Infra-Red (IR)|
Additional Wavelengths are available upon request by contacting Machine Vision Direct.
Part No Key
Advanced Illumination BL245-0404 Downloads:
