BL2-0202-880I3S Backlit Back Light, 880nm Infra-Red (IR), 2 in x 2 in, ICS 3S (I3S) Driver

Advanced IlluminationSKU: BL2-0202-880I3S
Lead Time: 2 Weeks
Lead Time: 3 Business Days

Price:
Sale price$887.00 USD

Shipping calculated at checkout

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us.

Description

Back-lit Backlights - BL2 Series

BL2 lights are direct replacements for BL lights of the same SKU. BL2 lights have an increased output without an increased price.

BL20202-880I3S Specifications:

Brand Advanced Illumination
Series BL2
Wavelength 880
Color Infra-Red (IR)
Driver I3S
Ingress Protection IP50
Length 02 in
Width 02 in
Weight 305g
Can Be Strobed Yes
Can Be Overdrive Strobed Yes
Can Be Constantly On Yes
Can Be Dimmed Dimmable
Connection 2M Flying Lead

Full Description

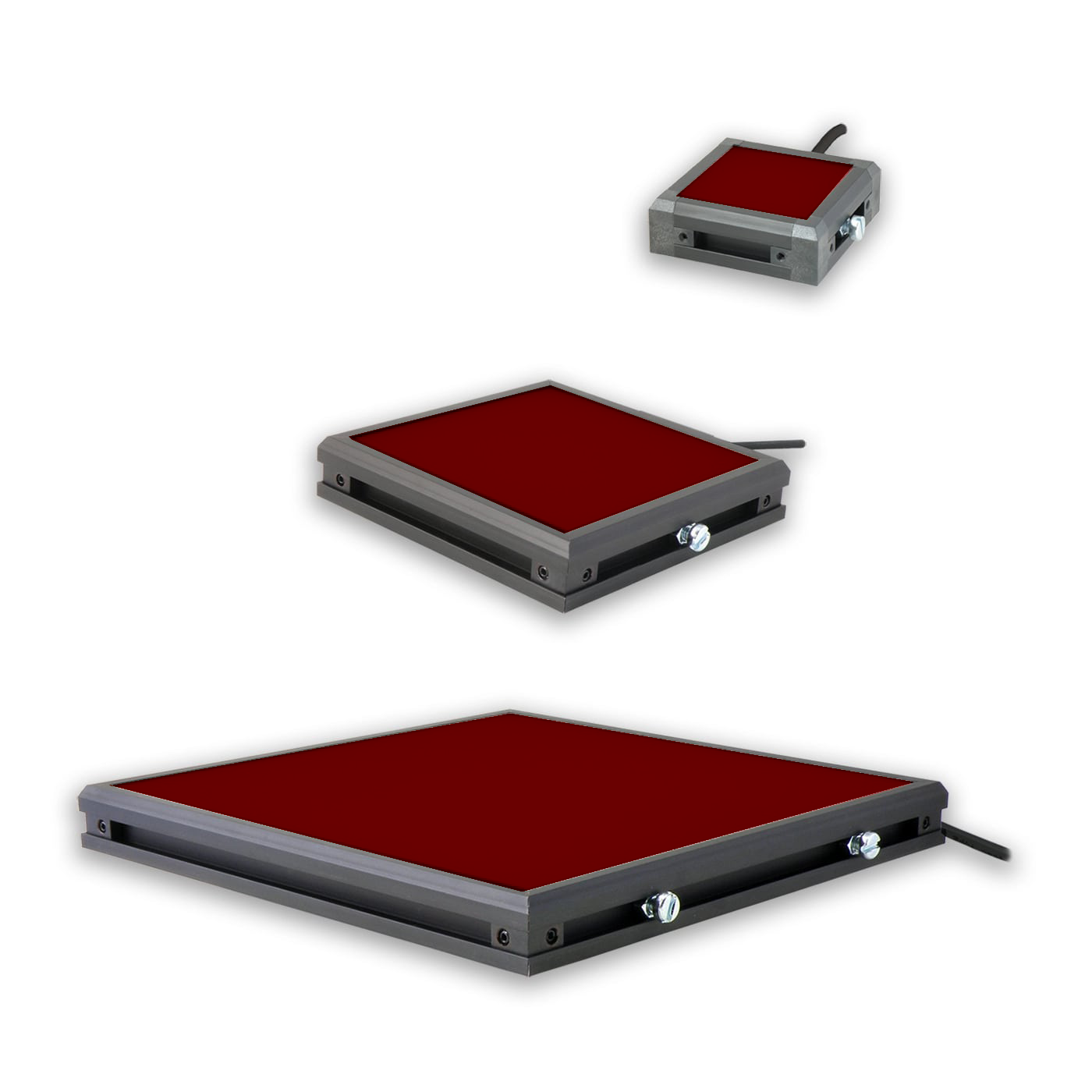

The BL2 Series of Back-lit Backlights offer a low profile design with a planar, back-lit array of LEDs.

BL2 Series backlights are part of our pre-engineered, expandable family of products.

Expandable products provide custom size and power options with short lead times.

Model numbers include the BL20202, BL20404, and BL20808.

This series comes with LB111 Mounting Brackets.

General Specs

Electrical Specifications 0.03A per sq. inch
Normal Operating Temperature

0 - 60°C

Weight 8" x 8" unit - 1034.2g (36.48oz)
Standard Cable Information 2 m long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain.
Photobiological Risk Factor Exempt Applicable Wavelengths: 880
Group 1 (Low-Risk) Applicable Wavelengths: 470, 520, 625, WHI
Compliance CE, RoHS, IEC 62471
IP Rating IP50
Lumen Maintenance L70 = 50,000 Hours

Electrical Specs

BL2 Series Back-lit Backlights Electrical Specs | Advanced Illumination
