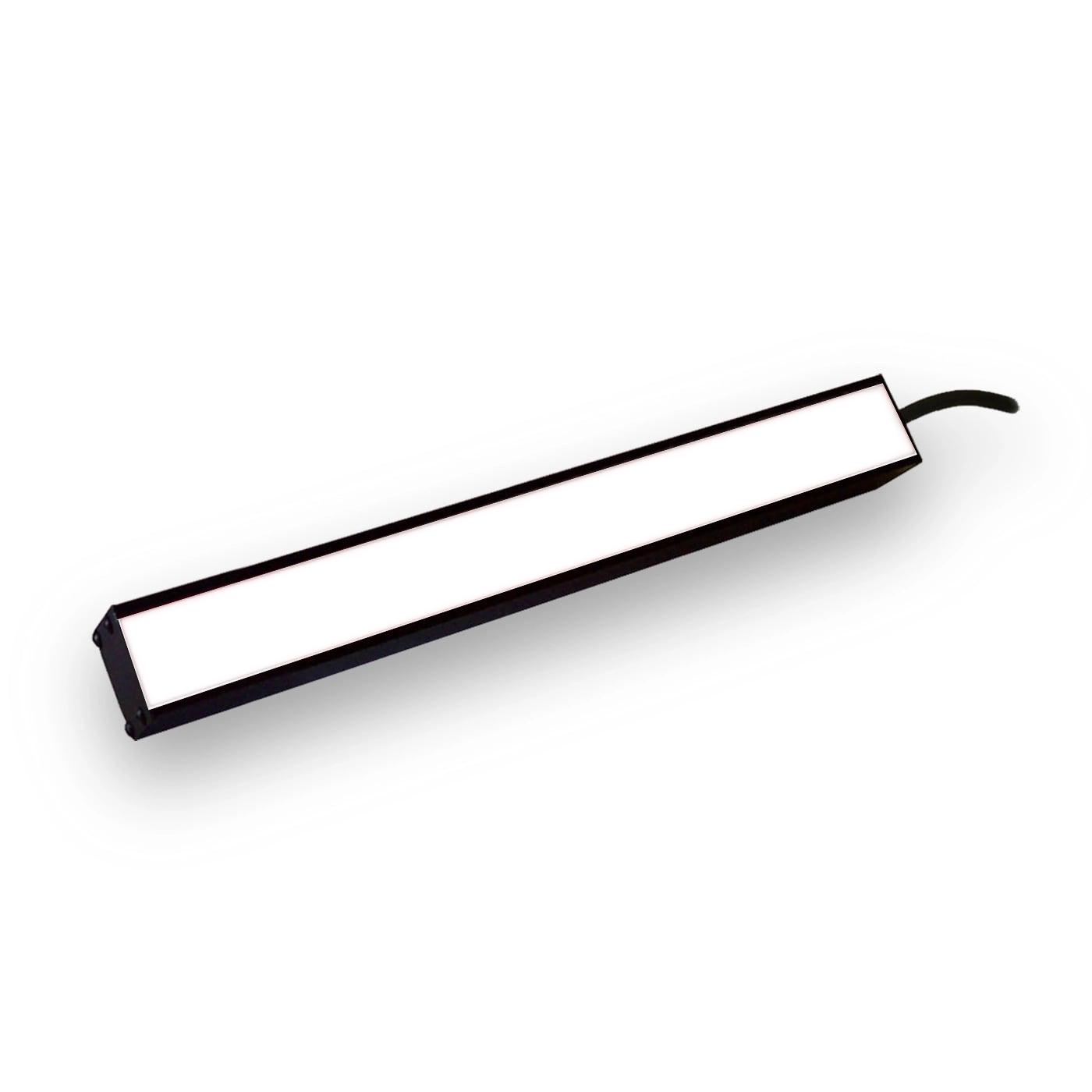

Standard Intensity Linear Backlights - BL Series
|Can Be Strobed||Yes|
|Can Be Overdrive Strobed||Yes|
|Can Be Constantly On||Yes|
|Can Be Dimmed||Dimmable|
|Connection||2M Flying Lead|
Our Standard Intensity Linear Backlights provide rugged construction for demanding environments.
Standard intensity illumination with low power input requirements.
Multiple wavelengths available with very consistent illumination over the entire active area.
Available in 1� (25mm) increments with lengths up to 80.5� (2044mm).
0.03A per inch
|Normal Operating Temperature||
0 - 60°C
|Weight||12" unit - 212.3g (7.5oz)|
|Standard Cable Information||2 m long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain.|
|Photobiological Risk Factor||
Exempt Applicable Wavelengths: 880
Group 1 (Low-Risk) Applicable Wavelengths: 470, 520, 660, WHI
|Compliance||CE, RoHS, IEC 62471|
|Lumen Maintenance||L70 = 50,000 hours|
||880nm Infra-Red (IR)|
Additional Wavelengths are available upon request by contacting Machine Vision Direct.
Part No Key
Advanced Illumination BL19360-WHII3S Downloads:
