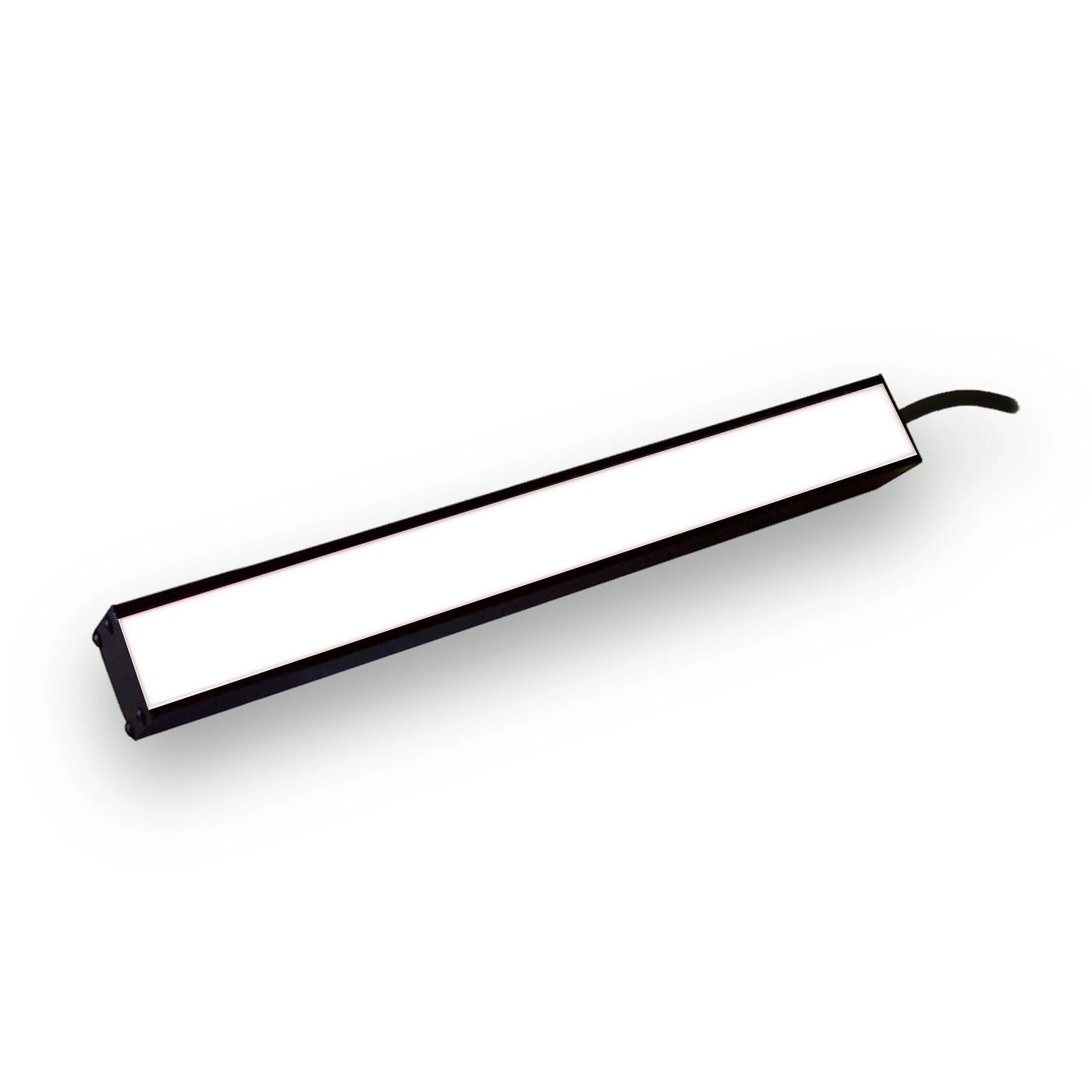

BL19318-WHII3S Standard Intensity Linear BackLight, WHITE, 18 in, ICS 3S (I3S) Driver

Advanced IlluminationSKU: BL19318-WHII3S
Lead Time: 2 Weeks

Price:
Sale price$1,115.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

Standard Intensity Linear Backlights - BL Series

BL19318-WHII3S Specifications:

Brand Advanced Illumination
Series BL193
Wavelength WHI
Color White
Driver I3S
Ingress Protection IP50
Length 18 in
Weight 608g
Can Be Strobed Yes
Can Be Overdrive Strobed Yes
Can Be Constantly On Yes
Can Be Dimmed Dimmable
Connection 2M Flying Lead

Full Description

Our Standard Intensity Linear Backlights provide rugged construction for demanding environments.

Standard intensity illumination with low power input requirements.

Multiple wavelengths available with very consistent illumination over the entire active area.

Available in 1� (25mm) increments with lengths up to 80.5� (2044mm).

General Specs

Electrical Specifications

0.03A per inch

Normal Operating Temperature

0 - 60°C

Weight 12" unit - 212.3g (7.5oz)
Standard Cable Information 2 m long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain.
Photobiological Risk Factor Exempt Applicable Wavelengths: 880
Group 1 (Low-Risk) Applicable Wavelengths: 470, 520, 660, WHI
Compliance CE, RoHS, IEC 62471
IP Rating IP50
Lumen Maintenance L70 = 50,000 hours



Available Wavelengths

Wavelength
Color
Description
WHITE
Advanced Illumination White Lights
WHITE
470
Advanced Illumination 470nm Blue Light
470nm Blue
520
Advanced Illumination 520nm Green Light
520nm Green
660
Advanced Illumination 660nm Red Light
660nm Red
880
Advanced Illumination 880nm Infra-Red (IR) Light
880nm Infra-Red (IR)

Additional Wavelengths are available upon request by contacting Machine Vision Direct.

Mechanical Specs

 BL193 Standard Intensity Linear Backlights Mechanical Specs | Advanced Illumination



Optical Specs

 BL193 Standard Intensity Linear Backlights Optical Specs | Advanced Illumination


Electrical Specs

 BL193 Standard Intensity Linear Backlights Electrical Specs | Advanced Illumination

Control Specs

 BL193 Standard Intensity Linear Backlights Control Specs | Advanced Illumination



Part No Key

 BL193 Standard Intensity Linear Backlights Part No Key | Advanced Illumination

Advanced Illumination BL19318-WHII3S Downloads:

Advanced Illumination BL19318-WHII3S Datasheet | Machine Vision Direct
Advanced Illumination BL19318-WHII3S CAD PDF | Machine Vision Direct
Advanced Illumination BL19318-WHII3S CAD DXF | Machine Vision Direct
Advanced Illumination BL19318-WHII3S CAD STEP MODEL | Machine Vision Direct
