Description

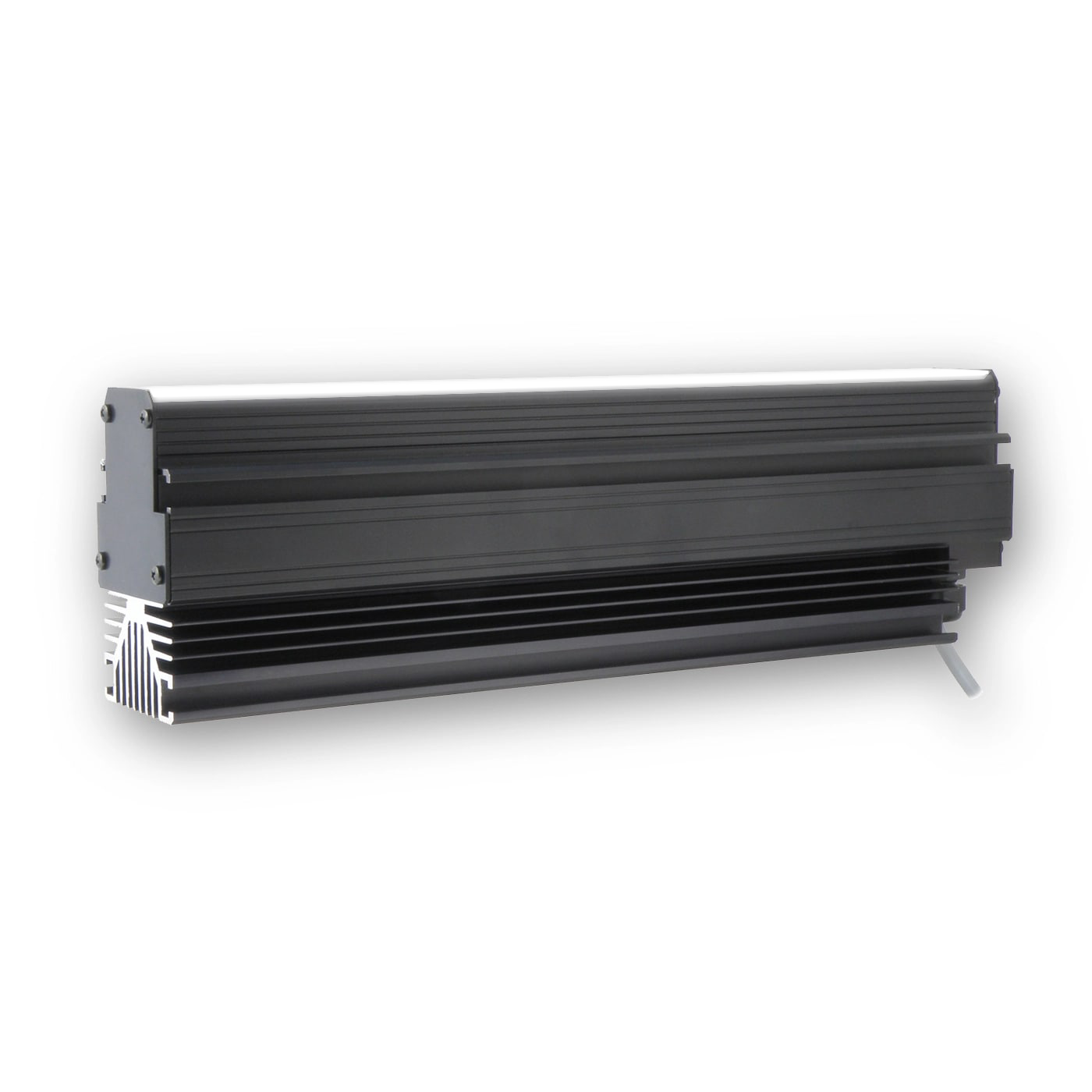

White High Intensity Linear Backlights - BL Series
BL16842-WHI24 Specifications:
Brand | Advanced Illumination |
Series | BL168 |
Wavelength | WHI |
Color | White |
Driver | 24 |
Ingress Protection | Not Rated |
Length | 42 in |
Weight | 4204g |
Can Be Strobed | No |
Can Be Overdrive Strobed | No |
Can Be Constantly On | Yes |
Can Be Dimmed | Not Dimmable |
Connection | 2M Flying Lead |
Full Description
Our White High Intensity Linear Backlights offer 540 kLux output, perfect for back-lit, line-scanning applications.
Available in pre-engineered sizes from 6� (152mm) to 96� (2438mm) in 6³ increments.
A 3³ (75mm) length option is also available. Available intensity control provides illuminance adjustability for every 6³ increment via a 0 “ 10v input.
Available in white only. For additional wavelengths please refer to our BL138 series.
General Specs
Electrical Specifications | 0.76A per 6 inches |
Normal Operating Temperature |
0 - 60°C |
Weight | Per 12" - 1247.4g (44oz) |
Standard Cable Information | 2 m long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain. |
Photobiological Risk Factor |
Group 1 (Low-Risk) Applicable Wavelengths: WHI |
Compliance | CE, RoHS, IEC 62471 |
IP Rating | Not Rated |
Lumen Maintenance | L70 = 50,000 Hours |
Available Wavelengths
Wavelength |
Color |
Description |
WHITE | WHITE |
Additional Wavelengths are available upon request by contacting Machine Vision Direct.
Mechanical Specs
Optical Specs
Electrical Specs
Control Specs
Part No Key
