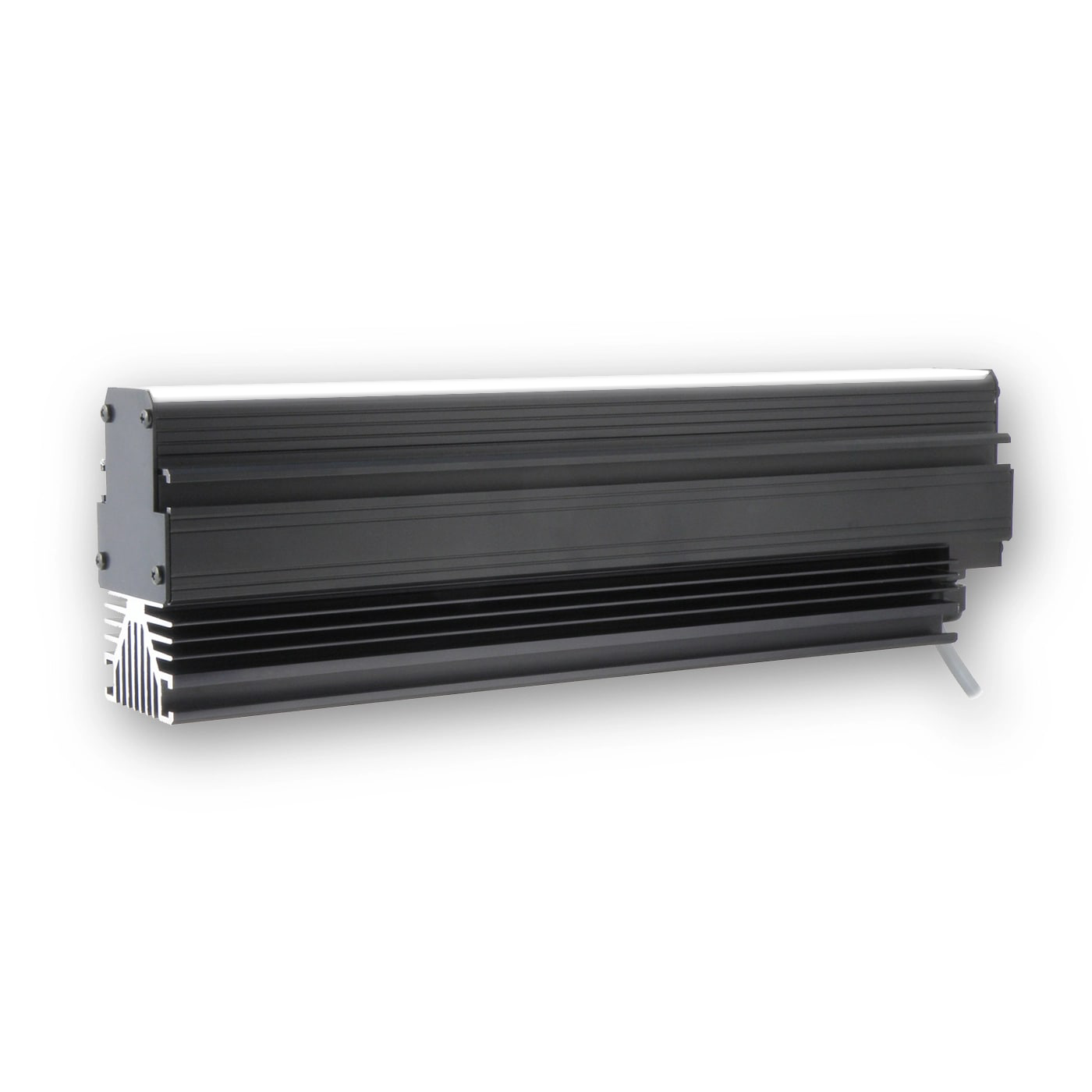

BL16836-WHI24 White High Intensity Linear BackLight, WHITE, 36 in, 24 Volt Driver

Advanced IlluminationSKU: BL16836-WHI24
Lead Time: 2 Weeks

Price:
Sale price$5,477.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

White High Intensity Linear Backlights - BL Series

BL16836-WHI24 Specifications:

Brand Advanced Illumination
Series BL168
Wavelength WHI
Color White
Driver 24
Ingress Protection Not Rated
Length 36 in
Weight 3634g
Can Be Strobed No
Can Be Overdrive Strobed No
Can Be Constantly On Yes
Can Be Dimmed Not Dimmable
Connection 2M Flying Lead

Full Description

Our White High Intensity Linear Backlights offer 540 kLux output, perfect for back-lit, line-scanning applications.

Available in pre-engineered sizes from 6� (152mm) to 96� (2438mm) in 6³ increments.

A 3³ (75mm) length option is also available. Available intensity control provides illuminance adjustability for every 6³ increment via a 0 “ 10v input.

Available in white only. For additional wavelengths please refer to our BL138 series.

General Specs

Electrical Specifications 0.76A per 6 inches
Normal Operating Temperature

0 - 60°C

Weight Per 12" - 1247.4g (44oz)
Standard Cable Information 2 m long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain.
Photobiological Risk Factor

Group 1 (Low-Risk) Applicable Wavelengths: WHI

Compliance CE, RoHS, IEC 62471
IP Rating Not Rated
Lumen Maintenance L70 = 50,000 Hours



Available Wavelengths

Wavelength
Color
Description
WHITE
Advanced Illumination White Lights
WHITE

Additional Wavelengths are available upon request by contacting Machine Vision Direct.

Mechanical Specs

 BL168 White High Intensity Linear Backlights Mechanical Specs | Advanced Illumination



Optical Specs

 BL168 White High Intensity Linear Backlights Optical Specs | Advanced Illumination


Electrical Specs

 BL168 White High Intensity Linear Backlights Electrical Specs | Advanced Illumination

Control Specs

 BL168 White High Intensity Linear Backlights Control Specs | Advanced Illumination



Part No Key

 BL168 White High Intensity Linear Backlights Part No Key | Advanced Illumination

Advanced Illumination BL16836-WHI24 Downloads:

Advanced Illumination BL16836-WHI24 Datasheet | Machine Vision Direct
Advanced Illumination BL16836-WHI24 CAD PDF | Machine Vision Direct
Advanced Illumination BL16836-WHI24 CAD DXF | Machine Vision Direct
Advanced Illumination BL16836-WHI24 CAD STEP MODEL | Machine Vision Direct
