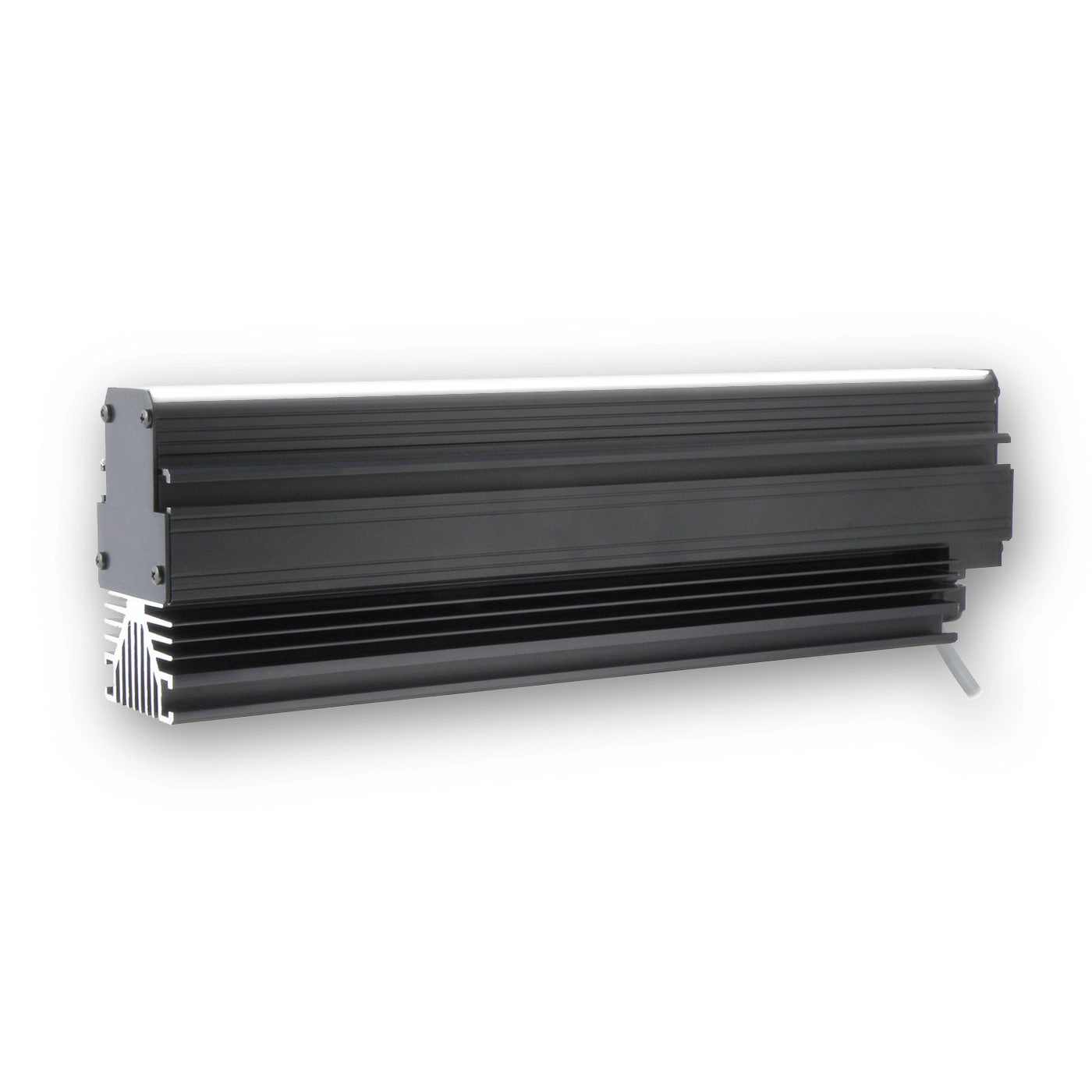

White High Intensity Linear Backlights - BL Series
|Ingress Protection||Not Rated|
|Can Be Strobed||No|
|Can Be Overdrive Strobed||No|
|Can Be Constantly On||Yes|
|Can Be Dimmed||Not Dimmable|
|Connection||2M Flying Lead|
Our White High Intensity Linear Backlights offer 540 kLux output, perfect for back-lit, line-scanning applications.
Available in pre-engineered sizes from 6� (152mm) to 96� (2438mm) in 6³ increments.
A 3³ (75mm) length option is also available. Available intensity control provides illuminance adjustability for every 6³ increment via a 0 “ 10v input.
Available in white only. For additional wavelengths please refer to our BL138 series.
|Electrical Specifications||0.76A per 6 inches|
|Normal Operating Temperature||
0 - 60°C
|Weight||Per 12" - 1247.4g (44oz)|
|Standard Cable Information||2 m long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain.|
|Photobiological Risk Factor||
Group 1 (Low-Risk) Applicable Wavelengths: WHI
|Compliance||CE, RoHS, IEC 62471|
|IP Rating||Not Rated|
|Lumen Maintenance||L70 = 50,000 Hours|
Additional Wavelengths are available upon request by contacting Machine Vision Direct.
Part No Key
Advanced Illumination BL16803-WHI24 Downloads:
