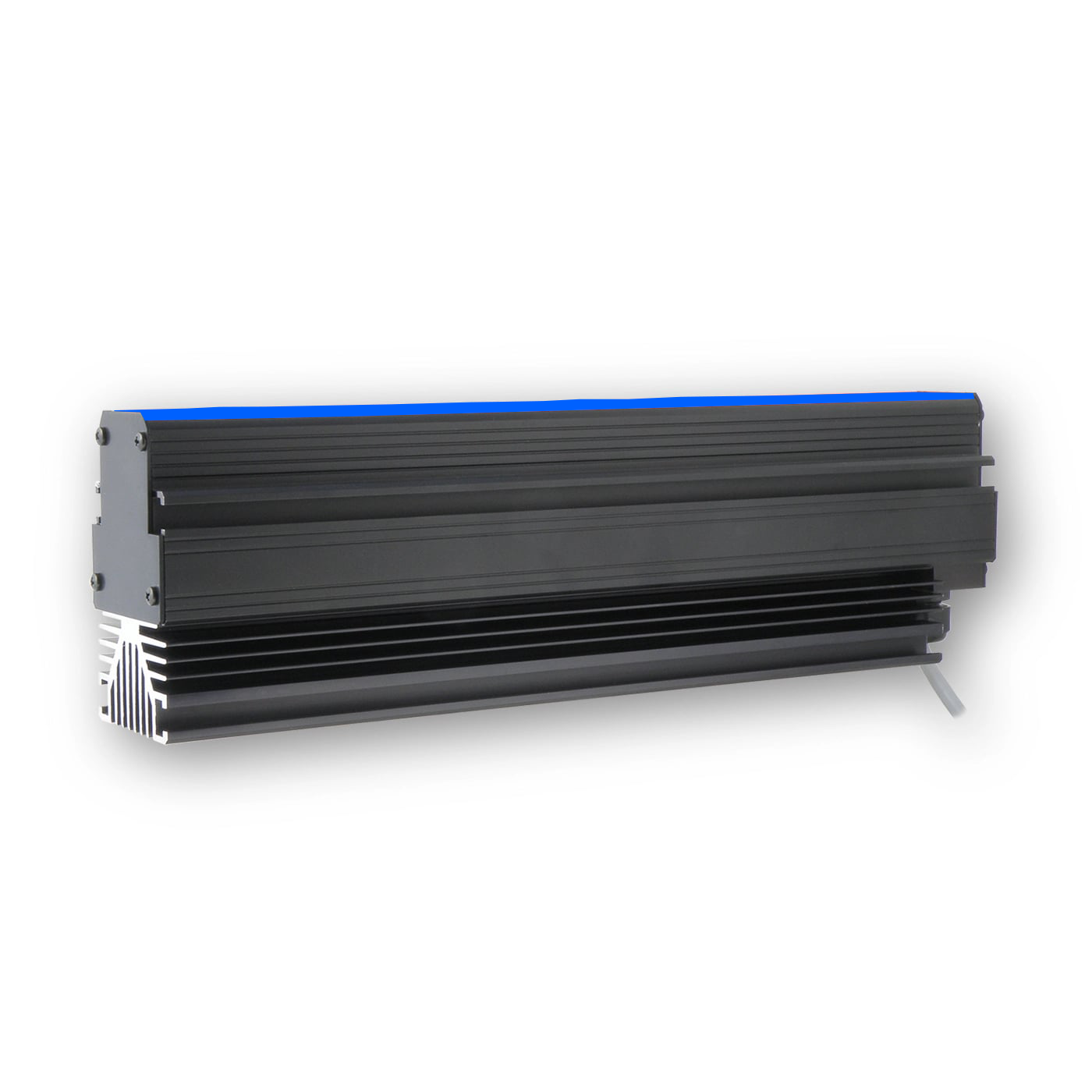

BL13824-45524 High Intensity BackLight, 455nm Royal Blue, 24 in, 24 Volt Driver

Advanced IlluminationSKU: BL13824-45524
Lead Time: 2 Weeks

Price:
Sale price$3,305.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

High Intensity Backlights - BL Series

BL13824-45524 Specifications:

Brand Advanced Illumination
Series BL138
Wavelength 455
Color Royal Blue
Driver 24
Ingress Protection IP50
Length 24 in
Weight 2487g
Can Be Strobed No
Can Be Overdrive Strobed No
Can Be Constantly On Yes
Can Be Dimmed Not Dimmable
Connection 2M Flying Lead

Full Description

Our High Intensity Linear Backlights offer 510 kLux output, perfect for back-lit, line-scanning applications.

Available in pre-engineered sizes from 6� (152mm) to 96� (2438mm) in 6³ increments.

A 3³ (75mm) length option is also available. Available intensity control provides illuminance adjustability for every 6³ increment via a 0 “ 10v input

General Specs

Electrical Specifications

0.64A Max per 6 inches

0.64A Max per 6 inches

0.75A Max per 6 inches
Normal Operating Temperature

0 - 60°C

Weight Per 12" - 1211.1g (42.72oz)
Standard Cable Information 2 m long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain.
Photobiological Risk Factor Exempt Applicable Wavelengths: 850
Group 1 (Low-Risk) Applicable Wavelengths: 455, 530, 625, RGB, WHI
Compliance CE, RoHS, IEC 62471
IP Rating Unsealed - IP50
Lumen Maintenance L70 = 50,000 Hours



Available Wavelengths

Wavelength
Color
Description
WHITE
Advanced Illumination White Lights
WHITE
455
455nm Royal Blue
530
Advanced Illumination 530nm Green Light
530nm Green
625
Advanced Illumination 625nm Red Orange Light
625nm Red Orange
850
Advanced Illumination 850nm Infra-Red (IR) Light
850nm Infra-Red (IR)

Additional Wavelengths are available upon request by contacting Machine Vision Direct.

Mechanical Specs

 BL138 High Intensity Backlights Mechanical Specs | Advanced Illumination



Optical Specs

 BL138 High Intensity Backlights Optical Specs | Advanced Illumination


Electrical Specs



BL138 High Intensity Backlights Electrical Specs | Advanced Illumination

Control Specs

 BL138 High Intensity Backlights Control Specs | Advanced Illumination



Part No Key

 BL138 High Intensity Backlights Part No Key | Advanced Illumination

Advanced Illumination BL13824-45524 Downloads:

Advanced Illumination BL13824-45524 Datasheet | Machine Vision Direct
Advanced Illumination BL13824-45524 CAD PDF | Machine Vision Direct
Advanced Illumination BL13824-45524 CAD DXF | Machine Vision Direct
Advanced Illumination BL13824-45524 CAD STEP MODEL | Machine Vision Direct
