Description

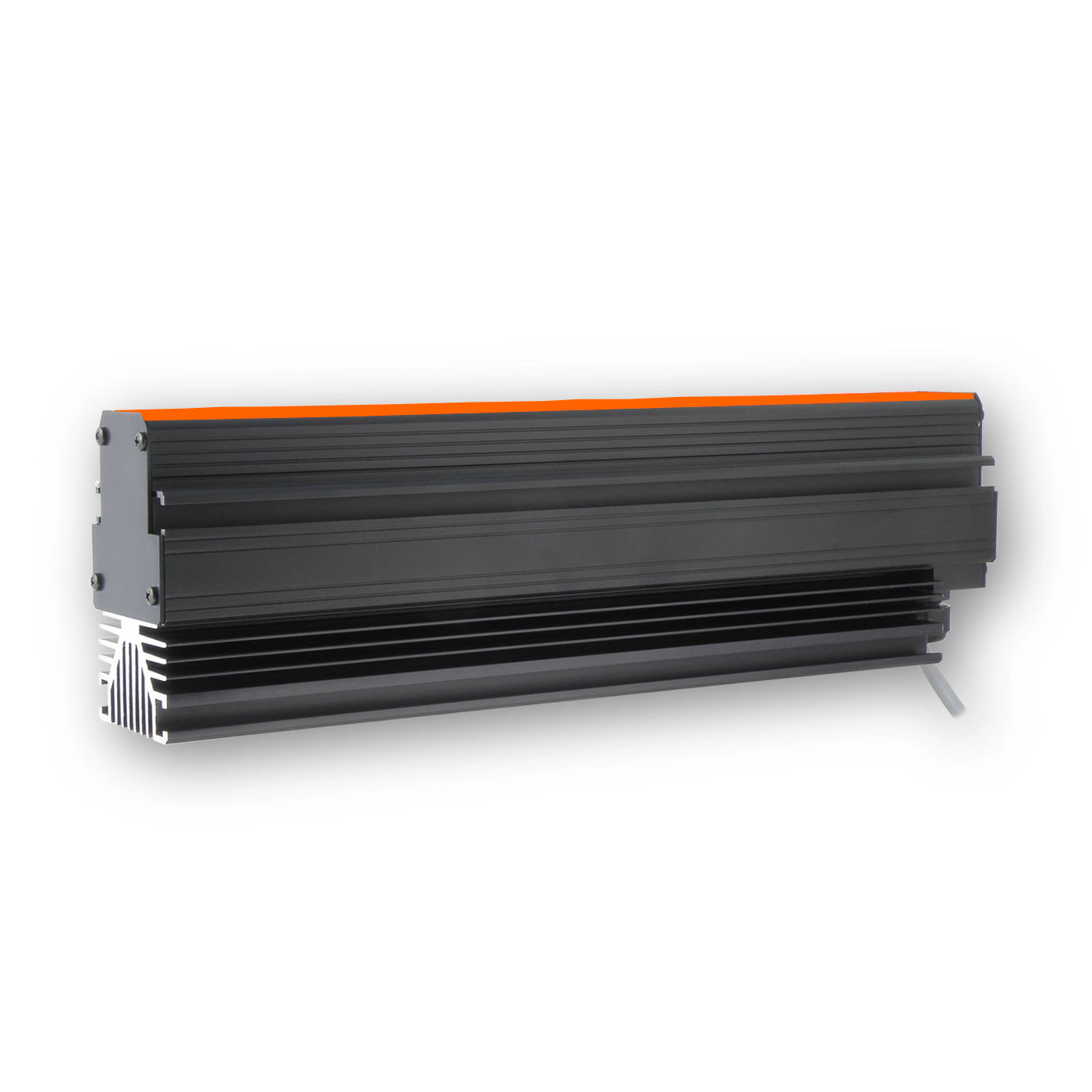

High Intensity Backlights - BL Series
BL13812-62524 Specifications:
Brand | Advanced Illumination |
Series | BL138 |
Wavelength | 625 |
Color | Red Orange |
Driver | 24 |
Ingress Protection | IP50 |
Length | 12 in |
Weight | 1341g |
Can Be Strobed | No |
Can Be Overdrive Strobed | No |
Can Be Constantly On | Yes |
Can Be Dimmed | Not Dimmable |
Connection | 2M Flying Lead |
Full Description
Our High Intensity Linear Backlights offer 510 kLux output, perfect for back-lit, line-scanning applications.
Available in pre-engineered sizes from 6� (152mm) to 96� (2438mm) in 6³ increments.
A 3³ (75mm) length option is also available. Available intensity control provides illuminance adjustability for every 6³ increment via a 0 “ 10v input
General Specs
Electrical Specifications |
0.64A Max per 6 inches 0.64A Max per 6 inches 0.75A Max per 6 inches |
Normal Operating Temperature |
0 - 60°C |
Weight | Per 12" - 1211.1g (42.72oz) |
Standard Cable Information | 2 m long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain. |
Photobiological Risk Factor |
Exempt Applicable Wavelengths: 850 Group 1 (Low-Risk) Applicable Wavelengths: 455, 530, 625, RGB, WHI |
Compliance | CE, RoHS, IEC 62471 |
IP Rating | Unsealed - IP50 |
Lumen Maintenance | L70 = 50,000 Hours |
Available Wavelengths
Wavelength |
Color |
Description |
WHITE | WHITE | |
455 | 455nm Royal Blue | |
530 | 530nm Green | |
625 | 625nm Red Orange | |
850 | 850nm Infra-Red (IR) |
Additional Wavelengths are available upon request by contacting Machine Vision Direct.
Mechanical Specs
Optical Specs
Electrical Specs
Control Specs
Part No Key
