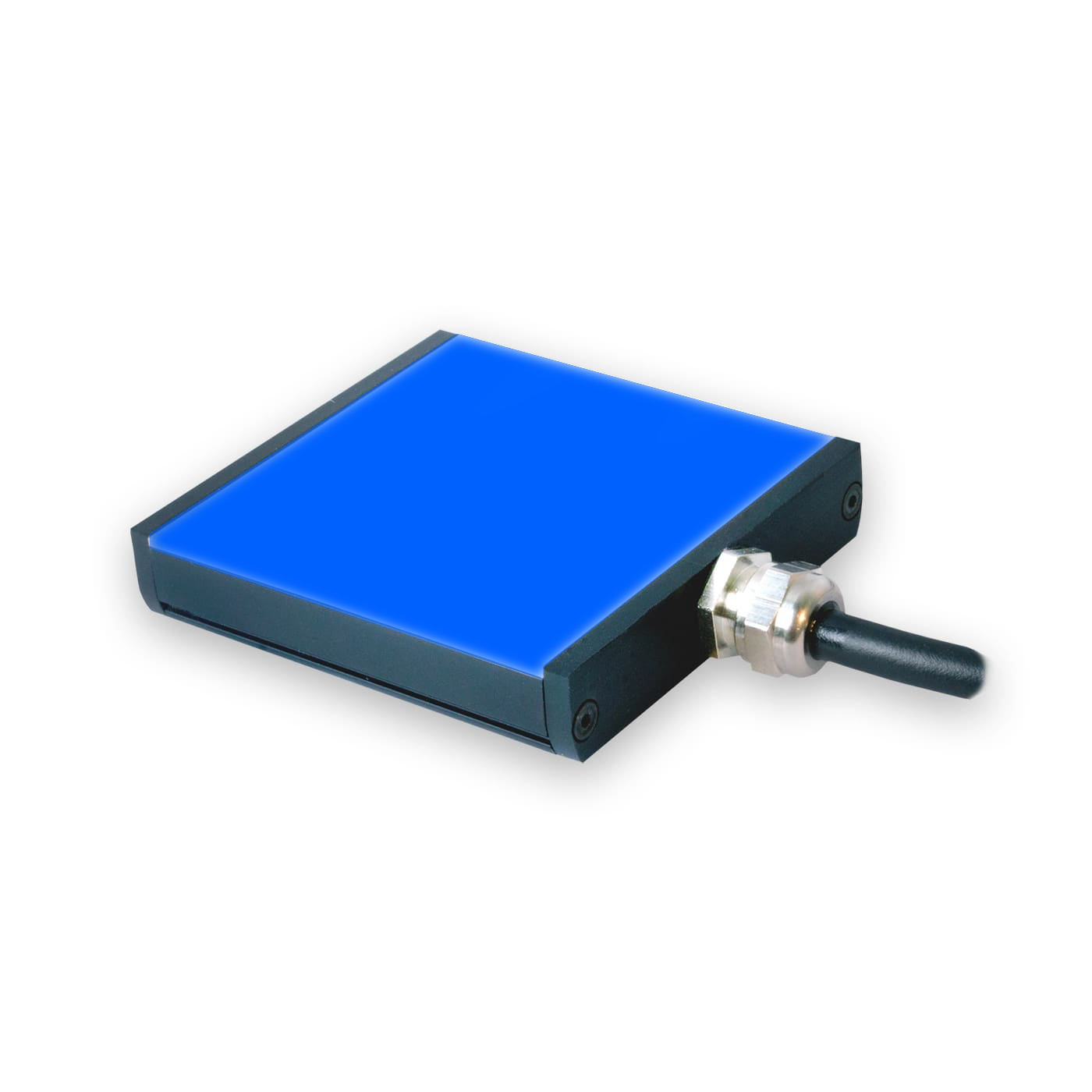

BL12803 Compacy Linear BackLight, 03 in

Advanced IlluminationSKU: BL12803-470I3S
Lead Time: 2 Weeks

Color: Blue (470nm)
Driver: ICS 3S (I3S)
Price:
Sale price$1,104.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

Compact Linear Backlights - BL Series

BL12803 Specifications:

Brand Advanced Illumination
Series BL128
Wavelength VARIES
Color VARIES
Driver I3S
Ingress Protection IP50
Length 03 in
Weight 263g
Can Be Strobed Yes
Can Be Overdrive Strobed Yes
Can Be Constantly On Yes
Can Be Dimmed Dimmable
Connection 2M Flying Lead

Full Description

The BL128 Series of Compact Backlights provide edge to edge illumination in a 12mm thick housing.

The BL128 length is expandable in 1� (25mm) increments up to 14.4³ (366.8mm).

Optional washdown version is IP65 compliant.

General Specs

Electrical Specifications

0.042A per inch

0.06A per inch
Normal Operating Temperature 0 - 60°C
Weight 2" unit - 69.85g (2.46oz)
Standard Cable Information 2 m long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain.
Photobiological Risk Factor Exempt Applicable Wavelengths: 880
Group 1 (Low-Risk) Applicable Wavelengths: 470, 520, 660, WHI
Compliance CE, RoHS, IEC 62471
IP Rating IP64 Sealed, IP50 Unsealed
Lumen Maintenance L70 = 50,000 Hours



Available Wavelengths

Wavelength
Color
Description

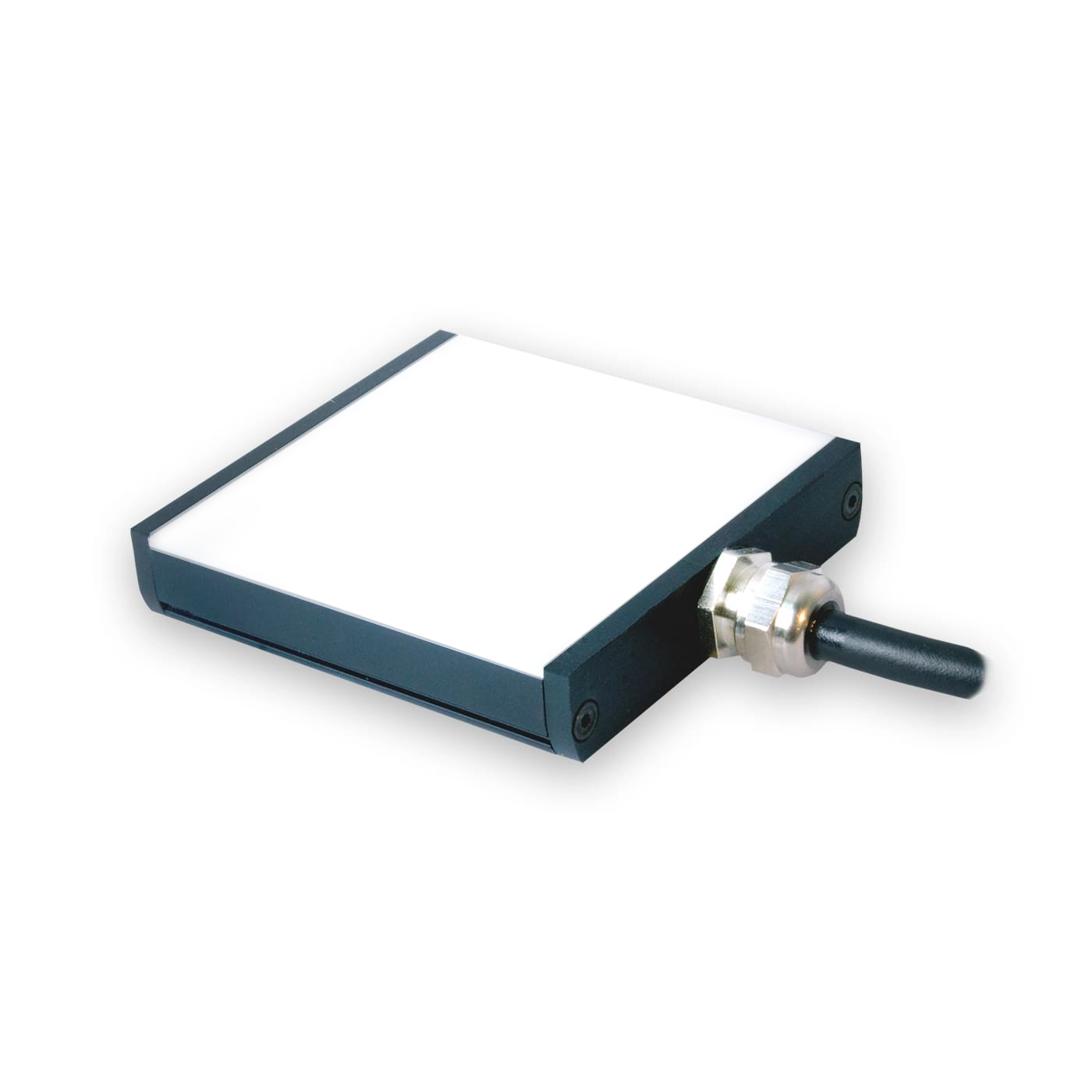

WHITE
Advanced Illumination White Lights
WHITE
365
Advanced Illumination 365nm Ultra-Violet (UV) Light
365nm Ultra-Violet (UV)
375
Advanced Illumination 375nm Ultra-Violet (UV) Light
375nm Ultra-Violet (UV)
385
Advanced Illumination 385nm Ultra-Violet (UV) Light
385nm Ultra-Violet (UV)
390
Advanced Illumination 390nm Ultra-Violet (UV) Light
390nm Ultra-Violet (UV)
395
Advanced Illumination 395nm Ultra-Violet (UV) Light
395nm Ultra-Violet (UV)
405
Advanced Illumination 405nm Violet Light
405nm Violet
455
455nm Royal Blue
470
Advanced Illumination 470nm Blue Light
470nm Blue
505
Advanced Illumination 505nm Cyan Light
505nm Cyan

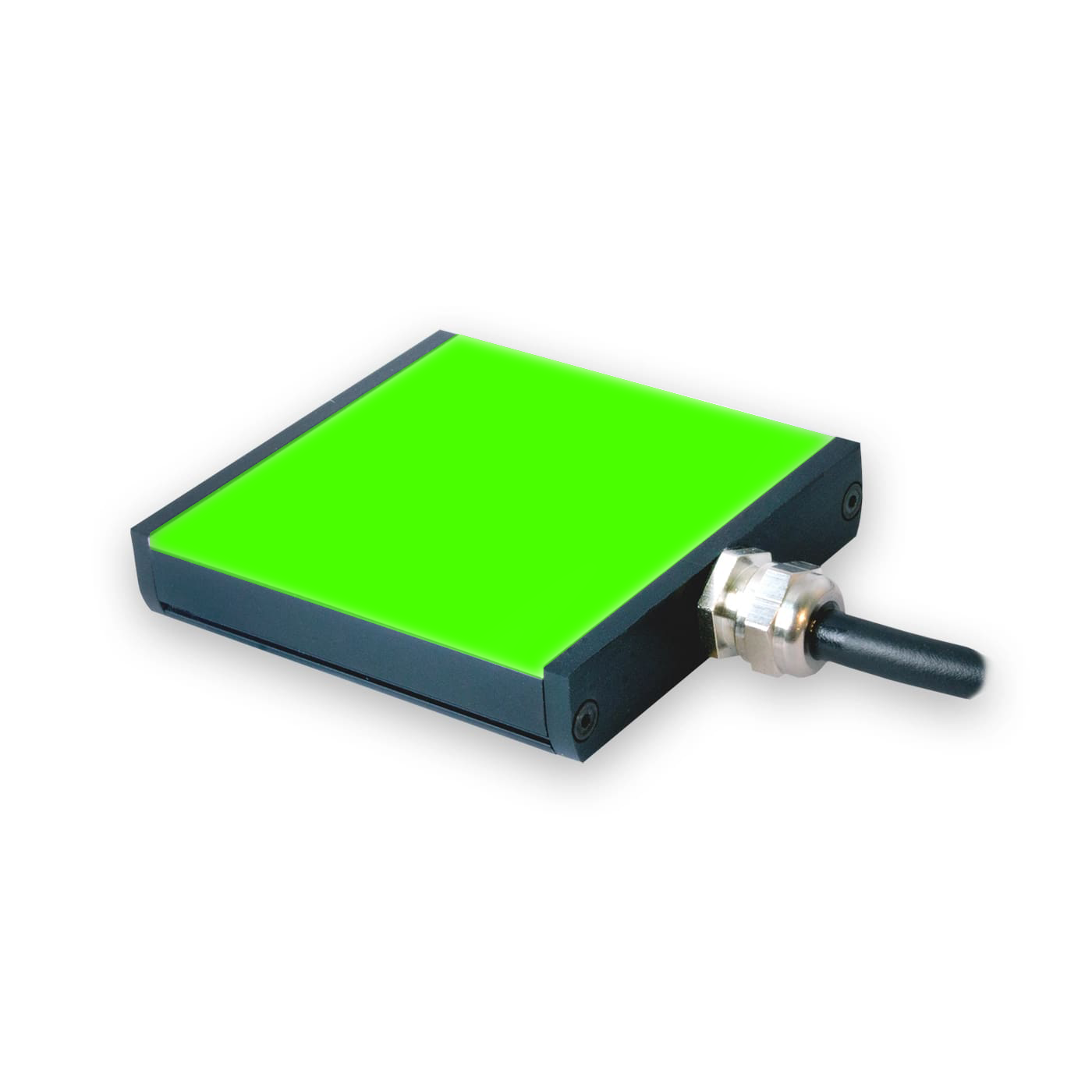

520
Advanced Illumination 520nm Green Light
520nm Green
530
Advanced Illumination 530nm Green Light
530nm Green
590
Advanced Illumination 590nm Amber Light
590nm Amber
625
Advanced Illumination 625nm Red Orange Light
625nm Red Orange

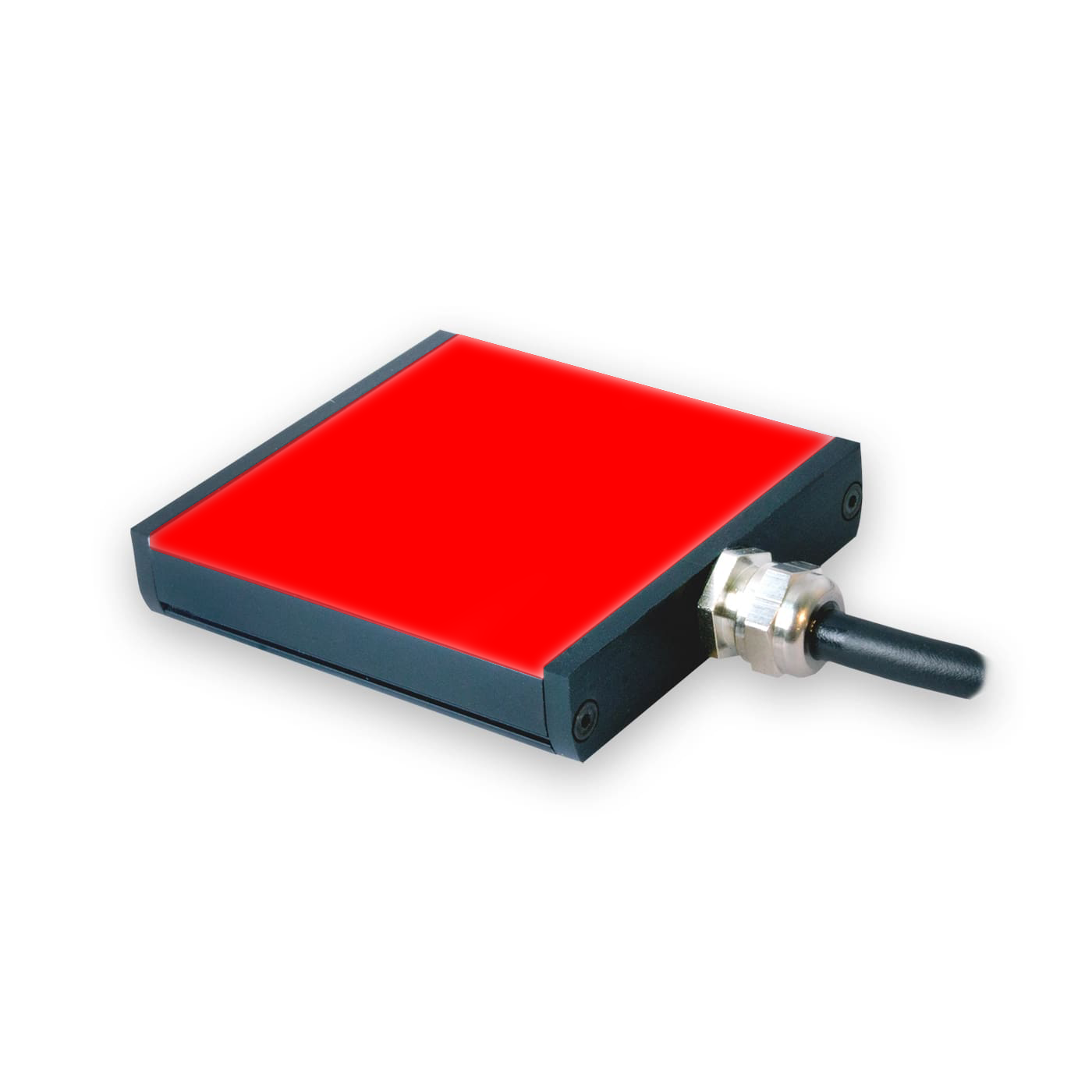

660
Advanced Illumination 660nm Red Light
660nm Red
730
Advanced Illumination 730nm Infra-Red (IR) Light
730nm Infra-Red (IR)
850
Advanced Illumination 850nm Infra-Red (IR) Light
850nm Infra-Red (IR)

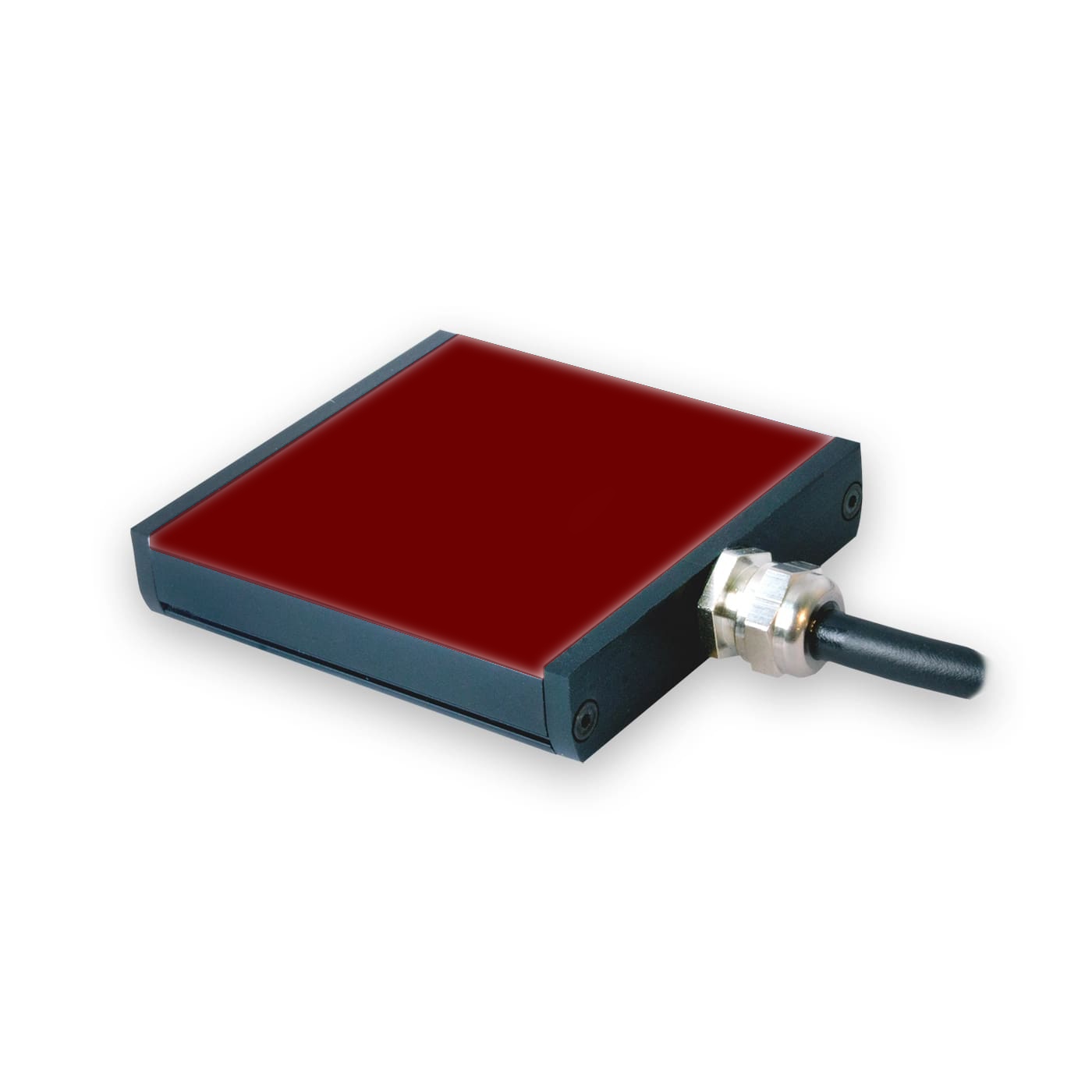

880
Advanced Illumination 880nm Infra-Red (IR) Light
880nm Infra-Red (IR)
940
Advanced Illumination 940nm Infra-Red (IR) Light
940nm Infra-Red (IR)

Additional Wavelengths are available upon request by contacting Machine Vision Direct.

Mechanical Specs

 BL128 Compacy Linear Backlights Mechanical Specs | Advanced Illumination
BL128 Compacy Linear Backlights Mechanical Specs | Advanced Illumination



Optical Specs

 BL128 Compacy Linear Backlights Optical Specs | Advanced Illumination


Electrical Specs

 BL128 Compacy Linear Backlights Electrical Specs | Advanced Illumination

Control Specs

 BL128 Compacy Linear Backlights Control Specs | Advanced Illumination



Part No Key

 BL128 Compacy Linear Backlights Part No Key | Advanced Illumination

Advanced Illumination BL12803 Downloads:

Advanced Illumination BL12803 Datasheet | Machine Vision Direct
Advanced Illumination BL12803 CAD PDF | Machine Vision Direct
Advanced Illumination BL12803 CAD DXF | Machine Vision Direct
Advanced Illumination BL12803 CAD STEP MODEL | Machine Vision Direct
