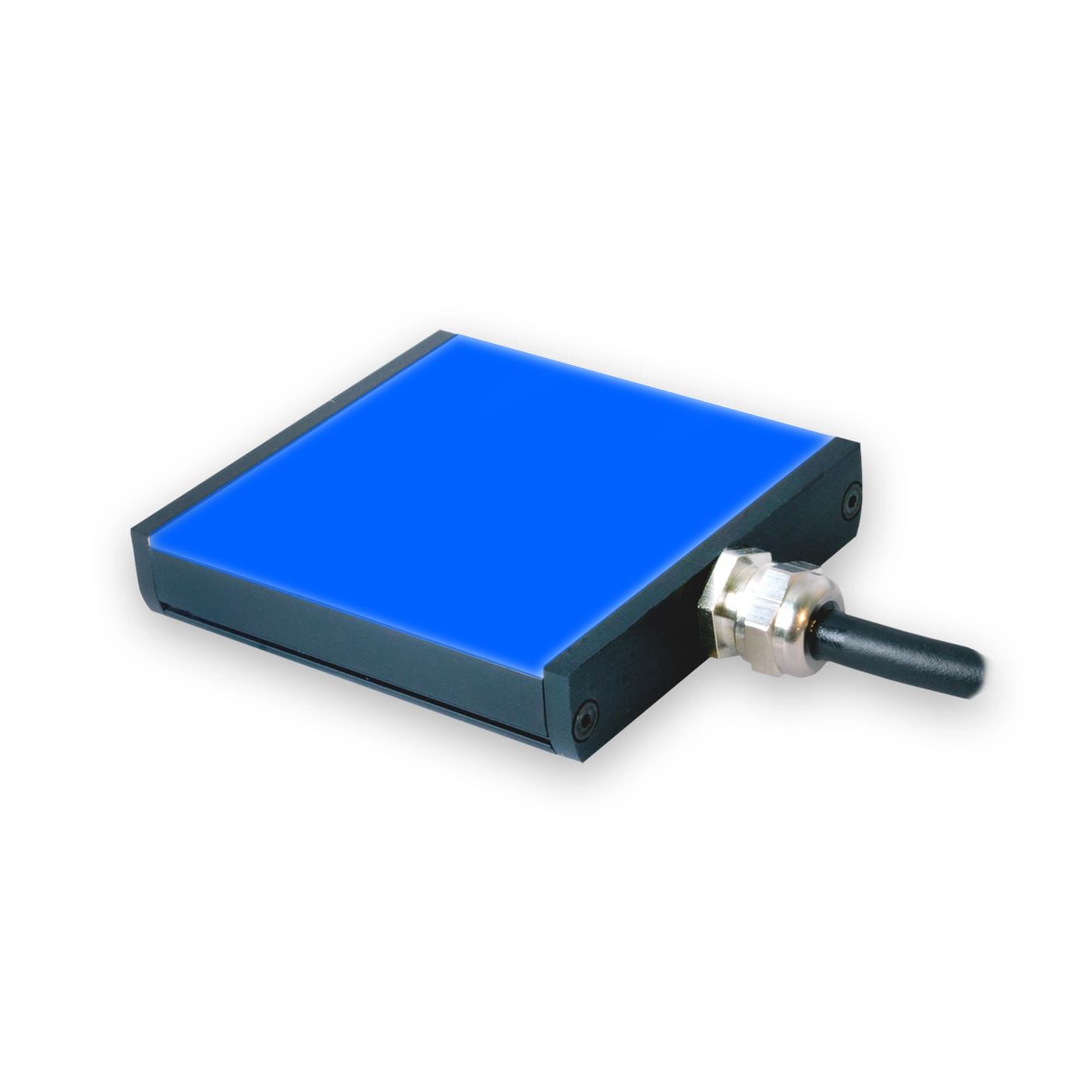

BL12802-470I3S Compacy Linear BackLight, 470nm Blue, 02 in, ICS 3S (I3S) Driver

Advanced IlluminationSKU: BL12802-470I3S
Lead time: 2 Weeks

Sale price$903.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us


Compact Linear Backlights - BL Series

BL12802-470I3S Specifications:

Brand Advanced Illumination
Series BL128
Wavelength 470
Color Blue
Driver I3S
Ingress Protection IP50
Length 02 in
Weight 227g
Can Be Strobed Yes
Can Be Overdrive Strobed Yes
Can Be Constantly On Yes
Can Be Dimmed Dimmable
Connection 2M Flying Lead

Full Description

The BL128 Series of Compact Backlights provide edge to edge illumination in a 12mm thick housing.

The BL128 length is expandable in 1� (25mm) increments up to 14.4³ (366.8mm).

Optional washdown version is IP65 compliant.

General Specs

Electrical Specifications

0.042A per inch

0.06A per inch
Normal Operating Temperature 0 - 60°C
Weight 2" unit - 69.85g (2.46oz)
Standard Cable Information 2 m long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain.
Photobiological Risk Factor Exempt Applicable Wavelengths: 880
Group 1 (Low-Risk) Applicable Wavelengths: 470, 520, 660, WHI
Compliance CE, RoHS, IEC 62471
IP Rating IP64 Sealed, IP50 Unsealed
Lumen Maintenance L70 = 50,000 Hours


Available Wavelengths

Advanced Illumination White Lights
Advanced Illumination 365nm Ultra-Violet (UV) Light
365nm Ultra-Violet (UV)
Advanced Illumination 375nm Ultra-Violet (UV) Light
375nm Ultra-Violet (UV)
Advanced Illumination 385nm Ultra-Violet (UV) Light
385nm Ultra-Violet (UV)
Advanced Illumination 390nm Ultra-Violet (UV) Light
390nm Ultra-Violet (UV)
Advanced Illumination 395nm Ultra-Violet (UV) Light
395nm Ultra-Violet (UV)
Advanced Illumination 405nm Violet Light
405nm Violet
455nm Royal Blue
Advanced Illumination 470nm Blue Light
470nm Blue
Advanced Illumination 505nm Cyan Light
505nm Cyan
Advanced Illumination 520nm Green Light
520nm Green
Advanced Illumination 530nm Green Light
530nm Green
Advanced Illumination 590nm Amber Light
590nm Amber
Advanced Illumination 625nm Red Orange Light
625nm Red Orange
Advanced Illumination 660nm Red Light
660nm Red
Advanced Illumination 730nm Infra-Red (IR) Light
730nm Infra-Red (IR)
Advanced Illumination 850nm Infra-Red (IR) Light
850nm Infra-Red (IR)
Advanced Illumination 880nm Infra-Red (IR) Light
880nm Infra-Red (IR)
Advanced Illumination 940nm Infra-Red (IR) Light
940nm Infra-Red (IR)

Additional Wavelengths are available upon request by contacting Machine Vision Direct.

Mechanical Specs

 BL128 Compacy Linear Backlights Mechanical Specs | Advanced Illumination
BL128 Compacy Linear Backlights Mechanical Specs | Advanced Illumination


Optical Specs

 BL128 Compacy Linear Backlights Optical Specs | Advanced Illumination

Electrical Specs

 BL128 Compacy Linear Backlights Electrical Specs | Advanced Illumination

Control Specs

 BL128 Compacy Linear Backlights Control Specs | Advanced Illumination


Part No Key

 BL128 Compacy Linear Backlights Part No Key | Advanced Illumination

Advanced Illumination BL12802-470I3S Downloads:

Advanced Illumination BL12802-470I3S Datasheet | Machine Vision Direct
Advanced Illumination BL12802-470I3S CAD PDF | Machine Vision Direct
Advanced Illumination BL12802-470I3S CAD DXF | Machine Vision Direct
Advanced Illumination BL12802-470I3S CAD STEP MODEL | Machine Vision Direct
