Description

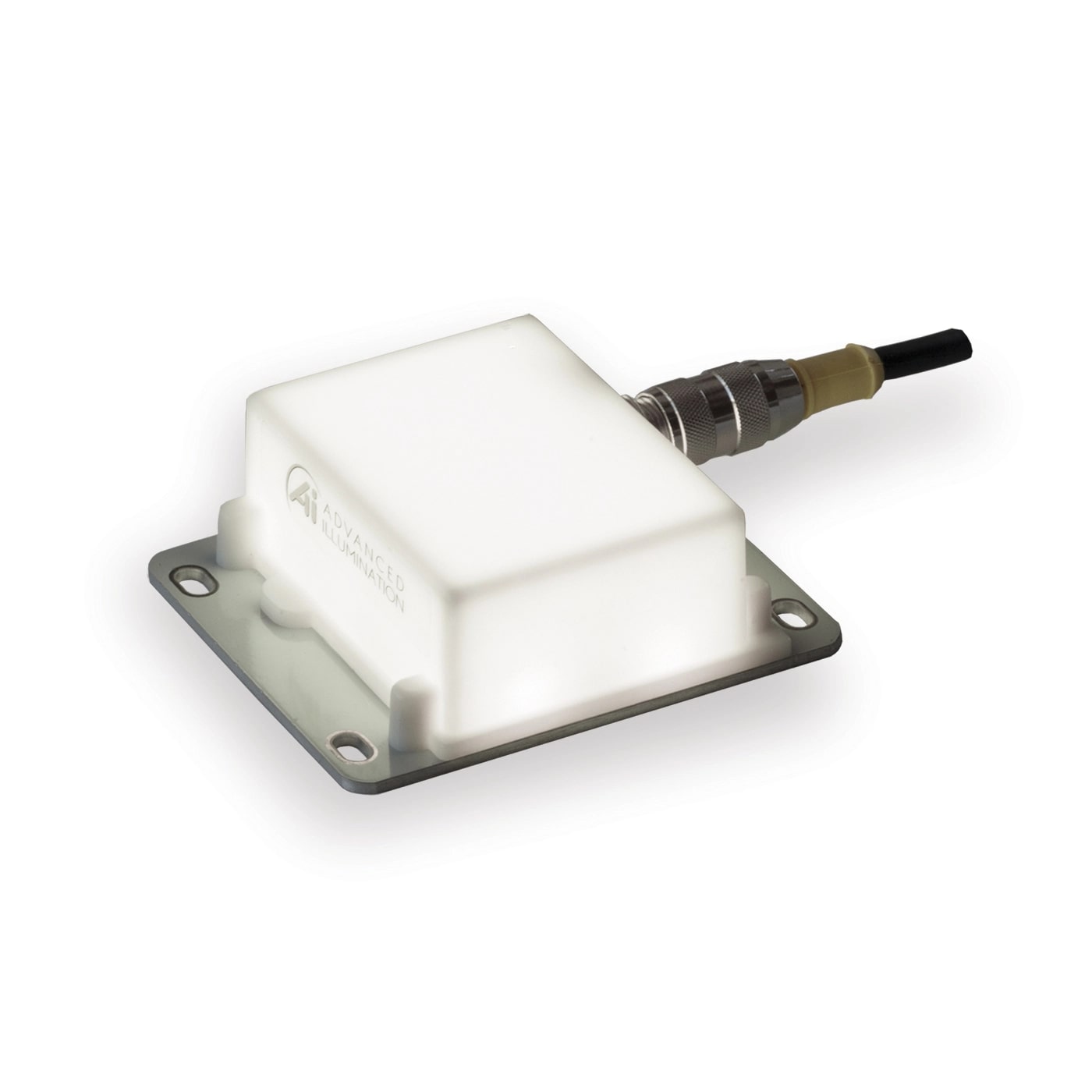

EuroBrite Small Backlights - BL Series

Full Description

Our EuroBrite™ lineup outdoes the competition in so many ways. With more features at a competitive price point, there’s no better value in machine vision lighting:

Complete built-in control for continuous and strobe modes.

Adaptive Power™, a feature of the EuroBrite™ lighting controller, utilizes an onboard thermistor to maximize light output in continuous mode.

Adaptive Overdrive,™ another feature of the EuroBrite™ lighting controller, provides a maximal output pulse in strobe mode regardless of the exposure period.

IP67 sealed enclosure suitable for washdown environments.

Rugged construction that has been tested to withstand over 1000lb.

Industrial grade LEDs providing high-intensity surface illumination of 38klux.

General Specs

Electrical Specifications ~0.27A
Normal Operating Temperature 0 - 60°C
Weight 92.53g (3.27oz)
Standard Cable Information No cable included; see part number LC2-M12-5-FX or use standard coded 5-pin M12.
Photobiological Risk Factor Exempt Applicable Wavelengths: 850, 940
Group 1 (Low-Risk) Applicable Wavelengths: 455, 470, 505, 530, 590, 625, 660, 730, WHI
Compliance CE, RoHS, IEC 62471
IP Rating IP67
Lumen Maintenance L70 = 50,000 Hours



Available Wavelengths

Wavelength
Color
Description
WHITE
Advanced Illumination White Lights
WHITE
455
455nm Royal Blue
470
Advanced Illumination 470nm Blue Light
470nm Blue
505
Advanced Illumination 505nm Cyan Light
505nm Cyan
530
Advanced Illumination 530nm Green Light
530nm Green
590
Advanced Illumination 590nm Amber Light
590nm Amber
625
Advanced Illumination 625nm Red Orange Light
625nm Red Orange
660
Advanced Illumination 660nm Red Light
660nm Red
730
Advanced Illumination 730nm Infra-Red (IR) Light
730nm Infra-Red (IR)
850
Advanced Illumination 850nm Infra-Red (IR) Light
850nm Infra-Red (IR)
940
Advanced Illumination 940nm Infra-Red (IR) Light
940nm Infra-Red (IR)

Additional Wavelengths are available upon request by contacting Machine Vision Direct.
