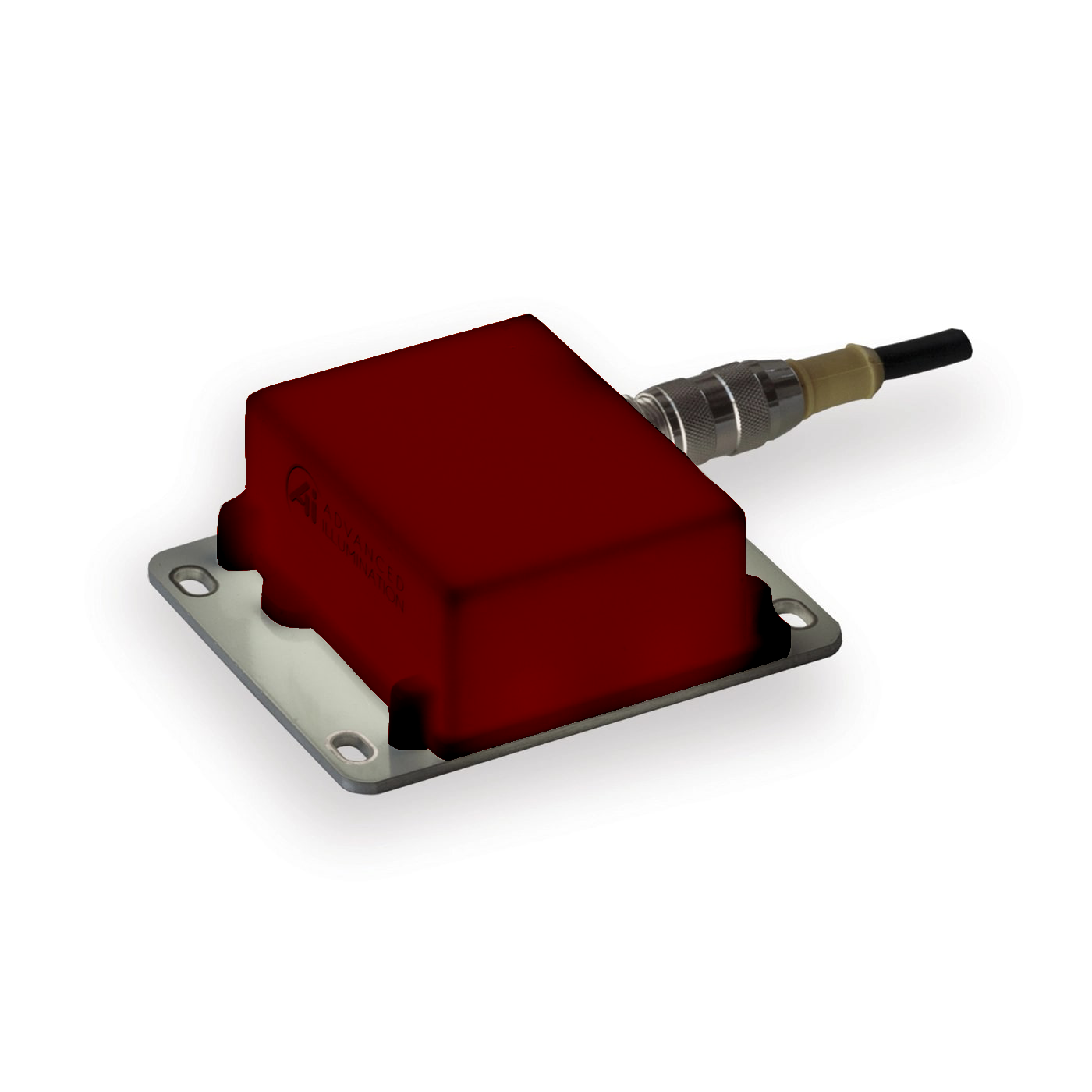

BL-S050075-850 EuroBrite Small Backlight, 850nm Infrared (IR), 50mm x 75mm, EuroBrite Driver

Advanced IlluminationSKU: BL-S050075-850
Lead Time: 1 Week

Sale price$285.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us


EuroBrite Small Backlights - BL Series

BL-S050075-850 Specifications:

Brand Advanced Illumination
Series BL-S050075
Wavelength 850
Color Infra-Red (IR)
Driver 0
Ingress Protection IP67
Length 050 mm
Width 075 mm
Weight 95g
Can Be Strobed Yes
Can Be Overdrive Strobed Yes
Can Be Constantly On Yes
Can Be Dimmed Dimmable
Connection M12 5 Pole

Full Description

Our EuroBrite„¢ lineup outdoes the competition in so many ways. With more features at a competitive price point, there™s no better value in machine vision lighting:

Complete built-in control for continuous and strobe modes.

Adaptive Power„¢, a feature of the EuroBrite„¢ lighting controller, utilizes an onboard thermistor to maximize light output in continuous mode.

Adaptive Overdrive,„¢ another feature of the EuroBrite„¢ lighting controller, provides a maximal output pulse in strobe mode regardless of the exposure period.

IP67 sealed enclosure suitable for washdown environments.

Rugged construction that has been tested to withstand over 1000lb.

Industrial grade LEDs providing high-intensity surface illumination of 38klux.

General Specs

Electrical Specifications ~0.27A
Normal Operating Temperature 0 - 60°C
Weight 92.53g (3.27oz)
Standard Cable Information No cable included; see part number LC2-M12-5-FX or use standard coded 5-pin M12.
Photobiological Risk Factor Exempt Applicable Wavelengths: 850, 940
Group 1 (Low-Risk) Applicable Wavelengths: 455, 470, 505, 530, 590, 625, 660, 730, WHI
Compliance CE, RoHS, IEC 62471
IP Rating IP67
Lumen Maintenance L70 = 50,000 Hours


Available Wavelengths

Advanced Illumination White Lights
455nm Royal Blue
Advanced Illumination 470nm Blue Light
470nm Blue
Advanced Illumination 505nm Cyan Light
505nm Cyan
Advanced Illumination 530nm Green Light
530nm Green
Advanced Illumination 590nm Amber Light
590nm Amber
Advanced Illumination 625nm Red Orange Light
625nm Red Orange
Advanced Illumination 660nm Red Light
660nm Red
Advanced Illumination 730nm Infra-Red (IR) Light
730nm Infra-Red (IR)
Advanced Illumination 850nm Infra-Red (IR) Light
850nm Infra-Red (IR)
Advanced Illumination 940nm Infra-Red (IR) Light
940nm Infra-Red (IR)

Additional Wavelengths are available upon request by contacting Machine Vision Direct.

Mechanical Specs

 BL-S050075 EuroBrite Small Backlights Mechanical Specs | Advanced Illumination


Optical Specs

 BL-S050075 EuroBrite Small Backlights Optical Specs | Advanced Illumination

Electrical Specs

 BL-S050075 EuroBrite Small Backlights Electrical Specs | Advanced Illumination

Control Specs

 BL-S050075 EuroBrite Small Backlights Control Specs | Advanced Illumination


Part No Key

 BL-S050075 EuroBrite Small Backlights Part No Key | Advanced Illumination

Advanced Illumination BL-S050075-850 Downloads:

Advanced Illumination BL-S050075-850 Datasheet | Machine Vision Direct
Advanced Illumination BL-S050075-850 CAD PDF | Machine Vision Direct
Advanced Illumination BL-S050075-850 CAD DXF | Machine Vision Direct
Advanced Illumination BL-S050075-850 CAD STEP MODEL | Machine Vision Direct
