Description

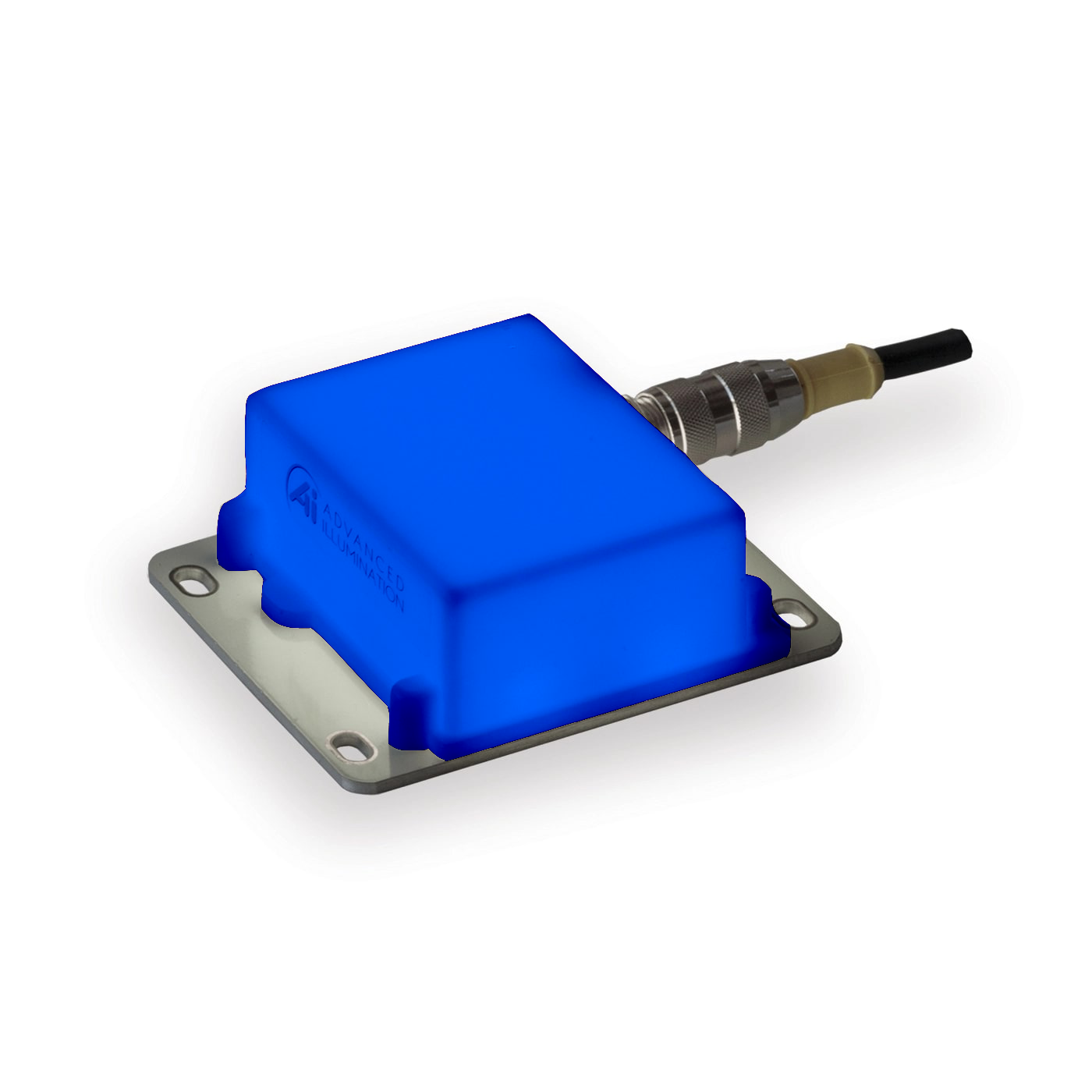

EuroBrite Small Backlights - BL Series
BL-S050075-470 Specifications:
Brand | Advanced Illumination |
Series | BL-S050075 |
Wavelength | 470 |
Color | Blue |
Driver | 0 |
Ingress Protection | IP67 |
Length | 050 mm |
Width | 075 mm |
Weight | 95g |
Can Be Strobed | Yes |
Can Be Overdrive Strobed | Yes |
Can Be Constantly On | Yes |
Can Be Dimmed | Dimmable |
Connection | M12 5 Pole |
Full Description
Our EuroBrite„¢ lineup outdoes the competition in so many ways. With more features at a competitive price point, there™s no better value in machine vision lighting:
Complete built-in control for continuous and strobe modes.
Adaptive Power„¢, a feature of the EuroBrite„¢ lighting controller, utilizes an onboard thermistor to maximize light output in continuous mode.
Adaptive Overdrive,„¢ another feature of the EuroBrite„¢ lighting controller, provides a maximal output pulse in strobe mode regardless of the exposure period.
IP67 sealed enclosure suitable for washdown environments.
Rugged construction that has been tested to withstand over 1000lb.
Industrial grade LEDs providing high-intensity surface illumination of 38klux.
General Specs
Electrical Specifications | ~0.27A |
Normal Operating Temperature | 0 - 60°C |
Weight | 92.53g (3.27oz) |
Standard Cable Information | No cable included; see part number LC2-M12-5-FX or use standard coded 5-pin M12. |
Photobiological Risk Factor |
Exempt Applicable Wavelengths: 850, 940 Group 1 (Low-Risk) Applicable Wavelengths: 455, 470, 505, 530, 590, 625, 660, 730, WHI |
Compliance | CE, RoHS, IEC 62471 |
IP Rating | IP67 |
Lumen Maintenance | L70 = 50,000 Hours |
Available Wavelengths
Wavelength |
Color |
Description |
WHITE | WHITE | |
455 | 455nm Royal Blue | |
470 | 470nm Blue | |
505 | 505nm Cyan | |
530 | 530nm Green | |
590 | 590nm Amber | |
625 | 625nm Red Orange | |
660 | 660nm Red | |
730 | 730nm Infra-Red (IR) | |
850 | 850nm Infra-Red (IR) | |
940 | 940nm Infra-Red (IR) |
Additional Wavelengths are available upon request by contacting Machine Vision Direct.
Mechanical Specs
Optical Specs
Electrical Specs
Control Specs
Part No Key
