- Cognex Dataman 300 Series and Dataman 500 Series Arm
- Not Food Grade
- 7.5" Body Length
- No Air Curtain Face Plate
- Acrylic Viewport
Manufacturer Description: 7.5" body, Dataman 300 & 500, acrylic vp, sealed, PG36
|APG 42D Downloads|
|APG 42D Brochure/Datasheet|
|APG 42D CAD Models|
|(Contact Support@MachineVisionDirect.com for additional drawings)|

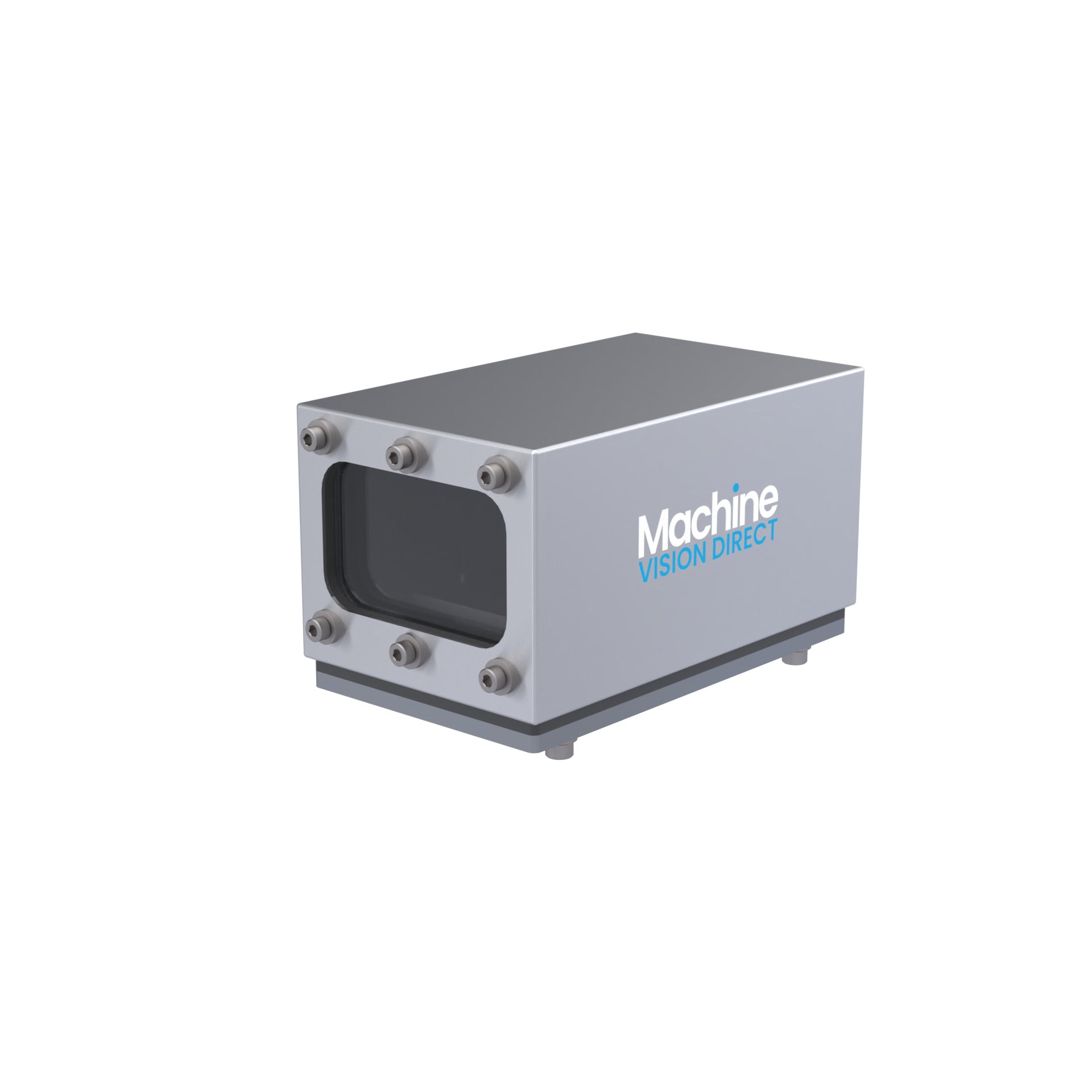

APG 42D NEMA 12, 304 Stainless Steel, for Dust, Dirt, Splashed Water and Oil Mist
The 42D enclosure is a lower cost stainless steel and aluminum housing for your Cognex DataMan 500 or Cognex DataMan 300 camera. It is designed to protect your camera from impacts, dust, dirt, splashed water and idle hands.
The enclosure is highly configurable, with air cooling and air curtain faceplate options.
The standard cable gland at the bottom of the enclosure uses a split insert to provide a watertight seal around one or more cables. The gland allows passage of one or more premade cables without removal of the connectors from the cables.
The enclosure is designed so that once the enclosure cover is removed, the user has full access to the camera and lens, taking the guesswork out of changing focus and f-stop settings.
The standard 42D enclosure allows the lens to be adjusted close to the viewport to reduce reflections.
- Built to provide basic protection
- Supports Cognex DataMan 500 and Cognex DataMan 300 cameras
- Meets NEMA 12 standards
- 304 stainless steel construction
- Camera to viewport distance can be changed to handle long or wide angle lenses
- Comes standard with glass or acrylic viewport
- Work with pre-made cables
- Enclosure cover is constructed of 16 gauge 304 stainless steel, enclosure base is constructed of 1/4″ 6061 aluminum.
- All external fasteners are 18-8 stainless steel.
- Fasteners to mount both the Cognex DataMan 500 and Cognex DataMan 300 cameras are included.
- Enclosure meets NEMA 12 standards when equipped with sealed viewport.
- Cord grip options include: Drillable PG36 37mm cord grip, 1/4″ NPT connectors for air cooling and pressure regulation.
Enclosure also is available with an air curtain faceplate. Call APG for options.
Weight: 3.14 lb.
Optional Pan & Tilt mount is also available.
Note: Contact Support@MachineVisionDirect.com for customization
