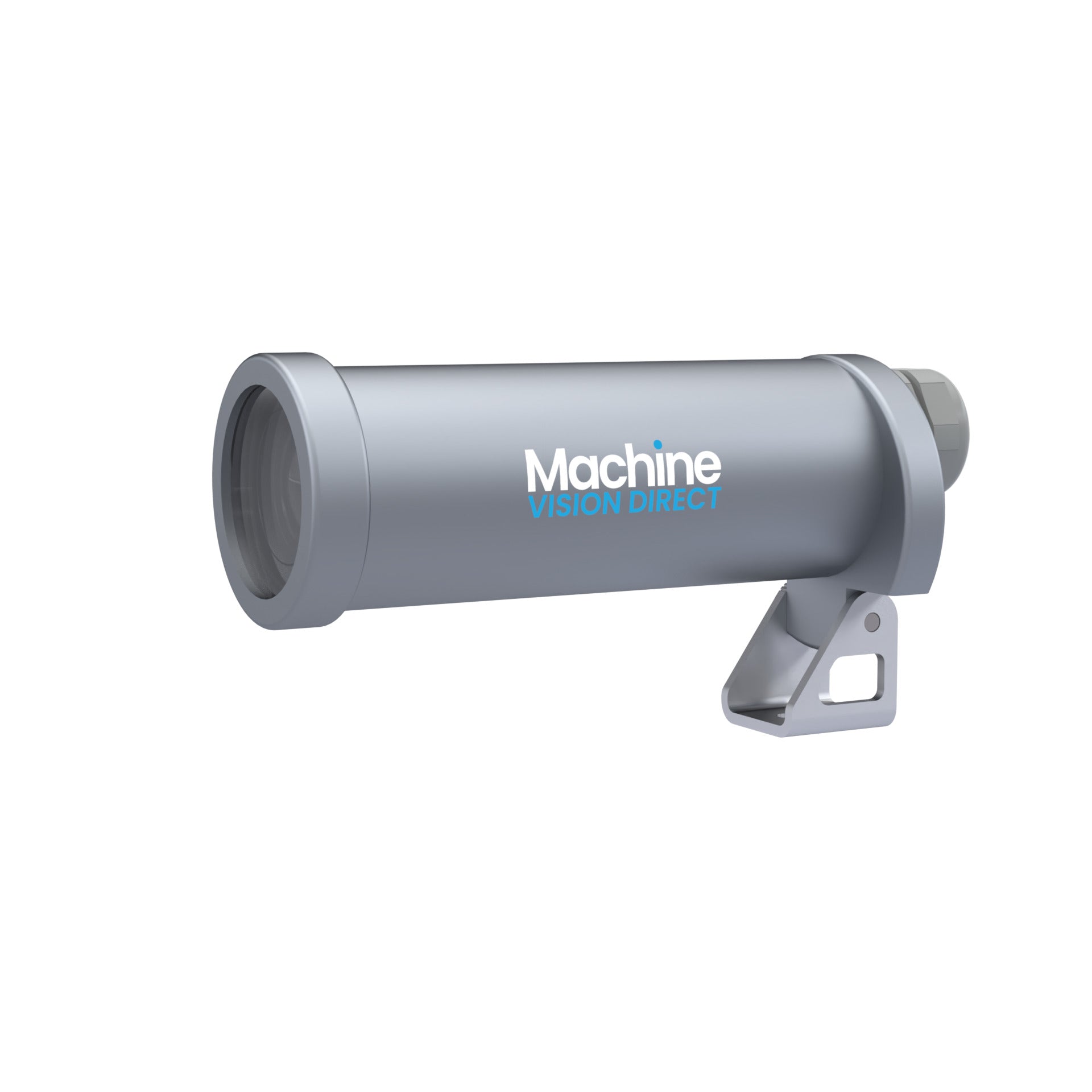

APG 35C-MQ | PG36 Enclosure Clear Hardcoat Anodized Viewport

APG VisionSKU: 35C-MQ
Lead Time: 5-6 Weeks

Price:
Sale price$1,114.50 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

35C SERIES SEALED ENCLOSURE, 9IN BARREL, ANODIZED ALUMINUM, ACRYLIC VP, AIR CURTAIN FACEPLATE, VITON GASKETS, PG36 CABLE GLAND, 33mm & 24mm O.C. ARM, FOR KEYENCE CA-HL08MX & CA-LHT25

APG Vision 35C-MQ

35C-MQ Enclosure Technical Specifications:

Product Line / Series 35C
Class Increased Protection
Brand APG Vision
Body Material Aluminum 6061
Body Finish Clear Hardcoat Anodized
Viewport Material Clear Flowcoat Acrylic
Viewport Finish ABR2
Gasket Material Viton
Washdown No
Corrosive Environment Yes
Food Grade No
Pan & Tilt Capable Yes
Air Features Air Curtain Kit Included, Air Shield Kit Included
Mounting OC Arm 24mm
IP Rating IP68
NEMA Enclosure Rating Not Rated
Cable Gland PG36
Barrel Length 9″
Length 294.6 mm
Width 119.9 mm
Height 153.9 mm
Weight 1980 Grams
