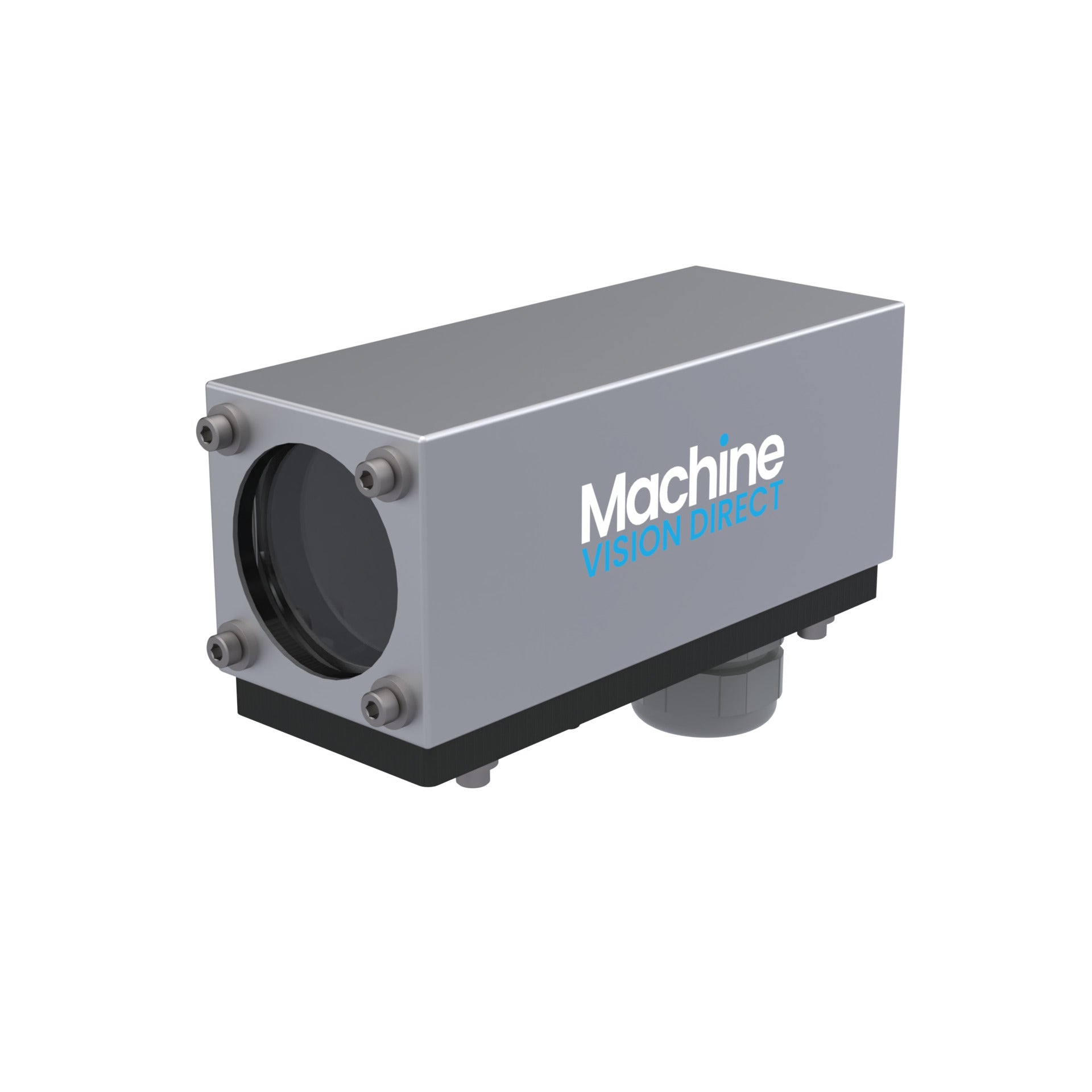

APG 30D-EG | 7.5″ Barrel Enclosure Soda Lime Glass Viewport

APG VisionSKU: 30D-EG

Price:
Sale price$551.36 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

30D SERIES 7.5IN BODY 304 STAINLESS STEEL, ANODIZED ALUMINUM BASE, GLASS VP, EPDM FOAM GASKET, PG36 CABLE GLAND, DOVETAIL ARM

APG Vision 30D-EG

30D-EG Enclosure Technical Specifications:

Product Line / Series 30D
Class Basic Protection
Brand APG Vision
Body Material Stainless Steel 304
Body Finish Burnished
Viewport Material Soda Lime Glass
Viewport Finish None
Gasket Material EPDM Foam
Washdown No
Corrosive Environment No
Food Grade No
Pan & Tilt Capable Yes
Air Features Air Curtain Capable
Mounting Dovetail Arm
IP Rating IP64
NEMA Enclosure Rating NEMA 12
Cable Gland PG29
Barrel Length 7.5″
Length 198.3 mm
Width 76.2 mm
Height 123.3 mm
Weight 1205 Grams
