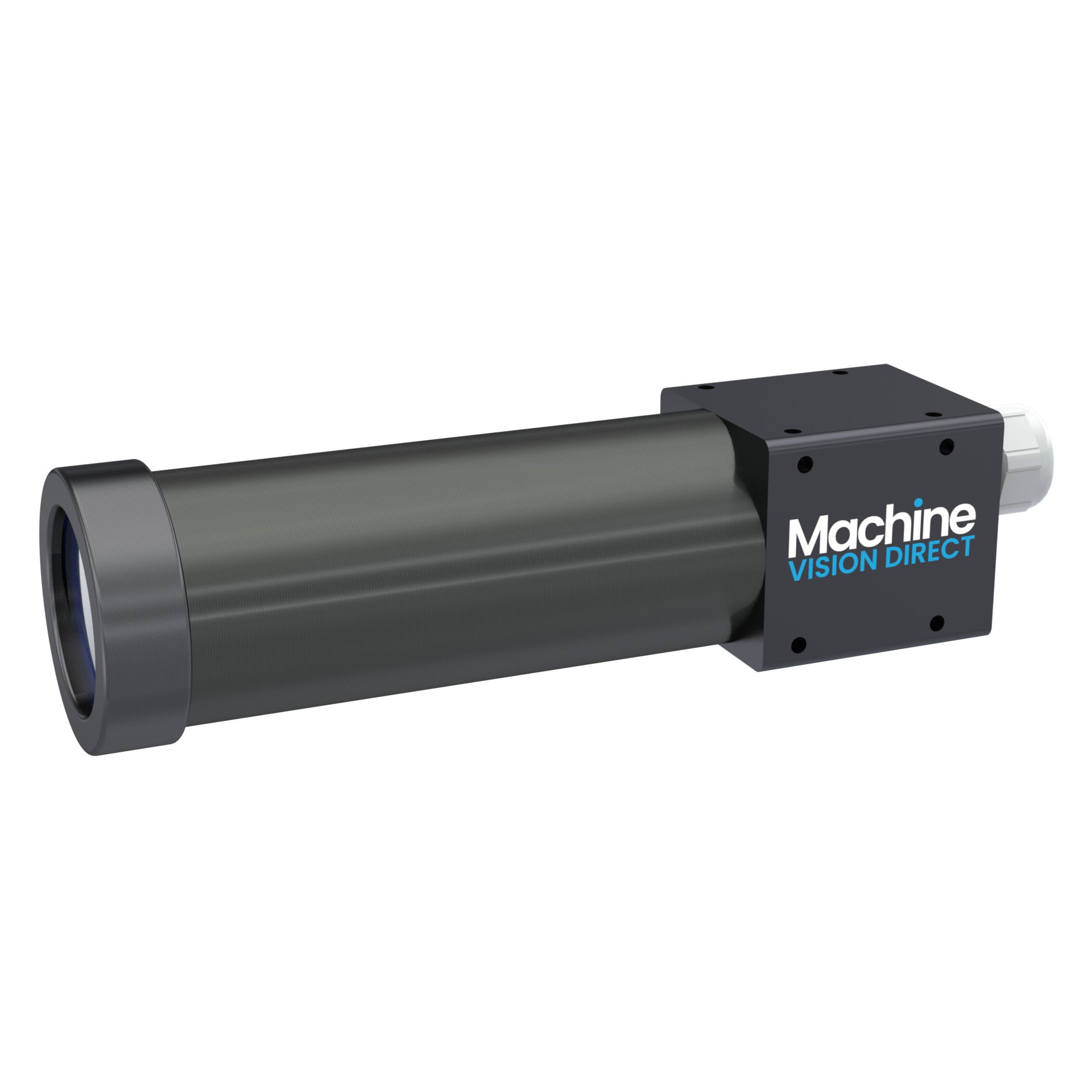

APG 22C-BI | PG16 Enclosure Clear Hardcoat Anodized Viewport

APG VisionSKU: 22C-BI
Lead Time: 5-6 Weeks

Price:
Sale price$623.54 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

22C SERIES ENCLOSURE, 5.75IN BARREL, 6061 ANODIZED ALUMINUM, TEMPERED GLASS VP, PG16 CABLE GLAND, AIR CURTAIN FACEPLATE GASKET, UNIVERSAL ARM

APG Vision 22C-BI

22C-BI Enclosure Technical Specifications:

Product Line / Series 22C
Class Basic Protection
Brand APG Vision
Body Material Aluminum 6061
Body Finish Clear Hardcoat Anodized
Viewport Material Tempered Soda Lime Glass
Viewport Finish None
Gasket Material Viton/EPDM Foam
Washdown No
Corrosive Environment No
Food Grade No
Pan & Tilt Capable Yes
Air Features Air Curtain Kit Included
Mounting Universal Arm
IP Rating IP52
NEMA Enclosure Rating NEMA 12
Cable Gland PG16
Barrel Length 5.7″
Length 247.8 mm
Width 63.5 mm
Height 63.5 mm
Weight 635 Grams
