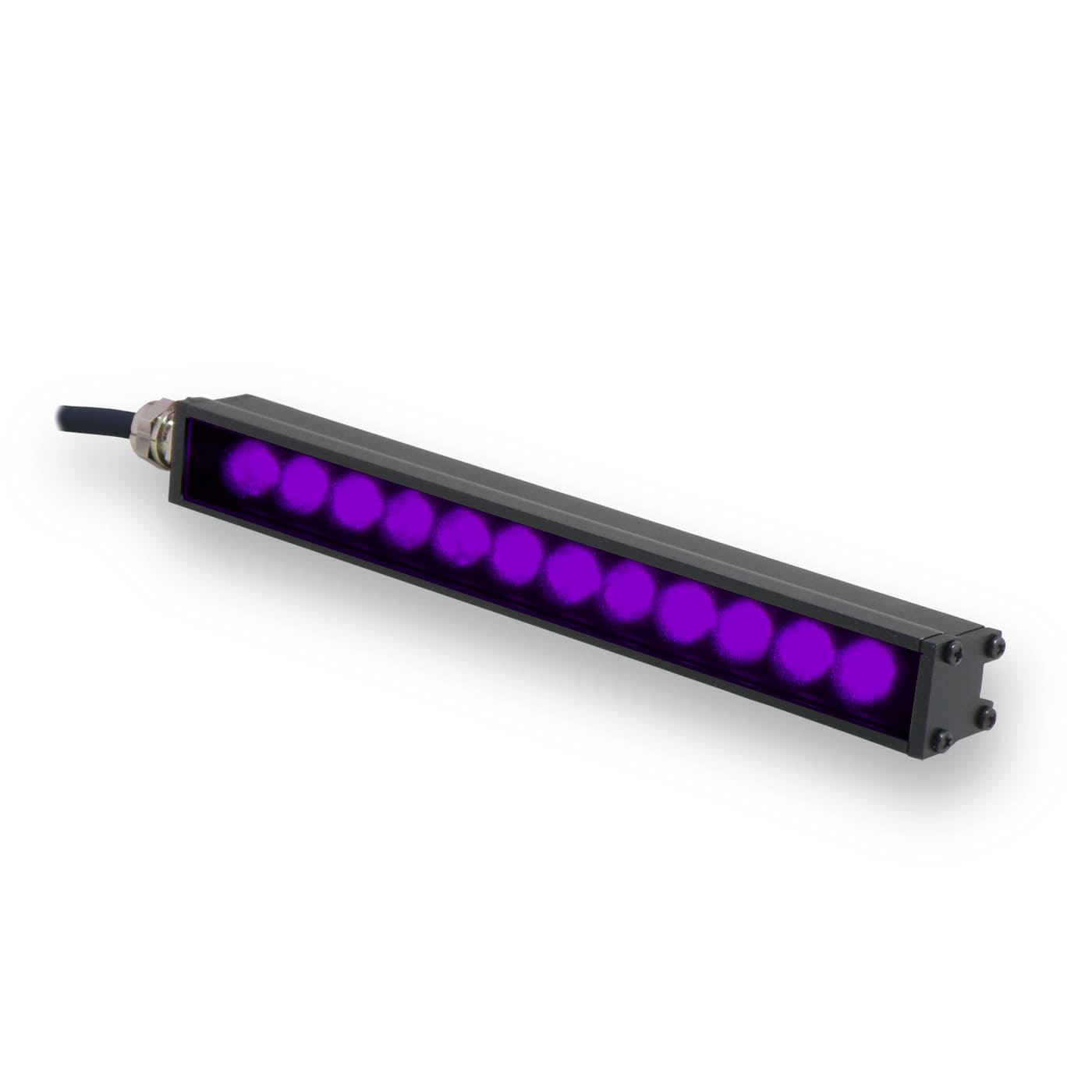

AL295 MicroBrite Bar Light, 225 mm

Advanced IlluminationSKU: AL295M-225365I3S
Lead time: 2 Weeks

Color: UV (365nm)
Driver: ICS 3S (I3S)
Lens: MEDIUM
Price:
Sale price$2,037.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

MicroBrite Bar Lights - AL Series

AL295-225 Specifications:

Brand Advanced Illumination
Series AL295
Wavelength VARIES
Color VARIES
Driver I3S
Ingress Protection IP50
Length 225 mm
Lens MEDIUM
Weight 906g
Can Be Strobed Yes
Can Be Overdrive Strobed Yes
Can Be Constantly On Yes
Can Be Dimmed Dimmable
Connection 2M Flying Lead

Full Description

Part of the MicroBrite„¢ family of high performance, compact machine vision lights.

This bar light outperforms the competition with high intensity output of 73 kLux at a working distance of 100mm.

Available in a broad range of wavelengths with expandable sizes in 3� (75mm) increments up to 18� (450mm).

General Specs

Electrical Specifications

0.15A Max Per 75mm

0.34A Max Per 75mm

0.27A Max Per 75mm
Normal Operating Temperature

0 - 60°C

Weight Varies by size; see page 2
Standard Cable Information 2 m long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain.
Photobiological Risk Factor Exempt Applicable Wavelengths: 850, 940
Group 1 (Low-Risk) Applicable Wavelengths: 505, 530, 590, 625, 660, 730, WHI
Group 2 (Moderate-Risk) Applicable Wavelengths: 365, 375, 385, 395, 405, 455, 470
Compliance CE, RoHS, IEC 62471
IP Rating IP50
Lumen Maintenance L70 = 50,000 Hours



Available Wavelengths

Wavelength
Color
Description

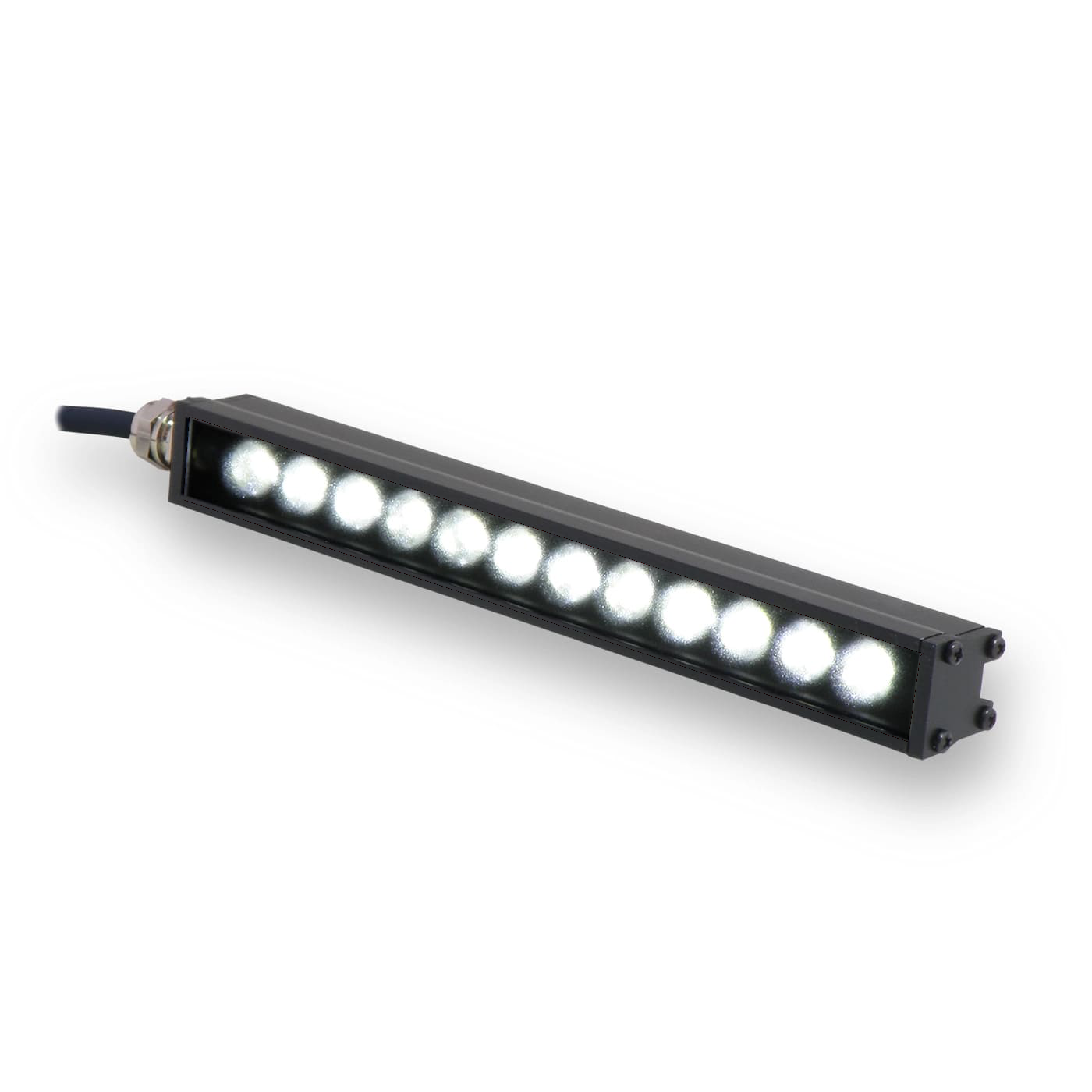

WHITE
Advanced Illumination White Lights
WHITE
365
Advanced Illumination 365nm Ultra-Violet (UV) Light
365nm Ultra-Violet (UV)
375
Advanced Illumination 375nm Ultra-Violet (UV) Light
375nm Ultra-Violet (UV)
385
Advanced Illumination 385nm Ultra-Violet (UV) Light
385nm Ultra-Violet (UV)
395
Advanced Illumination 395nm Ultra-Violet (UV) Light
395nm Ultra-Violet (UV)

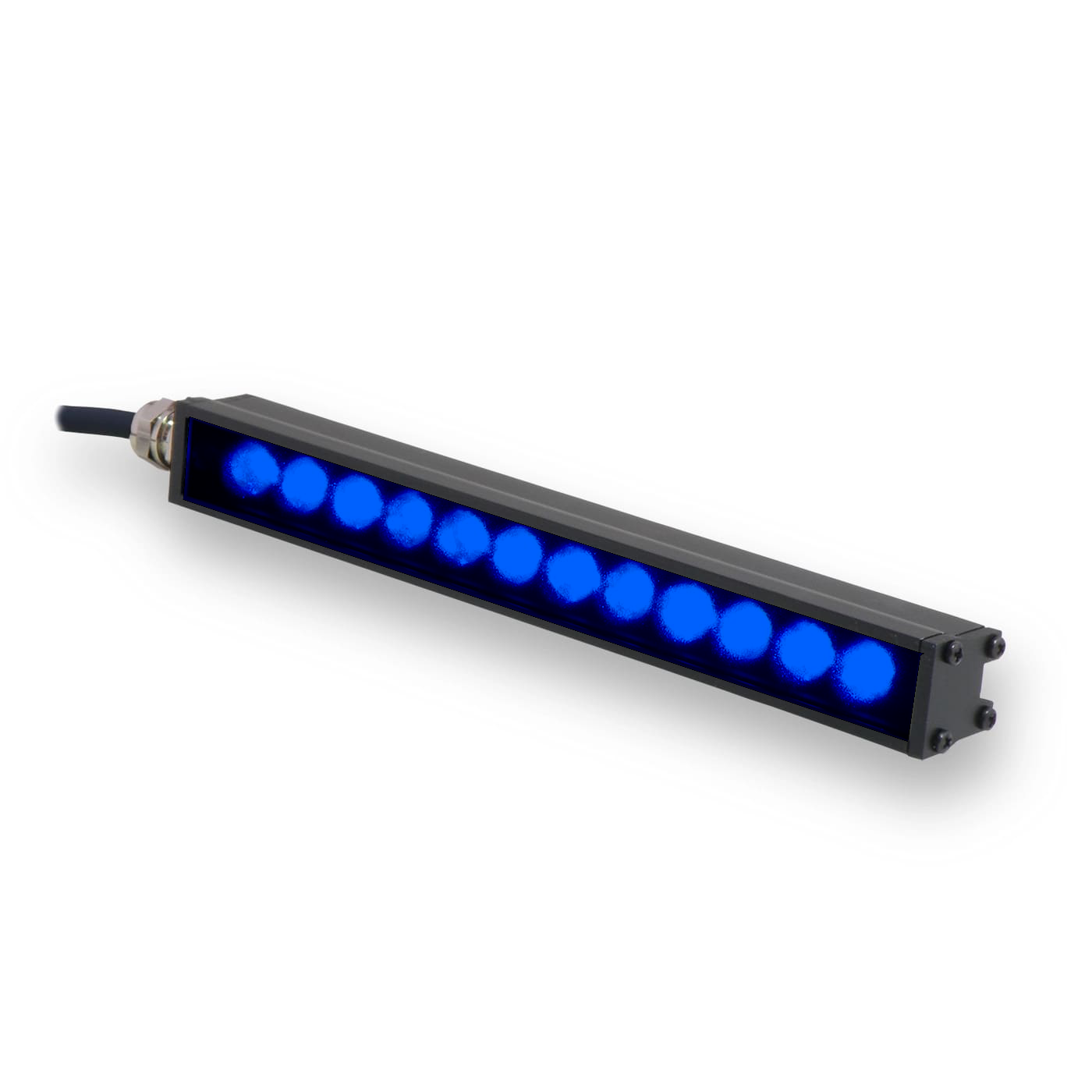

455
455nm Royal Blue
470
Advanced Illumination 470nm Blue Light
470nm Blue
505
Advanced Illumination 505nm Cyan Light
505nm Cyan
530
Advanced Illumination 530nm Green Light
530nm Green
590
Advanced Illumination 590nm Amber Light
590nm Amber
625
Advanced Illumination 625nm Red Orange Light
625nm Red Orange
660
Advanced Illumination 660nm Red Light
660nm Red
730
Advanced Illumination 730nm Infra-Red (IR) Light
730nm Infra-Red (IR)
850
Advanced Illumination 850nm Infra-Red (IR) Light
850nm Infra-Red (IR)
940
Advanced Illumination 940nm Infra-Red (IR) Light
940nm Infra-Red (IR)

Additional Wavelengths are available upon request by contacting Machine Vision Direct.

Mechanical Specs

 AL295 MicroBrite Bar Lights Mechanical Specs | Advanced Illumination



Optical Specs

 AL295 MicroBrite Bar Lights Optical Specs | Advanced Illumination
AL295 MicroBrite Bar Lights Optical Specs | Advanced Illumination


Electrical Specs

 AL295 MicroBrite Bar Lights Electrical Specs | Advanced Illumination

Control Specs

 AL295 MicroBrite Bar Lights Control Specs | Advanced Illumination



Part No Key

 AL295 MicroBrite Bar Lights Part No Key | Advanced Illumination

Advanced Illumination AL295-225 Downloads:

Advanced Illumination AL295-225 Datasheet | Machine Vision Direct
Advanced Illumination AL295-225 CAD PDF | Machine Vision Direct
Advanced Illumination AL295-225 CAD DXF | Machine Vision Direct
Advanced Illumination AL295-225 CAD STEP MODEL | Machine Vision Direct
