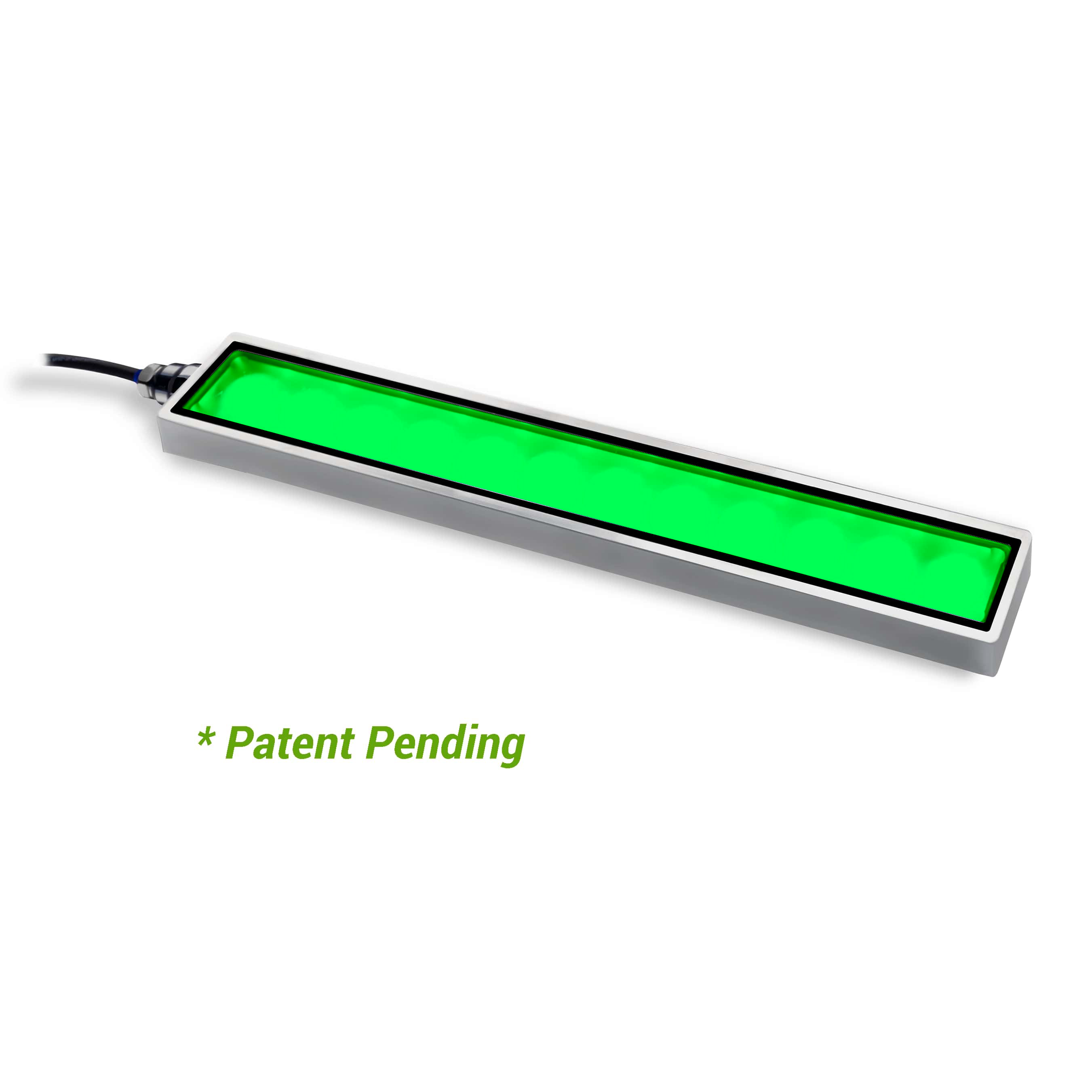

AL247N12-50524 UltraSeal Bar Light, 505nm Cyan, 12 in, 24 Volt Driver

Advanced IlluminationSKU: AL247N12-50524
Lead Time: 2 Weeks

Price:
Sale price$1,384.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

UltraSeal Bar Lights - AL Series

AL247N12-50524 Specifications:

Brand Advanced Illumination
Series AL247
Wavelength 505
Color Cyan
Driver 24
Ingress Protection IP69K
Length 12 in
Lens NARROW
Weight 657g
Can Be Strobed No
Can Be Overdrive Strobed No
Can Be Constantly On Yes
Can Be Dimmed Not Dimmable
Connection 2M Flying Lead

Full Description

UltraSeal Bar Lights are ideal for hygienic inspection environments, aseptic manufacturing, and food and beverage applications.  They are IP69K certified to withstand the harshest environments.

High-intensity Bar Lights feature the UltraSeal standard proprietary nickel finish, providing superior corrosion resistance and improved thermal conductivity in comparison to stainless steel.

General Specs

Electrical Specifications

0.37A per 6 inches

0.38A per 6 inches
Normal Operating Temperature

0-60 deg C

Weight 11.2oz (317.5g) per 6 inches
Standard Cable Information 2 M long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain
Photobiological Risk Factor Exempt Applicable Wavelengths: 850, 940
Group 1 (Low-Risk) Applicable Wavelengths: 455, 470, 505, 530, 590, 625, 666, 730, WHI
Compliance CE, RoHS, IEC 62471
IP Rating IP69K
Lumen Maintenance L70 = 50,000 Hours



Available Wavelengths

Wavelength
Color
Description
WHITE
Advanced Illumination White Lights
WHITE
455
455nm Royal Blue
470
Advanced Illumination 470nm Blue Light
470nm Blue
505
Advanced Illumination 505nm Cyan Light
505nm Cyan
530
Advanced Illumination 530nm Green Light
530nm Green
590
Advanced Illumination 590nm Amber Light
590nm Amber
625
Advanced Illumination 625nm Red Orange Light
625nm Red Orange
660
Advanced Illumination 660nm Red Light
660nm Red
730
Advanced Illumination 730nm Infra-Red (IR) Light
730nm Infra-Red (IR)
850
Advanced Illumination 850nm Infra-Red (IR) Light
850nm Infra-Red (IR)
940
Advanced Illumination 940nm Infra-Red (IR) Light
940nm Infra-Red (IR)

Additional Wavelengths are available upon request by contacting Machine Vision Direct.

Mechanical Specs

 BL Series Back-lit Backlights Mechanical Specs | Advanced Illumination



 Optical Specs

 BL Series Back-lit Backlights Optical Specs | Advanced Illumination


Electrical Specs

 BL Series Back-lit Backlights Electrical Specs | Advanced Illumination

Control Specs

 BL Series Back-lit Backlights Control Specs | Advanced Illumination



Part No Key

 BL Series Back-lit Backlights Part No Key | Advanced Illumination

Advanced Illumination AL247N12-50524 Downloads:

Advanced Illumination AL247N12-50524 Datasheet | Machine Vision Direct
Advanced Illumination AL247N12-50524 CAD PDF | Machine Vision Direct
Advanced Illumination AL247N12-50524 CAD DXF | Machine Vision Direct
Advanced Illumination AL247N12-50524 CAD STEP MODEL | Machine Vision Direct
