Description

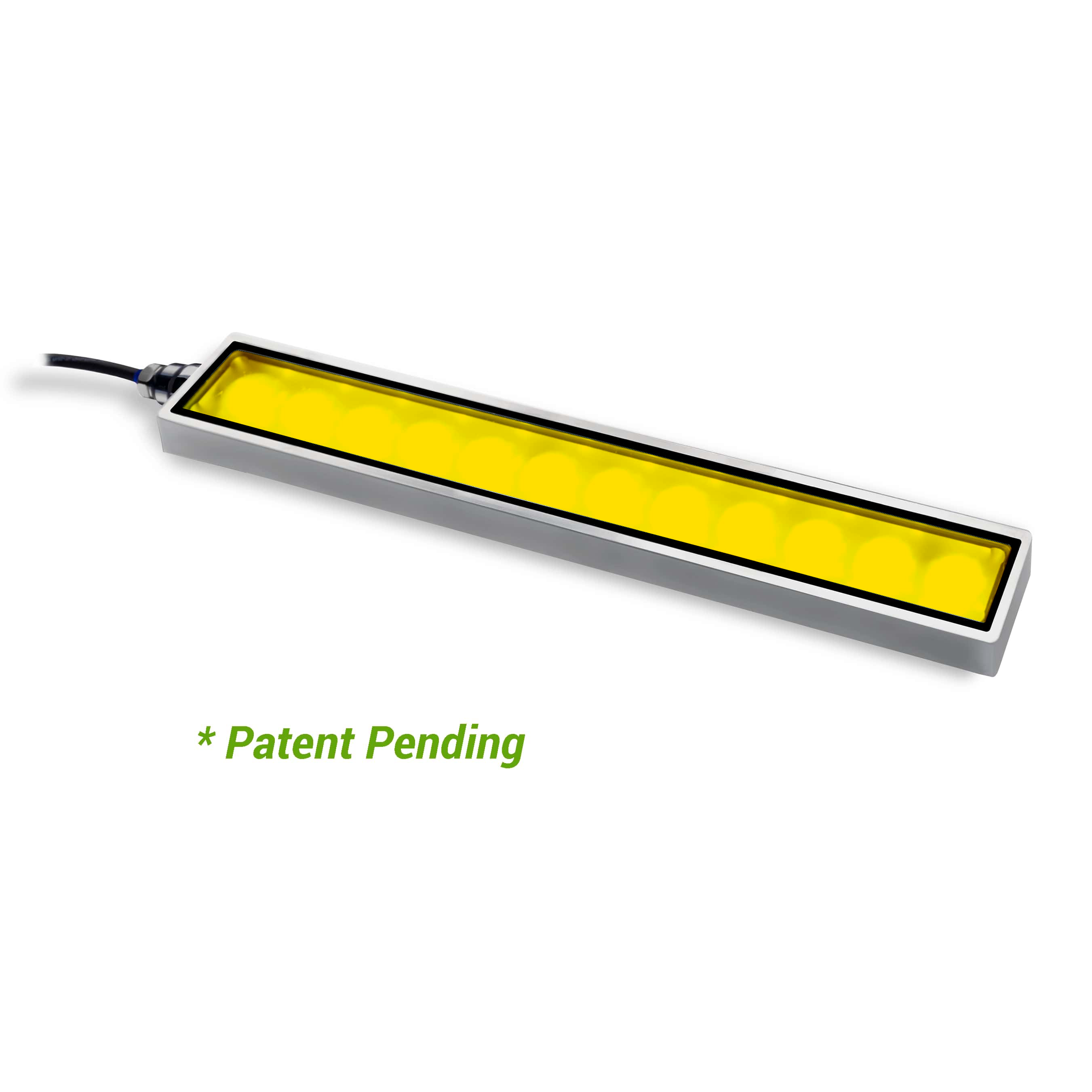

UltraSeal Bar Lights - AL Series
AL247M06-59024 Specifications:
Brand | Advanced Illumination |
Series | AL247 |
Wavelength | 590 |
Color | Amber |
Driver | 24 |
Ingress Protection | IP69K |
Length | 06 in |
Lens | MEDIUM |
Weight | 417g |
Can Be Strobed | No |
Can Be Overdrive Strobed | No |
Can Be Constantly On | Yes |
Can Be Dimmed | Not Dimmable |
Connection | 2M Flying Lead |
Full Description
UltraSeal Bar Lights are ideal for hygienic inspection environments, aseptic manufacturing, and food and beverage applications. They are IP69K certified to withstand the harshest environments.
High-intensity Bar Lights feature the UltraSeal standard proprietary nickel finish, providing superior corrosion resistance and improved thermal conductivity in comparison to stainless steel.
General Specs
Electrical Specifications |
0.37A per 6 inches 0.38A per 6 inches |
Normal Operating Temperature |
0-60 deg C |
Weight | 11.2oz (317.5g) per 6 inches |
Standard Cable Information | 2 M long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain |
Photobiological Risk Factor |
Exempt Applicable Wavelengths: 850, 940 Group 1 (Low-Risk) Applicable Wavelengths: 455, 470, 505, 530, 590, 625, 666, 730, WHI |
Compliance | CE, RoHS, IEC 62471 |
IP Rating | IP69K |
Lumen Maintenance | L70 = 50,000 Hours |
Available Wavelengths
Wavelength |
Color |
Description |
WHITE | WHITE | |
455 | 455nm Royal Blue | |
470 | 470nm Blue | |
505 | 505nm Cyan | |
530 | 530nm Green | |
590 | 590nm Amber | |
625 | 625nm Red Orange | |
660 | 660nm Red | |
730 | 730nm Infra-Red (IR) | |
850 | 850nm Infra-Red (IR) | |
940 | 940nm Infra-Red (IR) |
Additional Wavelengths are available upon request by contacting Machine Vision Direct.
Mechanical Specs
Optical Specs
Electrical Specs
Control Specs
Part No Key
