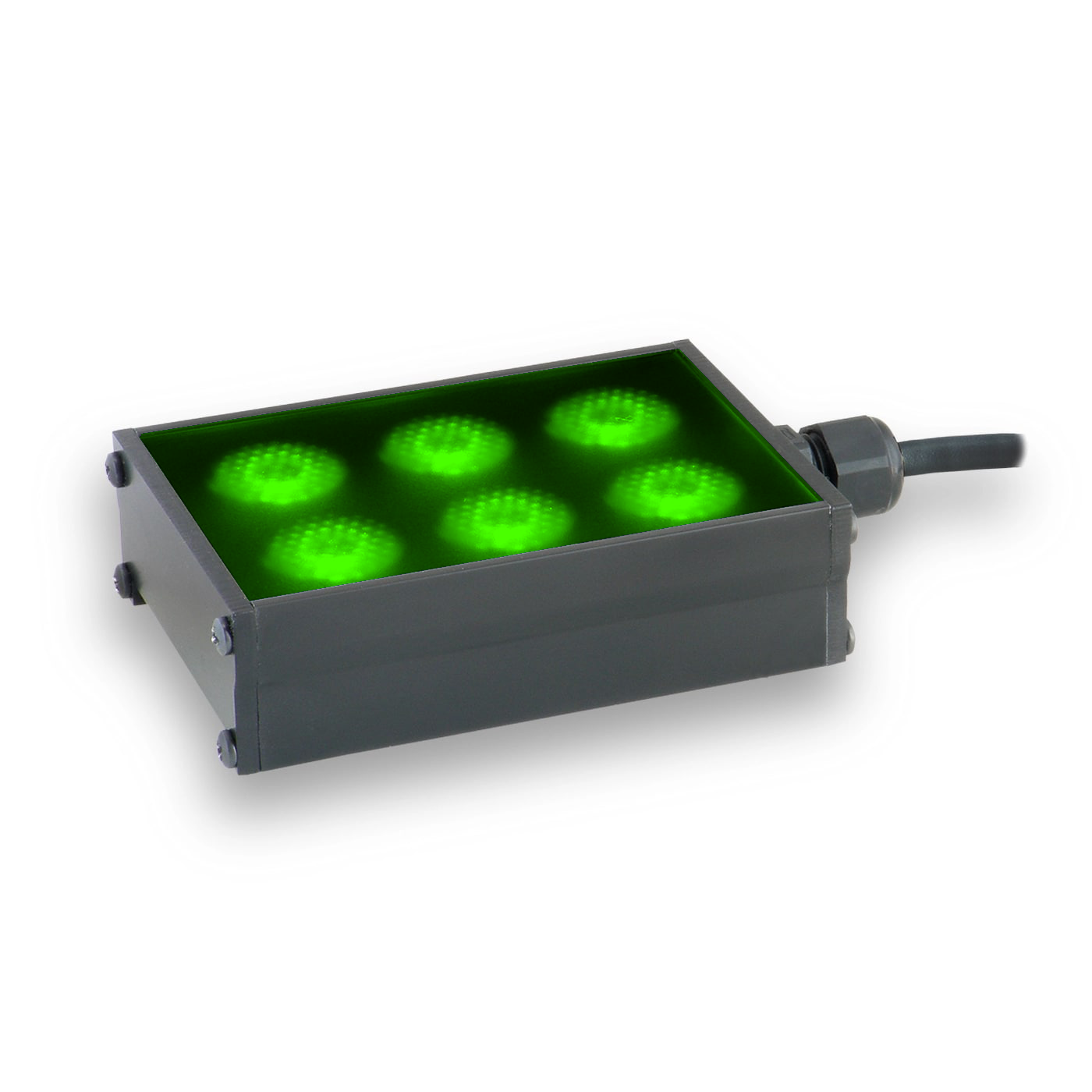

AL143W-53024 2x3 Spot Light, Green (530nm), Wide Lens, 24 Volt Driver

Advanced IlluminationSKU: AL143W-53024
Lead time: 2 Weeks

Price:
Sale price$612.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00

Description

2x3 Spot Lights - AL Series

AL143W-53024 Specifications:

Brand Advanced Illumination
Series AL143
Wavelength 530
Color Green
Driver 24
Ingress Protection IP50
Lens Wide
Weight 141.8g
Can Be Strobed No
Can Be Overdrive Strobed No
Can Be Constantly On Yes
Can Be Dimmed 0
Connection 2M Flying Lead

Full Description

The AL143, 2×3 Spot Light is available in a wide range of wavelengths with multiple lens options.

Ideal Illumination for medium working distances.

Convenient mounting with an M4 nut channel.

Washdown version is available

General Specs

Electrical Specifications 0.36 A
Normal Operating Temperature

0 - 60°C

Weight 141.8g (5oz)
Standard Cable Information 2 m long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain.
Photobiological Risk Factor Exempt Applicable Wavelengths: 850, 940
Group 1 (Low-Risk) Applicable Wavelengths: 455, 470, 505, 530, 590, 625, 660, 730, WHI
Group 2 (Moderate-Risk) Applicable Wavelengths: 365, 375, 385, 395, 405
Compliance CE, RoHS, IEC 62471
IP Rating IP65 Sealed, IP50 Unsealed
Lumen Maintenance L70 = 50,000 Hours



Available Wavelengths

Wavelength
Color
Description
WHITE
Advanced Illumination White Lights
WHITE
365
Advanced Illumination 365nm Ultra-Violet (UV) Light
365nm Ultra-Violet (UV)
375
Advanced Illumination 375nm Ultra-Violet (UV) Light
375nm Ultra-Violet (UV)
385
Advanced Illumination 385nm Ultra-Violet (UV) Light
385nm Ultra-Violet (UV)
395
Advanced Illumination 395nm Ultra-Violet (UV) Light
395nm Ultra-Violet (UV)
455
455nm Royal Blue
470
Advanced Illumination 470nm Blue Light
470nm Blue
505
Advanced Illumination 505nm Cyan Light
505nm Cyan
530
Advanced Illumination 530nm Green Light
530nm Green
590
Advanced Illumination 590nm Amber Light
590nm Amber
625
Advanced Illumination 625nm Red Orange Light
625nm Red Orange
660
Advanced Illumination 660nm Red Light
660nm Red
730
Advanced Illumination 730nm Infra-Red (IR) Light
730nm Infra-Red (IR)
850
Advanced Illumination 850nm Infra-Red (IR) Light
850nm Infra-Red (IR)
940
Advanced Illumination 940nm Infra-Red (IR) Light
940nm Infra-Red (IR)

Additional Wavelengths are available upon request by contacting Machine Vision Direct.

Mechanical Specs

 AL143 2x3 Spot Light Mechanical Specs | Advanced IlluminationAL143 2x3 Spot Light Mechanical Specs | Advanced Illumination



Optical Specs

AL143 2x3 Spot Light Optical Specs | Advanced IlluminationAL143 2x3 Spot Light Optical Specs | Advanced Illumination


Electrical Specs

 AL143 2x3 Spot Light Electrical Specs | Advanced Illumination

Control Specs

 AL143 2x3 Spot Light Control Specs | Advanced Illumination



Part No Key

 AL143 2x3 Spot Light Part No Key | Advanced Illumination

Advanced Illumination AL143W-53024 Downloads:

Advanced Illumination AL143W-53024 Datasheet | Machine Vision Direct
Advanced Illumination AL143W-53024 CAD PDF | Machine Vision Direct
Advanced Illumination AL143W-53024 CAD DXF | Machine Vision Direct
Advanced Illumination AL143W-53024 CAD STEP MODEL | Machine Vision Direct
