Description

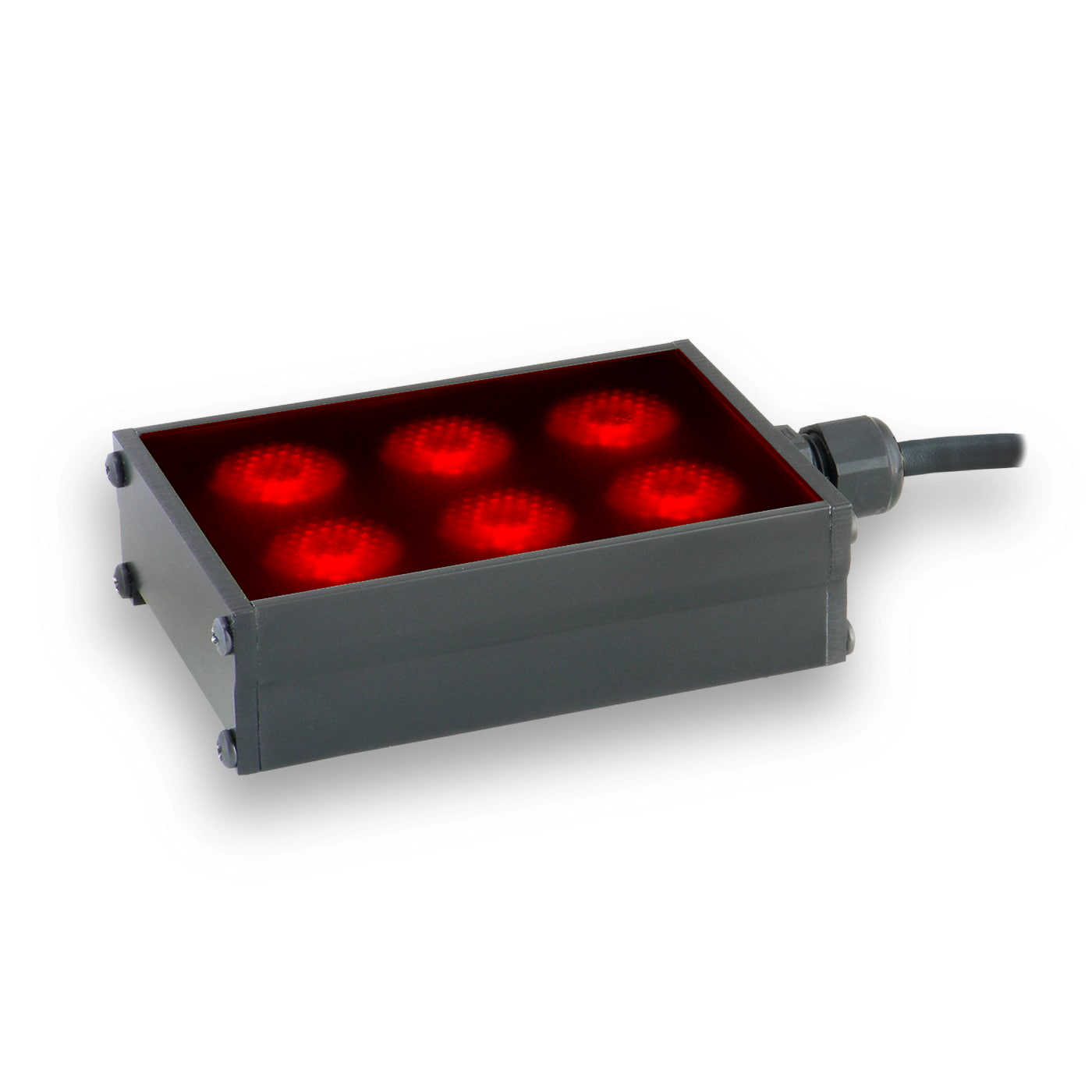

2x3 Spot Lights - AL Series
AL143M-660I3S Specifications:
Brand | Advanced Illumination |
Series | AL143 |
Wavelength | 660 |
Color | Red |
Driver | I3S |
Ingress Protection | IP50 |
Lens | Medium |
Weight | 141.8g |
Can Be Strobed | Yes |
Can Be Overdrive Strobed | Yes |
Can Be Constantly On | Yes |
Can Be Dimmed | Dimmable |
Connection | 2M Flying Lead |
Full Description
The AL143, 2×3 Spot Light is available in a wide range of wavelengths with multiple lens options.
Ideal Illumination for medium working distances.
Convenient mounting with an M4 nut channel.
Washdown version is available
General Specs
Electrical Specifications | 0.36 A |
Normal Operating Temperature |
0 - 60°C |
Weight | 141.8g (5oz) |
Standard Cable Information | 2 m long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain. |
Photobiological Risk Factor |
Exempt Applicable Wavelengths: 850, 940 Group 1 (Low-Risk) Applicable Wavelengths: 455, 470, 505, 530, 590, 625, 660, 730, WHI Group 2 (Moderate-Risk) Applicable Wavelengths: 365, 375, 385, 395, 405 |
Compliance | CE, RoHS, IEC 62471 |
IP Rating | IP65 Sealed, IP50 Unsealed |
Lumen Maintenance | L70 = 50,000 Hours |
Available Wavelengths
Wavelength |
Color |
Description |
WHITE |
![]() |
WHITE |
365 |
![]() |
365nm Ultra-Violet (UV) |
375 |
![]() |
375nm Ultra-Violet (UV) |
385 |
![]() |
385nm Ultra-Violet (UV) |
395 |
![]() |
395nm Ultra-Violet (UV) |
455 |
![]() |
455nm Royal Blue |
470 |
![]() |
470nm Blue |
505 |
![]() |
505nm Cyan |
530 |
![]() |
530nm Green |
590 |
![]() |
590nm Amber |
625 |
![]() |
625nm Red Orange |
660 |
![]() |
660nm Red |
730 |
![]() |
730nm Infra-Red (IR) |
850 |
![]() |
850nm Infra-Red (IR) |
940 |
![]() |
940nm Infra-Red (IR) |
Additional Wavelengths are available upon request by contacting Machine Vision Direct.
Mechanical Specs
![]() ![]() |
Optical Specs
![]() ![]() |
Electrical Specs
![]() |
Control Specs
![]() |
Part No Key
![]() |
Advanced Illumination AL143M-660I3S Downloads:
![]() |
|
