AL-S025300 EuroBrite Bar Light, 300 mm

Advanced IlluminationSKU: AL-S025300M-455
Lead time: 1 Week

Color: Royal Blue (455nm)
Driver: EuroBrite
Lens: MEDIUM
Price:
Sale price$379.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00

Description

EuroBrite Bar Lights - AL Series

AL-S025300 Specifications:

Brand Advanced Illumination
Series AL-S025300
Wavelength VARIES
Color VARIES
Driver 0
Ingress Protection IP67
Length 300 mm
Lens MEDIUM
Weight 250g
Can Be Strobed Yes
Can Be Overdrive Strobed Yes
Can Be Constantly On Yes
Can Be Dimmed Dimmable
Connection M12 5 Pole

Full Description

Our EuroBrite„¢ lineup provides industry leading technology with value pricing for an unmatched performance / price ratio:

  • Complete built-in control for continuous and strobe modes.
  • Adaptive Power„¢, a feature of the EuroBrite„¢ lighting controller, utilizes an onboard thermistor to maximize light output in continuous mode.
  • Adaptive Overdrive,„¢ another feature of the EuroBrite„¢ lighting controller, provides a maximal output pulse in strobe mode regardless of the exposure period.
  • IP67 sealed enclosure suitable for washdown environments.
  • Rugged construction that has been tested to withstand over 1000lb.
  • Industrial grade LEDs providing high-intensity illumination of 45klux (working distance of 200mm).
  • Daisy chain up to 4 for a combined length of 48�.

General Specs

Electrical Specifications ~0.36A
Input Voltage Range 24V nom. (min 22/max 28)
Maximum Input Current

0.42-0.49A

Strobe/On-Off Control

Up to 5X overdrive, active high

Analog Intensity Control

Analog 0.7-10V; 0.7V=10% 10V=100%

Trigger-to-Pulse Latency

10μsec

Normal Operating Temperature

0 - 60°C

Weight 245g (10.37oz)
Standard Cable Information No cable included; see part number LC2-M12-5-FX and LC.5-M12-5-FM or use standard coded 5-pin M12.
Photobiological Risk Factor Exempt Applicable Wavelengths: 850, 940
Group 1 (Low-Risk) Applicable Wavelengths: 455, 470, 505, 530, 590, 625, 660, 730, WHI
Compliance CE, RoHS, IEC 62471
IP Rating IP67
Lumen Maintenance L70 = 50,000 Hours



Available Wavelengths

Wavelength
Color
Description

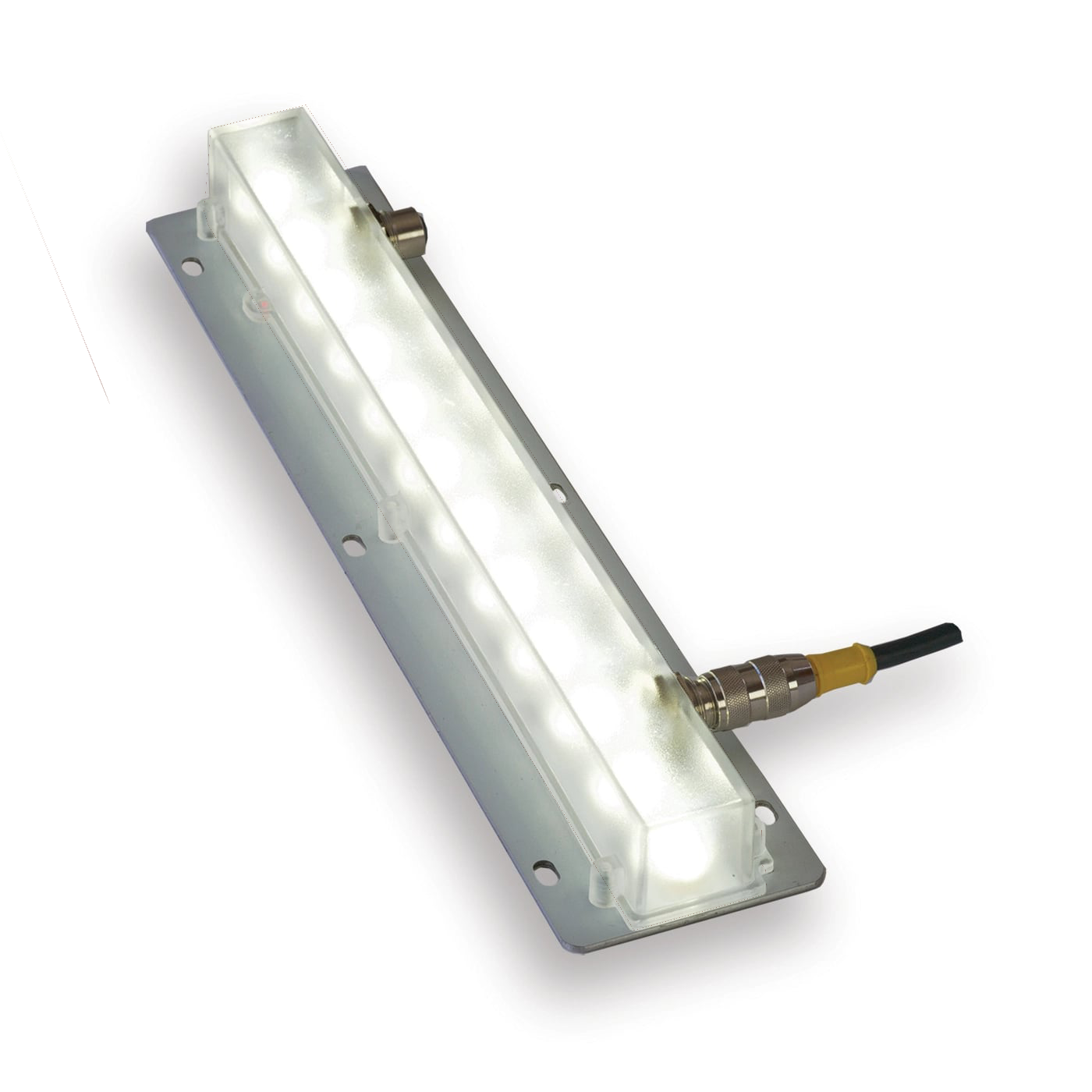

WHITE
Advanced Illumination White Lights
WHITE
455

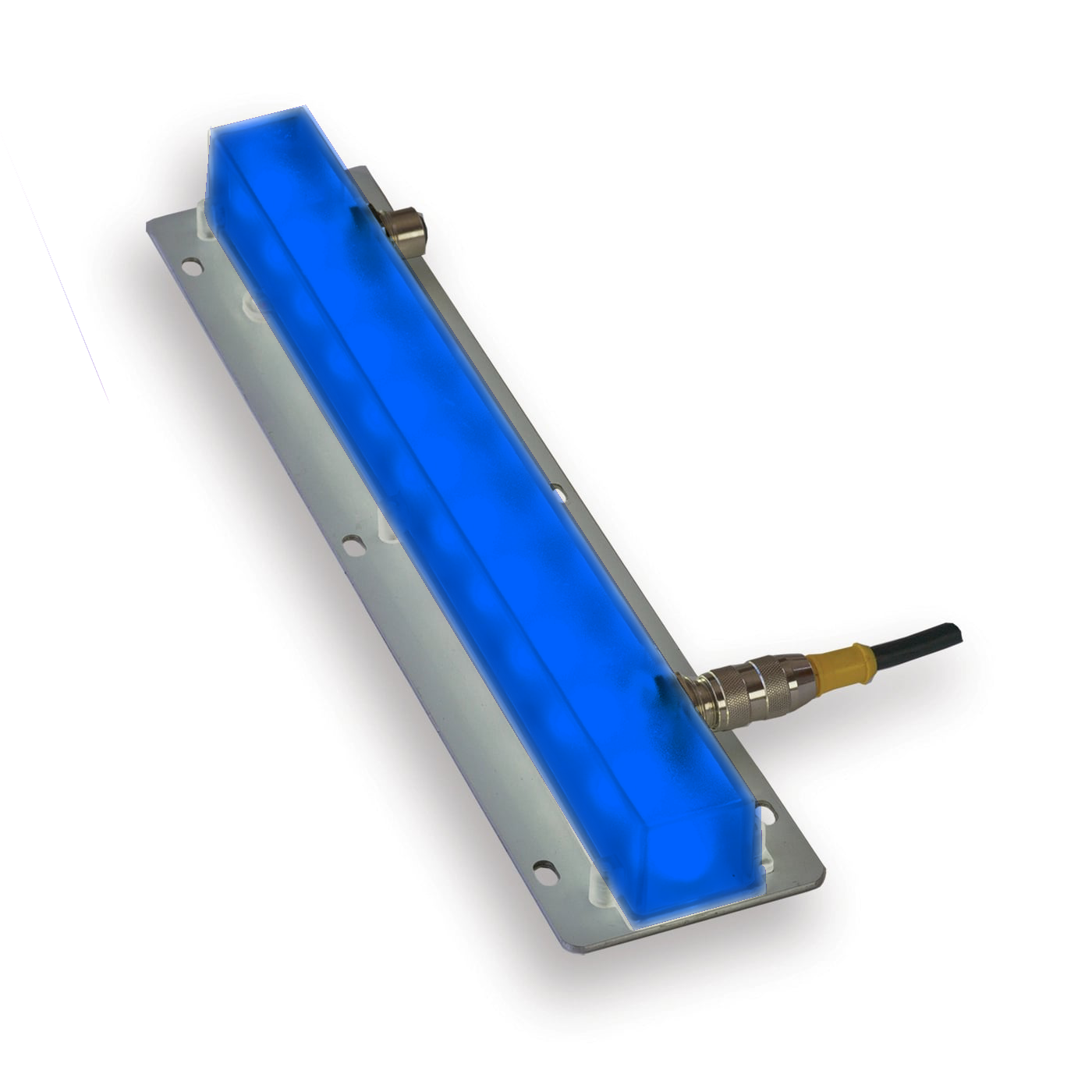

455nm Royal Blue
470
Advanced Illumination 470nm Blue Light
470nm Blue
505
Advanced Illumination 505nm Cyan Light

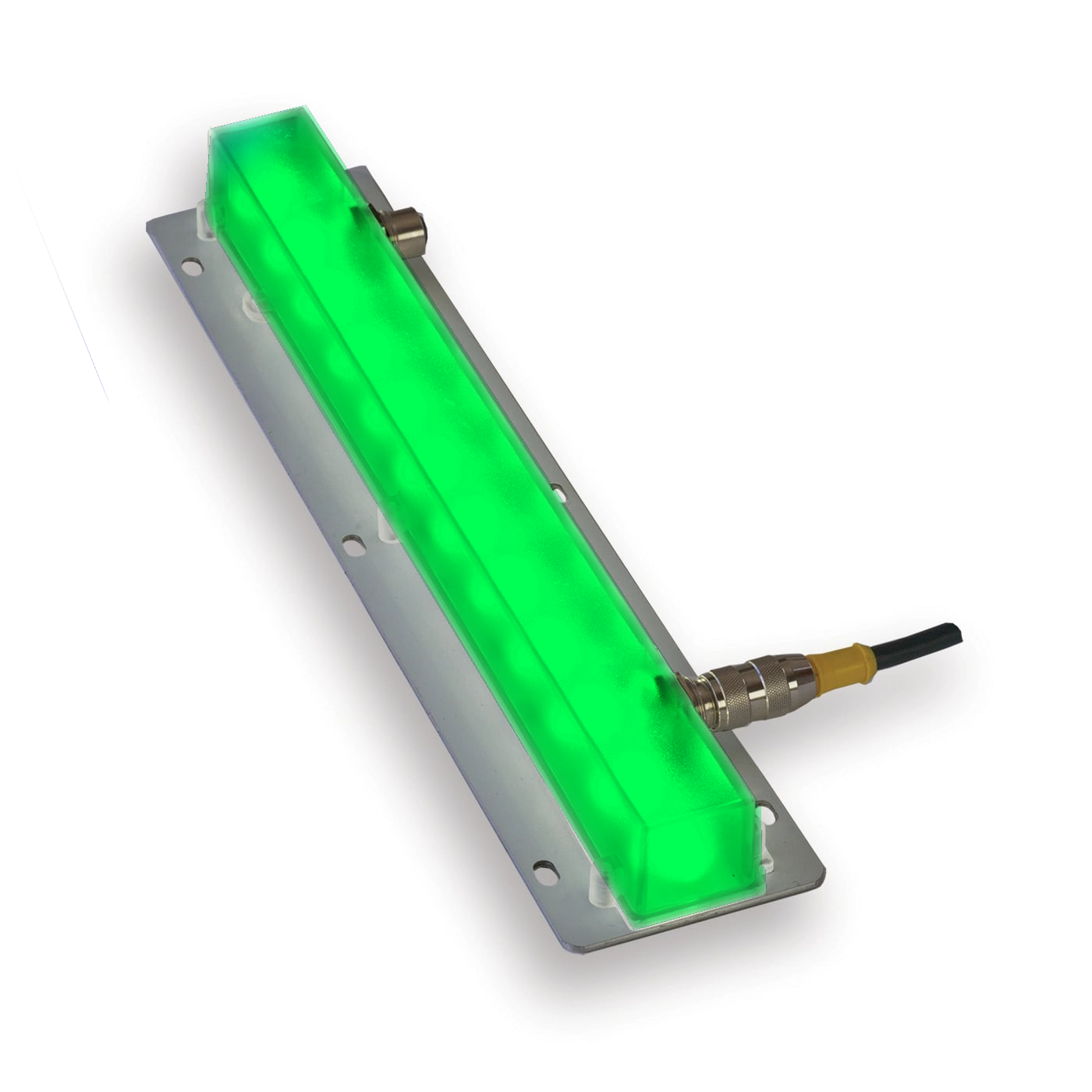

505nm Cyan
530
Advanced Illumination 530nm Green Light

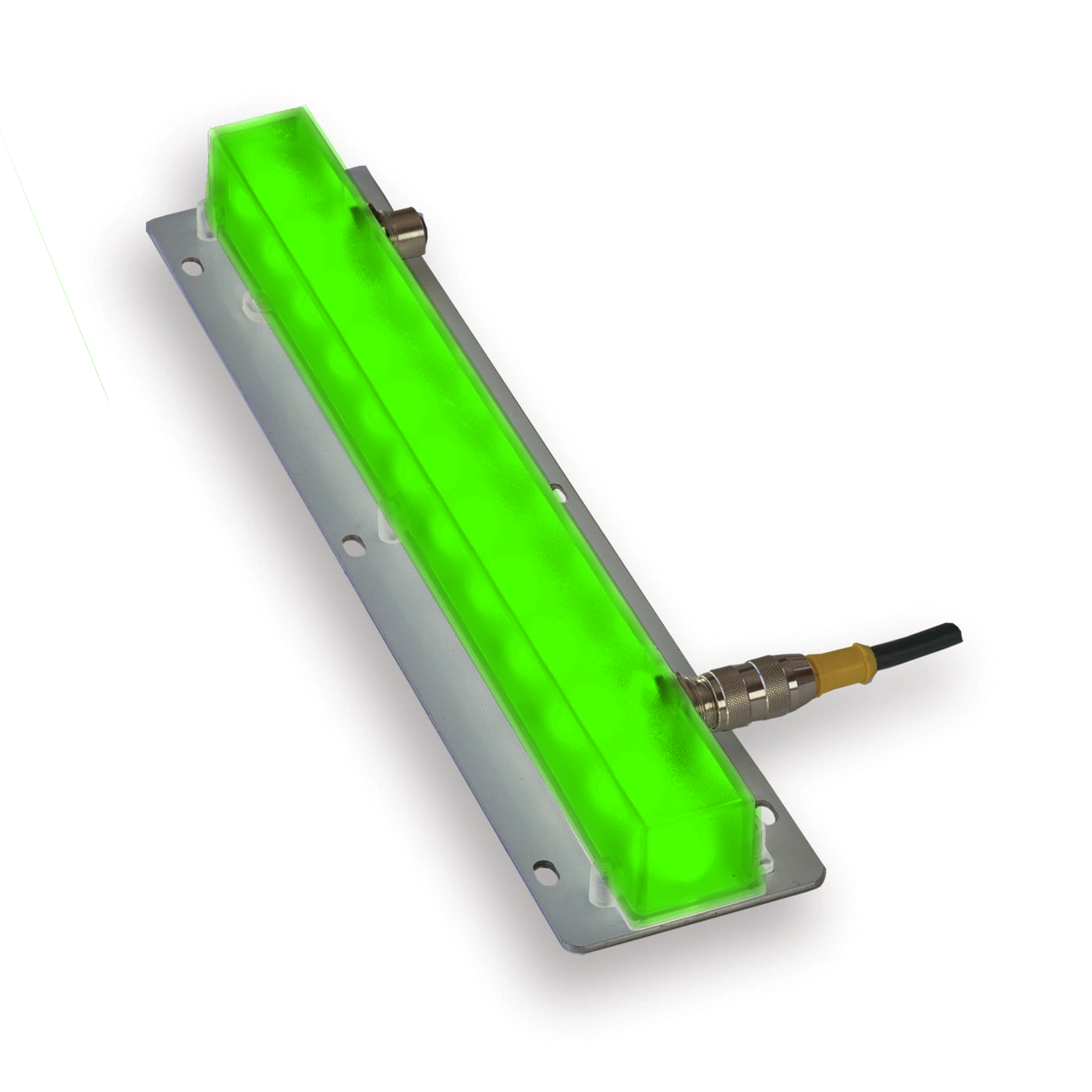

530nm Green
590
Advanced Illumination 590nm Amber Light

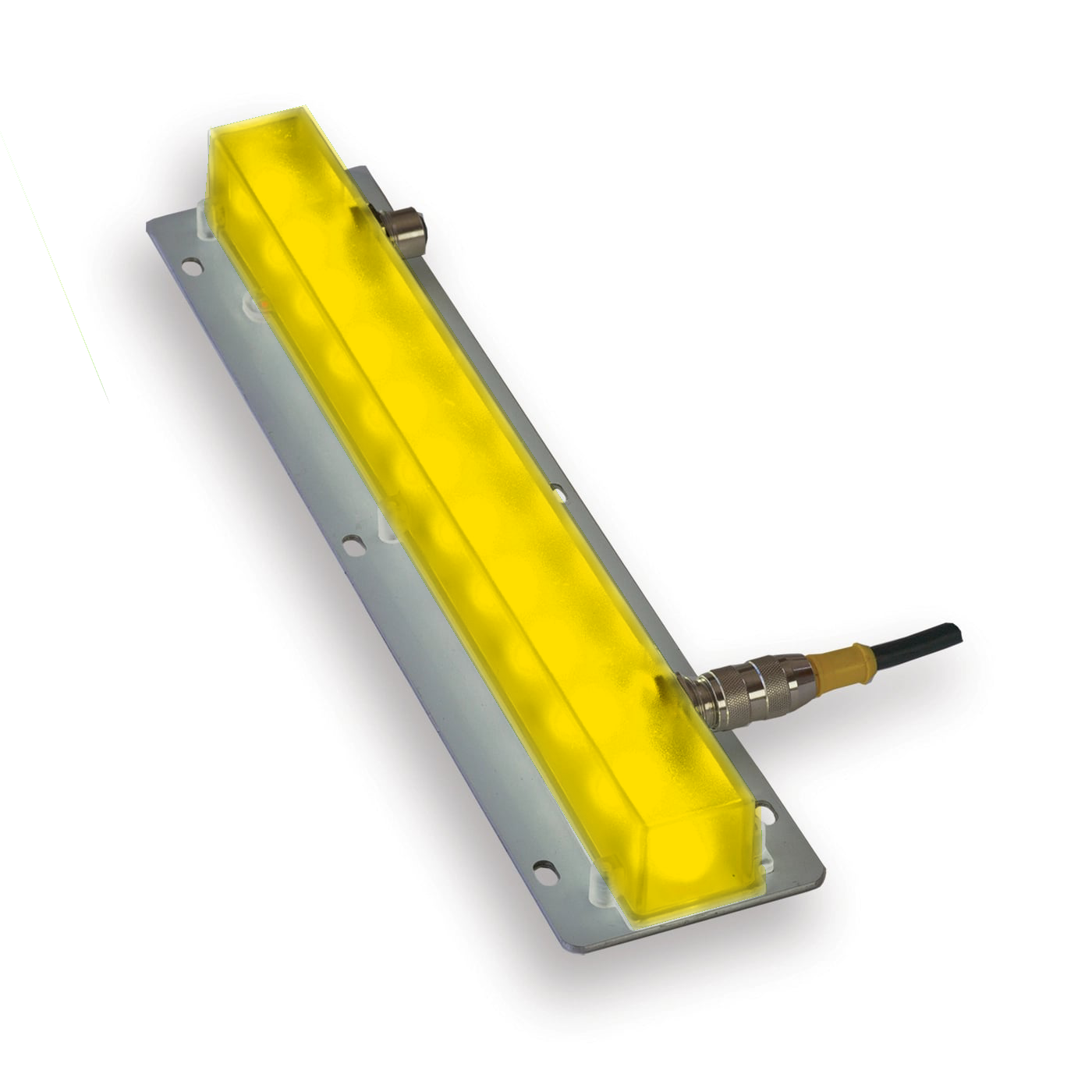

590nm Amber
625
Advanced Illumination 625nm Red Orange Light
625nm Red Orange
660
Advanced Illumination 660nm Red Light

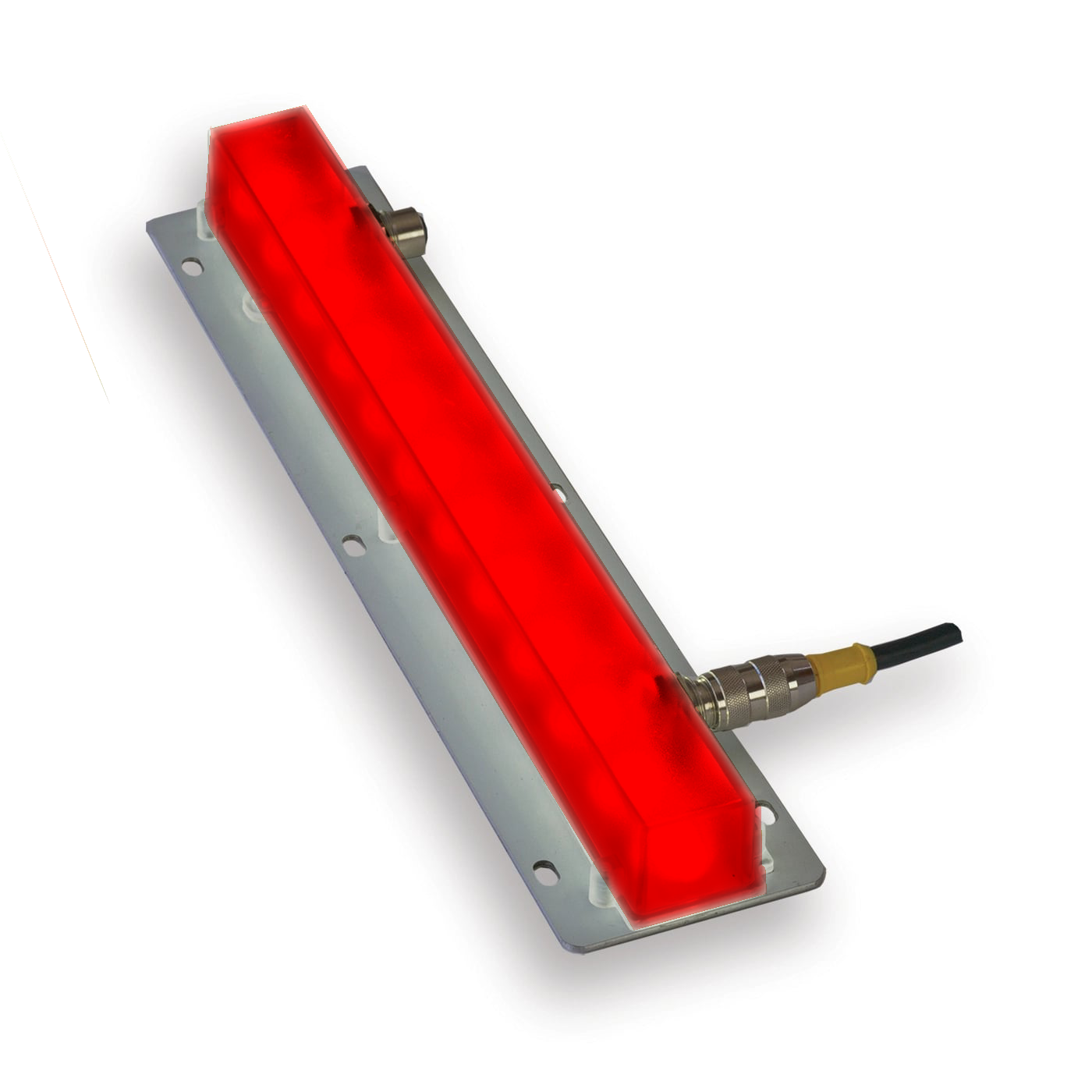

660nm Red
730
Advanced Illumination 730nm Infra-Red (IR) Light

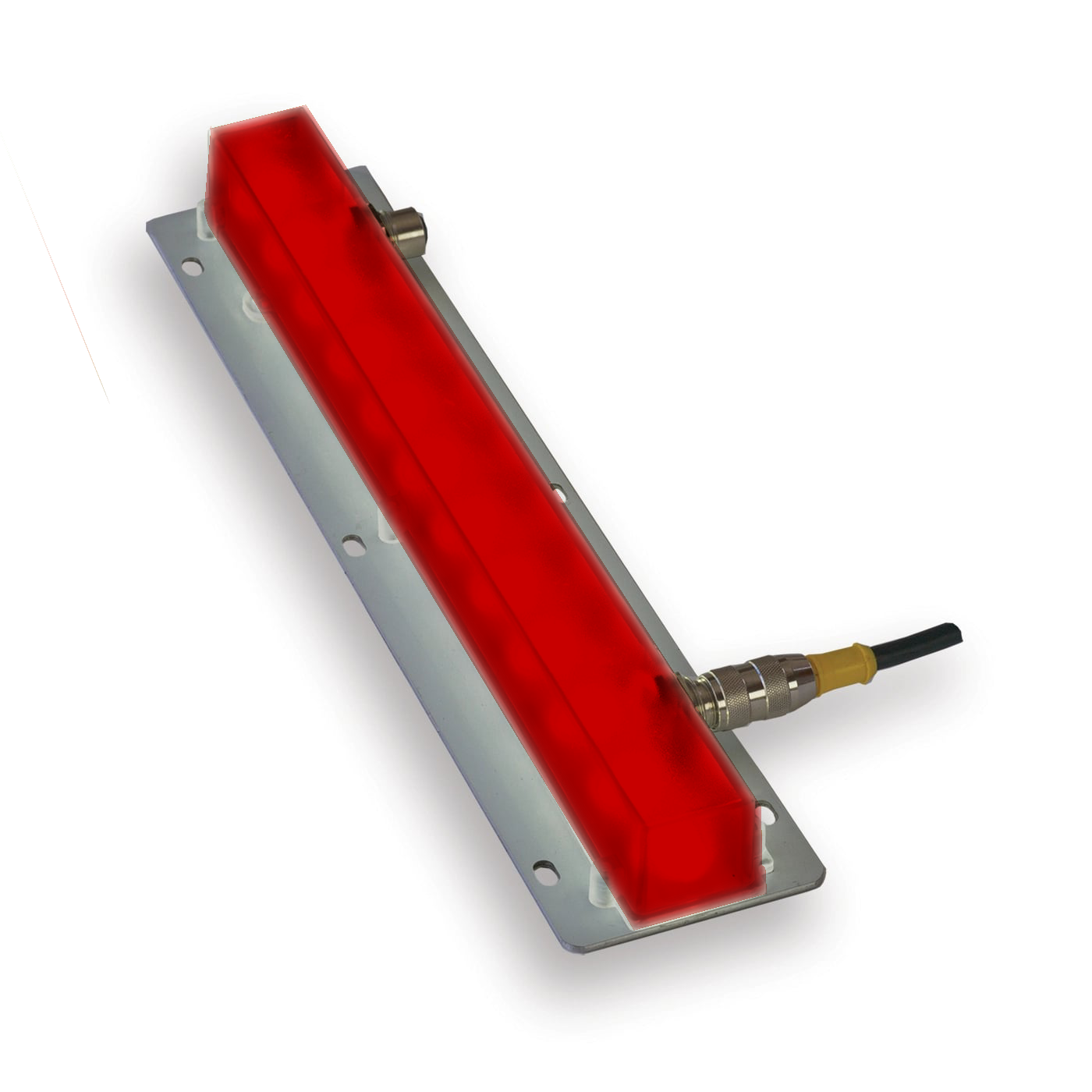

730nm Infra-Red (IR)
850
Advanced Illumination 850nm Infra-Red (IR) Light
850nm Infra-Red (IR)
940
Advanced Illumination 940nm Infra-Red (IR) Light
940nm Infra-Red (IR)

Additional Wavelengths are available upon request by contacting Machine Vision Direct.

Mechanical Specs

 AL-S025300 EuroBrite Bar Lights Mechanical Specs | Advanced Illumination



 Optical Specs

 AL-S025300 EuroBrite Bar Lights Optical Specs | Advanced Illumination
AL-S025300 EuroBrite Bar Lights Optical Specs | Advanced Illumination


Electrical Specs

 AL-S025300 EuroBrite Bar Lights Electrical Specs | Advanced Illumination


Part No Key

 AL-S025300 EuroBrite Bar Lights Part No Key | Advanced Illumination

Advanced Illumination AL-S025300 Downloads:

Advanced Illumination AL-S025300 Datasheet | Machine Vision Direct
Advanced Illumination AL-S025300 CAD PDF | Machine Vision Direct
Advanced Illumination AL-S025300 CAD DXF | Machine Vision Direct
Advanced Illumination AL-S025300 CAD STEP MODEL | Machine Vision Direct
