Description
ASolve your unique machine vision lighting challenges with the AL325 Modular Bar Light Series. This innovative modular system delivers best-in-class performance and unmatched flexibility with user-swappable, efficient optical components.

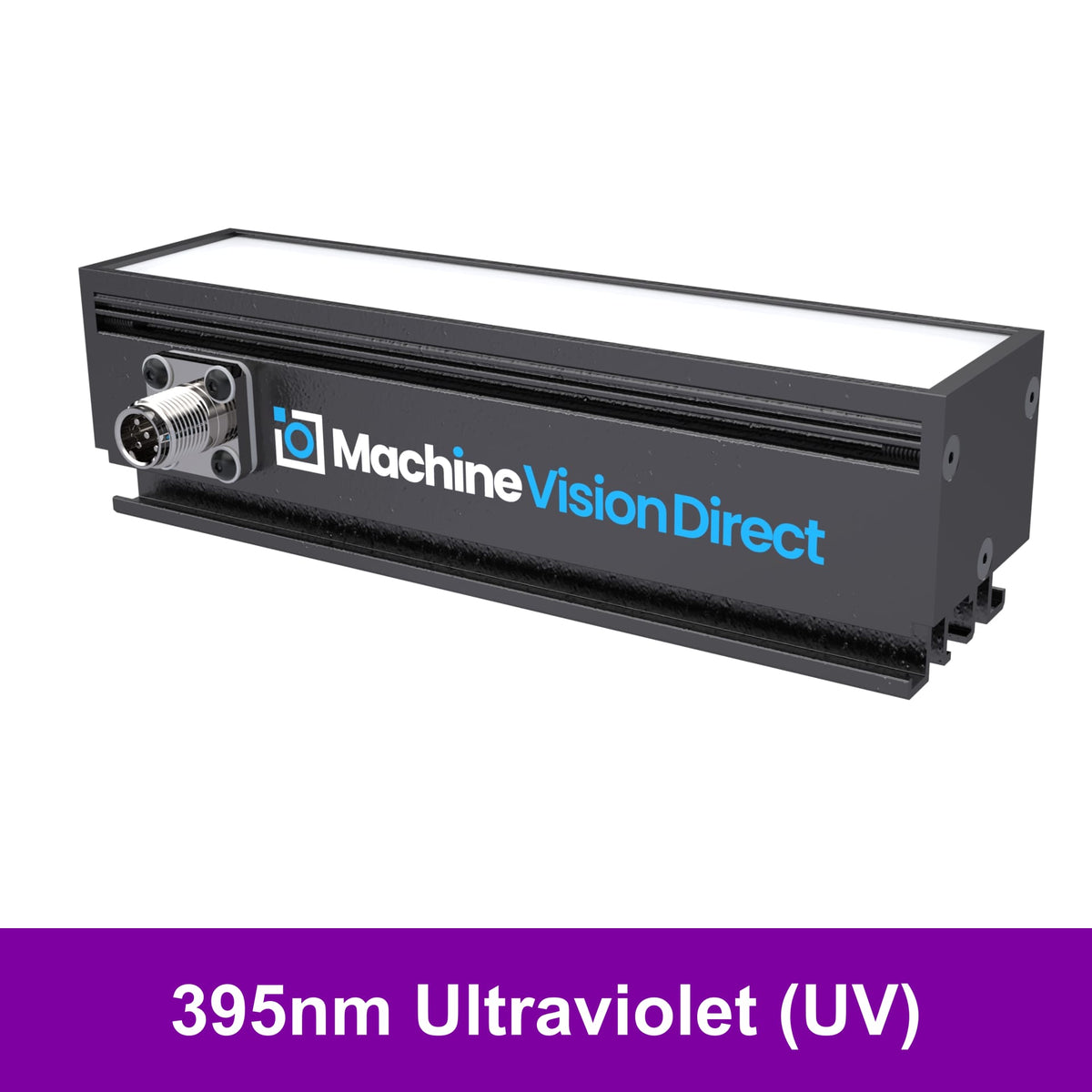

The AL325X0150-395ES-A Bar light from Advanced Illumination is their flagship linear light in 150mm (~6") Length. This machine vision bar light series incorporates incredible flexibilty in one modular design. This model is 150mm long and is in the 395nm Ultraviolet (UV) color. It features a lens beam angle of N/A. The AL325X0150-395ES-A is Not Diffused and Not Polarized.
AL325 Wavelength Options:
The AL325 series is available in White, 365nm UV, 375nm UV, 385nm UV, 395nm UV, 405nm Violet, 455nm Royal Blue, 470nm Blue, 505nm Cyan, 530nm Green, 590nm Amber, 625nm Red, 660nm Red, 730nm IR, 850nm IR, and 940nm IR as standard color variants.
Part String |
Wavelength |
Spectrum/Color |
|---|---|---|
AL325X0150-365 |
365nm |
Ultraviolet - UV365 |
AL325X0150-375 |
375nm |
Ultraviolet - UV375 |
AL325X0150-385 |
385nm |
Ultraviolet - UV385 |
AL325X0150-395 |
395nm |
Ultraviolet - UV395 |
AL325X0150-405 |
405nm |
Visible - Violet |
AL325X0150-455 |
455nm |
Visible - Royal Blue |
AL325X0150-470 |
470nm |
Visible - Blue |
AL325X0150-505 |
505nm |
Visible - Cyan |
AL325X0150-530 |
530nm |
Visible - Green |
AL325X0150-590 |
590nm |
Visible - Amber (Yellow) |
AL325X0150-625 |
625nm |
Visible - Red |
AL325X0150-660 |
660nm |
Visible - Red (Not Recommended for new applications) |
AL325X0150-730 |
730nm |
Infrared - IR730 |
AL325X0150-850 |
850nm |
Infrared - IR850 |
AL325X0150-940 |
940nm |
Infrared - IR940 |
AL325X0150-WHI |
WHITE |
Visible - White |
AL325 Lens Options:
In addition to the wide breadth of colors offered, the AL3250150 is offered with a large variety of lens options. Lens Options include Narrow (14 Deg), Medium (25 Deg), Wide (36 Deg), Extra Wide (55 Degree), Elliptical (45 Deg x 15 Deg), and a No Lens option (~120 Deg). This series Further customizations can be performed upon request from Machine Vision Direct.
For new applications, the L300G2 is a new generation of this light that features the same footprint as the L300 and ODL300, however has the MultiDrive driver integrated.
Part String |
Lens Nomenclature |
Lens Beam Angle |
|---|---|---|
AL325N |
Narrow |
14 Degrees |
AL325M |
Medium |
25 Degrees |
AL325W |
Wide |
36 Degrees |
AL325Z |
Extra Wide |
55 Degrees |
AL325E |
Elliptical |
45 + 15 Degres (Oval Beam) |
AL325X |
No Lens |
~120 Degrees |
AL325 Window Options:
With a homogenizer as the standard Window Option,
If not specified, lights will ship with the Homogenizer option (Denoted by -H at end of part string).
AL325 Driver Options:
This series comes with 5 driver options: Machine Vision Direct recommends the ES driver for most customers as it offers the most flexibility while still having the driver built into the light body.
Driver Option Descriptions (Select):
DCS-100/103 - (Denoted by C1 in part string)
The DCS-100 (Controller Part Number: DCS-100E) and DCS-103 (Controller Part Number: DCS-103E) are external driver options. These drivers allow for use in constant on or overdrive strobe modes, allowing for a wide range of flexibility. For lights purchased in this configuration, the external driver must be purchased separately. Lights with this configuration come standard with a connectorized 2m cable. The connector will only connect to the DCS 100 or DCS 103 controller, and cannot be changed after purchase. A light configured with this option can only be used with the
The DCS-100/DCS-103 cable on the light can be customized to be 0.2m, 0.3m, 0.5m, 1m, 1.5m, 2m (Standard Option if not specified), 3m, 4m, 5m, 6m, 7m, 8m, 9m, 10m, 11m, 12m, 13m, 14m, or 15m. For cable length customizations please contact Machine Vision Direct for a quote.
Note: The DCS100 and DCS103
