Advanced Illumination - Bright Field Ring Lights

Our EuroBrite™ lineup outdoes the competition in so many ways. With more features at a competitive price point, there's no better value in machine vision lighting:

Complete built-in control for continuous and strobe modes.

Adaptive Power™, a feature of the EuroBrite™ lighting controller, utilizes an onboard thermistor to maximize light output in continuous mode.

Adaptive Overdrive™, another feature of the EuroBrite™ lighting controller, provides a maximal output pulse in strobe mode regardless of the exposure period.

IP67 sealed enclosure suitable for washdown environments.

Rugged construction that has been tested to withstand over 1000lb.

Industrial grade LEDs providing high-intensity illumination of 33klux (working distance of 100mm).

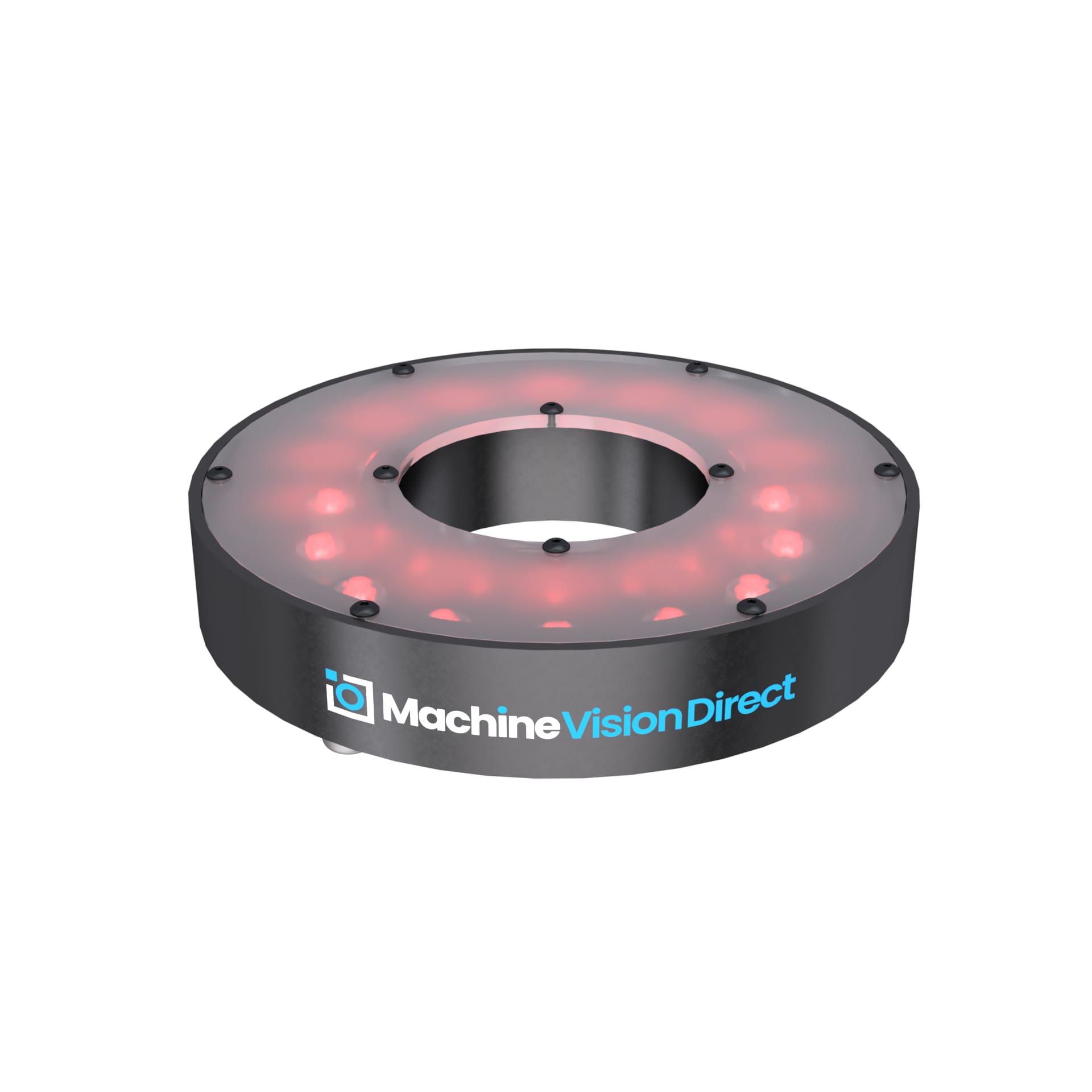

The RL113 High Intensity Bright Field ring light offers a very wide array of wavelengths from UV to IR.

With intensities of up to 45.5kLux at 12″ (300mm), the RL113 is particularly well suited to longer working distances.

A rugged, heavy enclosure, compliant with IP67 requirements, is well suited to demanding environments.

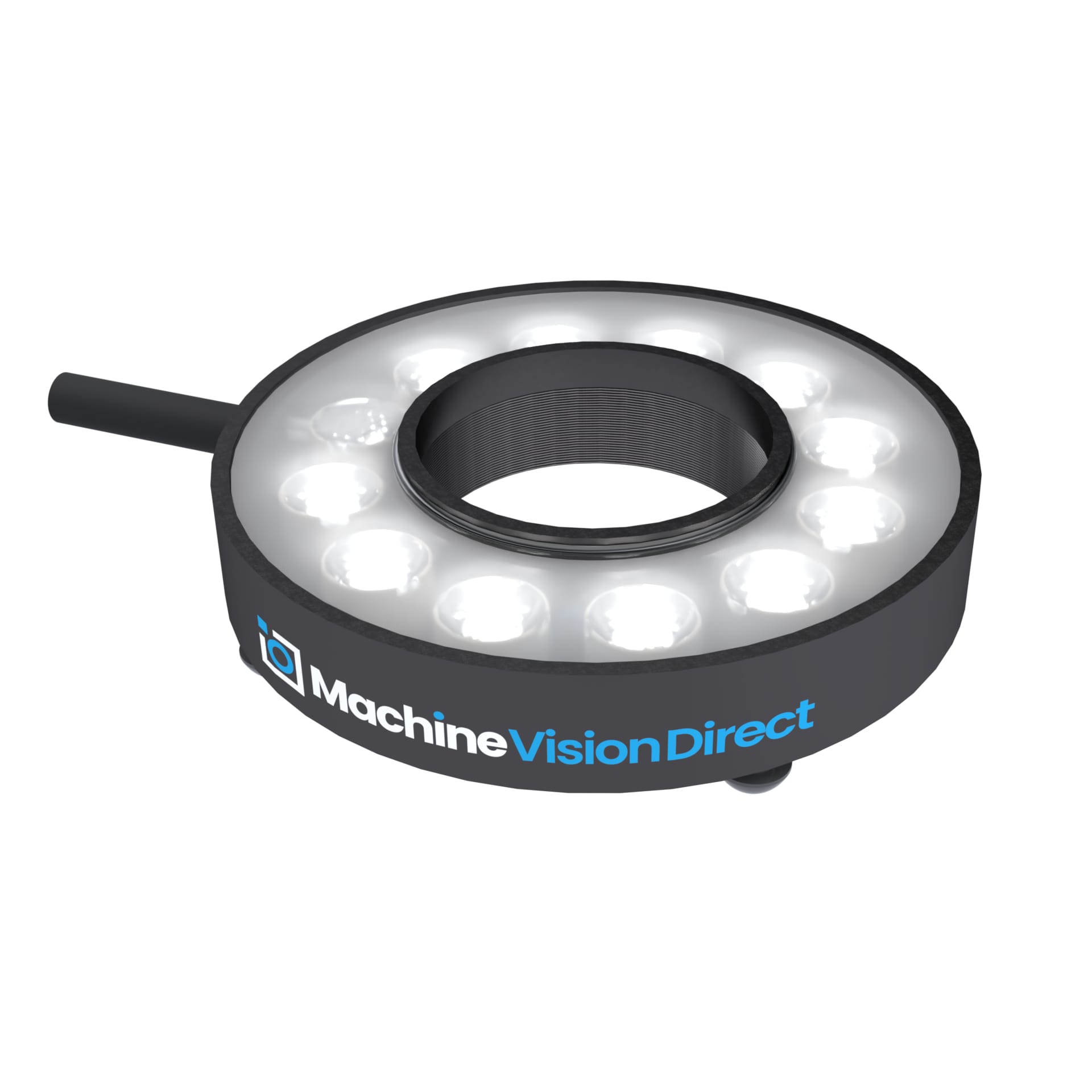

The RL121 is characterized as a small, high-dispersion bright-field ring light. Non-lensed LEDs disperse light at broad angles, providing “soft” lighting for applications that require short working distances. The low-profile design is only .56″ (14.2mm) thick, allowing it to be used in space-constrained applications. Optional adapter rings are available for camera lens mounting. A wide variety of wavelengths are available from UV to IR. An optional polarizer and/or diffuser can further condition the light output. The RL121 delivers 27kLux at a working distance of 50mm.

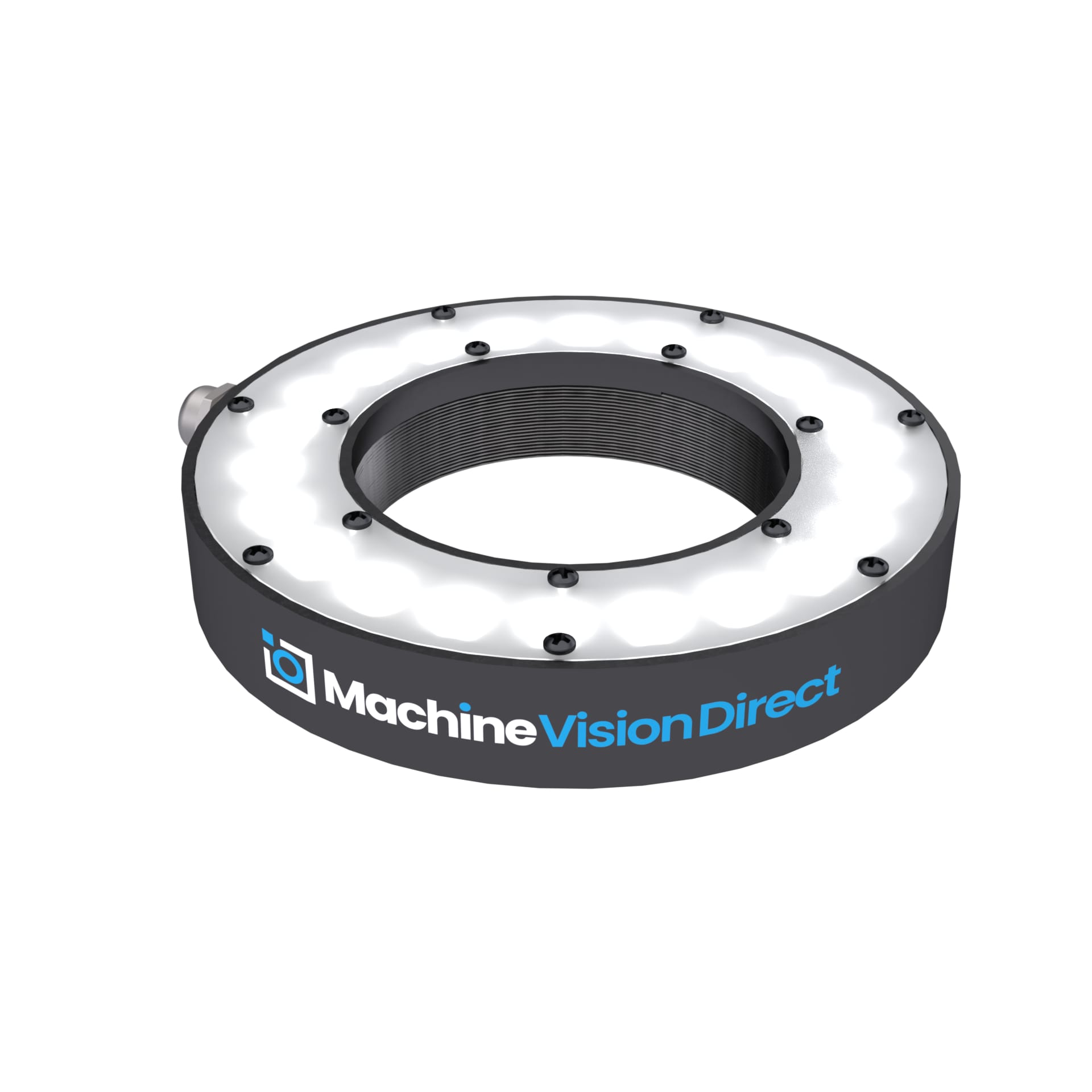

The RL127 is characterized as a large, high-dispersion bright-field ring light. Non-lensed LEDs disperse light at wide angles, providing “soft” lighting for applications that require short- to medium-range working distances. The low-profile design is only .75″ (19mm) thick, with an O.D. of 4.6″ (117mm) and I.D. of 2.61″ (66.3mm), allowing it to be used in space-constrained applications. The I.D. provides a standard 67mm diameter thread with a pitch of .75mm for further mounting flexibility. A wide variety of wavelengths are available from UV to IR. An optional polarizer and/or diffuser can further condition the light output. The RL127 delivers 20kLux at a working distance of 100mm.

Part of the MicroBrite™ family of high performance, compact machine vision lights.

Produces an intensity level of 41kLux (working distance of 180mm).

Available in several sizes including 50mm, 100mm, 160mm and 200mm.

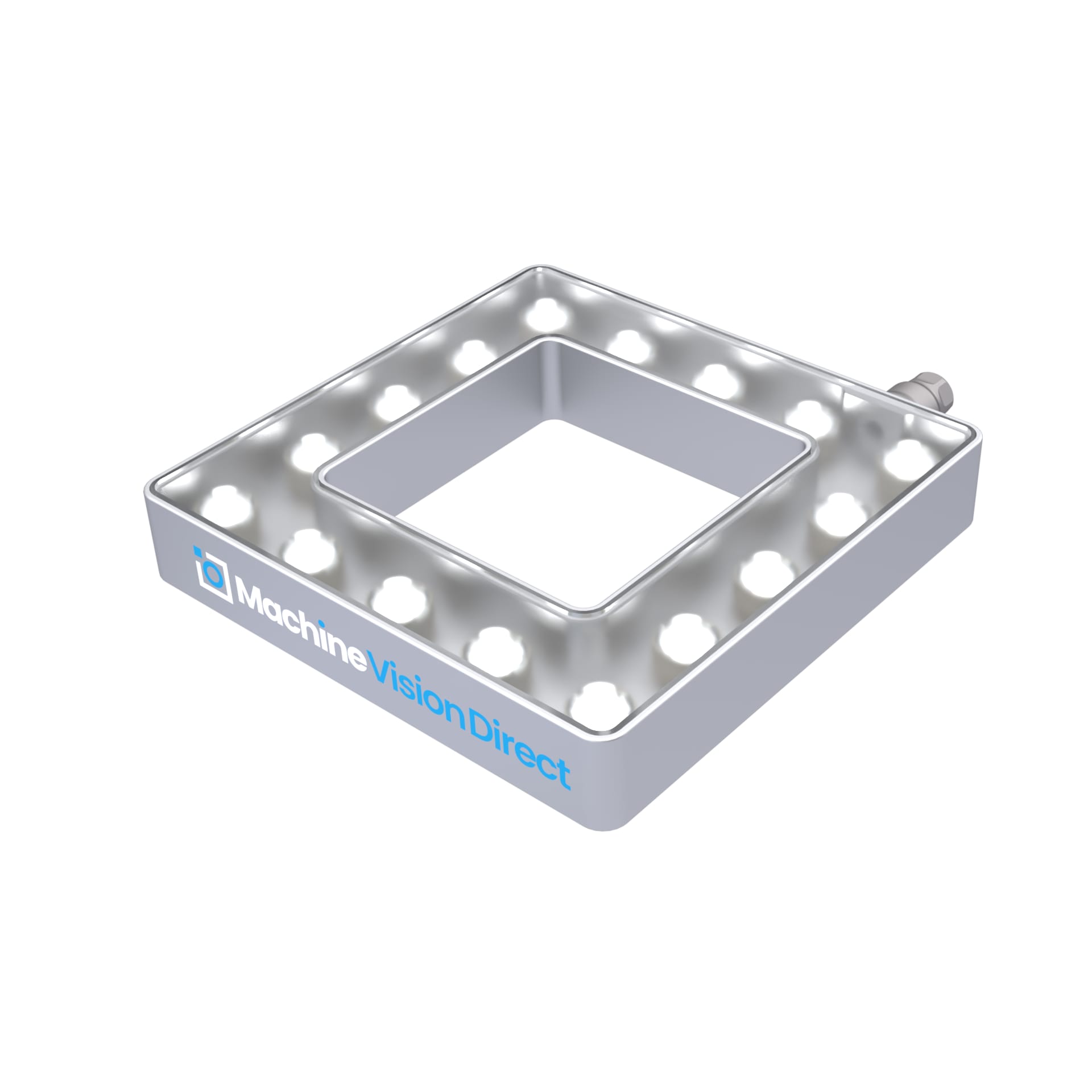

Engineered for critical hygienic environments, the RL322 Series UltraSeal™ Ring Light provides rugged, bright field illumination in 50mm and 100mm camera opening sizes. Achieving 3rd-party IP69K certification, these lights ensure complete protection against high-pressure, high-temperature steam cleaning.

The patented, virtually crevice-free design eliminates exposed fasteners to prevent bacteria buildup and simplifies cleaning. This hygienic construction makes them ideal for direct installation in Food & Beverage splash zones, ensuring reliable performance despite constant exposure to liquid, food debris, and rigorous sanitation protocols. Available in Stainless Steel or Anodized Aluminum to meet specific caustic-resistance needs.
