Description

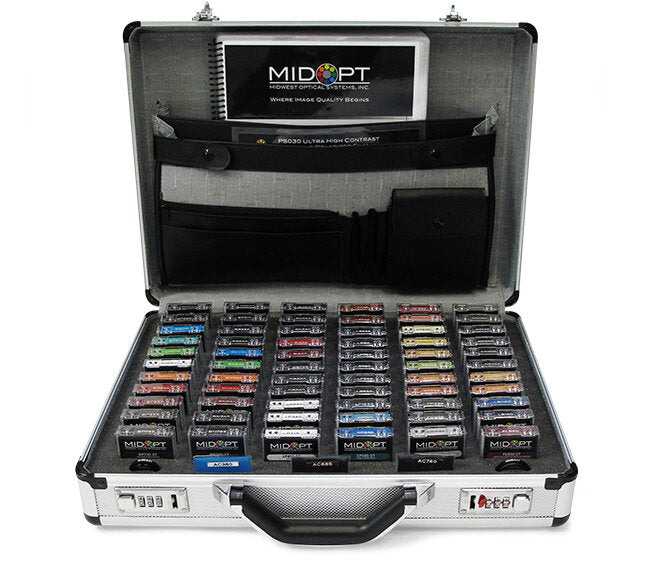

The Ultimate Resource for Testing & Evaluating Image Quality
The SK100 includes 70 filters for UV, VIS and NIR imaging; making it the ultimate resource for testing and evaluating image quality.
Filter categories included in the SK100: Bandpass; Dual Bandpass; Longpass; Neutral Density; Shortpass; Polarizing; Light Balancing; Protective and Acrylic
This MidOpt Filter Kit allows you to:
- Test before investing in hardware
- Control the variability of ambient light
- Evaluate glare reduction
- Solve applications quickly
Kit Includes:
- 27mm threaded mount filters
- Step adapters to fit most M25.5 and M30.5 lenses
- Polarizing Film for light source

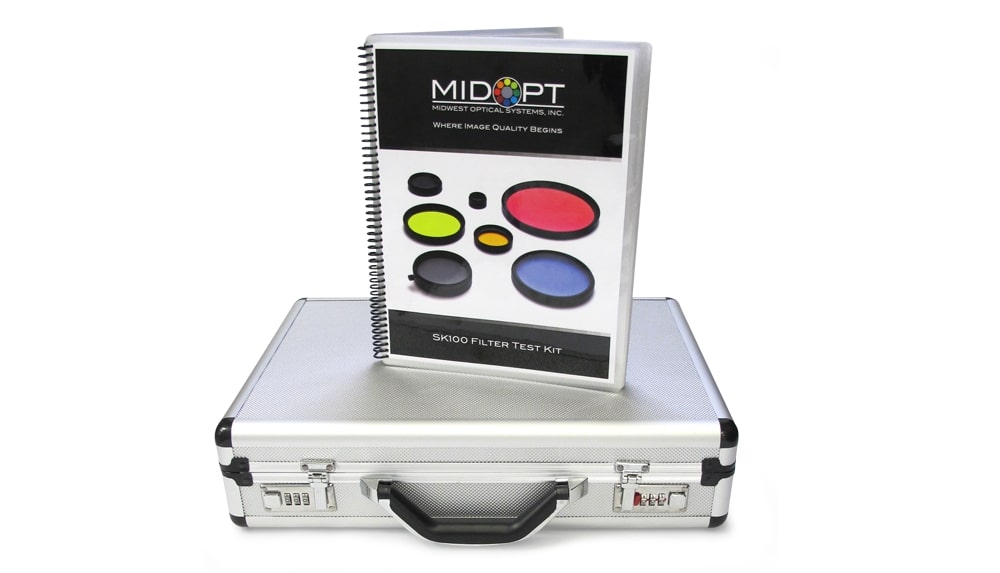

- Educational material on optical filters and technical specs for each filter
- Sturdy case for protective storage

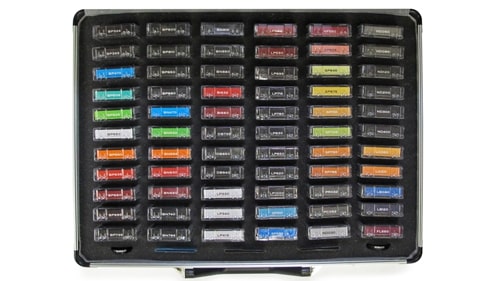

Kit Includes:
BANDPASS FILTERS
BP Series — Broad Bandwidth
BP324 Near-UV Bandpass (290-365nm)
BP365 Near-UV Bandpass (335-400nm)
BP470 Blue Bandpass (425-495nm)
BP505 Cyan Bandpass (485-550nm)
BP525 Light Green Bandpass (500-555nm)
BP550 Near-IR/UV Block-Visible Bandpass (410-690nm)
BP590 Orange Bandpass (560-600nm)
BP635 Light Red Bandpass (615-645nm)
BP660 Dark Red Bandpass (640-680nm)
BP695 Near-IR Bandpass (680-720nm)
BP735 Near-IR Bandpass (715-780nm)
BP800 Near-IR Bandpass (745-950nm)
BP850 Near-IR Bandpass (820-910nm)
BP880 Near-IR Bandpass (845-930nm)
BN Series — Narrow Bandwidth
BN470 Narrow Blue Bandpass (460-490nm)
BN532 Narrow Green Bandpass (525-550nm)
BN595 Narrow Orange Bandpass (580-610nm)
BN630 Narrow Light Red Bandpass (625-645nm)
BN660 Narrow Dark Red Bandpass (645-675nm)
BN740 Narrow Near-IR Bandpass (730-755nm)
BN785 Narrow Near-IR Bandpass (770-790nm)
BN810 Narrow Near-IR Bandpass (798-820nm)
BN850 Narrow Near-IR Bandpass (840-865nm)
BN880 Narrow Near-IR Bandpass (855-890nm)
BN940 Narrow Near-IR Bandpass (928-955nm)
Bi Series — Narrow Interference Bandwidth
Bi632 Light Red Interference Bandpass (625-640nm)
Bi660 Dark Red Interference Bandpass (650-665nm)
DUAL BANDPASS FILTERS
DB Series — Dual Bandwidth
DB735 Dual Bandpass Visible + 735nm NIR
DB850 Dual Bandpass Visible + 850nm NIR
DB940 Dual Bandpass Visible + 940nm NIR
LONGPASS FILTERS
LP Series — Longpass
LP330 Protective Window
LP340 A/R Protective Window
LP415 UV Block A/R Protective Window
LP550 Orange Longpass
LP590 Red Longpass
LP695 Near-IR Longpass
LP715 Near-IR Longpass
LP780 Near-IR Longpass
LP830 Near-IR Longpass
LP850 Near-IR Longpass
LP920 Near-IR Longpass
LP1000 Near-IR Longpass
NEUTRAL DENSITY FILTERS
ND Series — VIS
ND030 Absorptive 50% TransmissionND060 Absorptive 25% Transmission
ND090 Absorptive 12.5% Transmission
ND120 Absorptive 6.25% Transmission
ND200 Absorptive 1.0% Transmission
ND300 Absorptive 0.1% Transmission
ND400 Absorptive 0.01% Transmission
SHORTPASS/NIR CUT FILTERS
SP Series — VIS PASS
SP510 Blue ShortpassSP585 Cyan Shortpass
NF550 Magenta Dichroic (Green Block)
SP Series — Near-IR Block SP625 Blue-Orange Shortpass
SP645 Near-IR/Mid-Red Dichroic Block
SP675 Near-IR/Deep Red Dichroic Block
SP701 Extended Hot Mirror / Reflects up to 1550nm
SP705 Near-IR/Deep Red Absorp. Block
SP730 Near-IR/Colorless Dichroic Block
SP785 Modified Near-IR Dichroic Block
PROTECTIVE FILTERS AC Series — Acrylic Longpass
AC380 A/R Acrylic Protective Window
AC685 Acrylic Near-IR Longpass
AC760 Acrylic Near-IR Longpass
LIGHT BALANCING FILTERS
LA080 Light Balancing (Minus Blue)
LA120 Light Balancing (Minus Blue)
LB080 Light Balancing (Minus Red)
LB120 Light Balancing (Minus Red)
FL550 Light Balancing (Minus Green)
POLARIZING FILTERS & FILM
PR032 Linear Polarizer
PC052 Circular Polarizer
PS030 Ultra High Contrast Linear Polarizer Film
STEP ADAPTER RINGS
SU25.5-27 Step-Up Ring
SD30.5-27 Step-Down Ring
SK100 Downloads
