RC130-850 | RC130 Near Collimated EZ Mount Ring Light (130mm) | 850nm IR Light

Smart Vision LightsSKU: RC130-850
Lead Time: 3 Business Days

Price:
Sale price$711.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

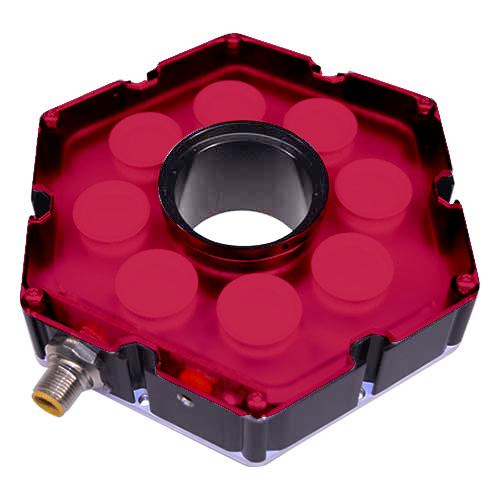

RC130 Near Collimated EZ Mount Ring Light (R80 Pictured)

Product Details

  • T-Slot for mounting
  • Conversion adapters for different cameras
  • PNP and NPN strobe input
  • Continuous operation or strobe mode
  • Dimmable via built in potentiometer
  • Analog intensity 0-10VDC signal
  • Four, 1mm² die high current LEDs

Smart Vision Lights RC130 Technical Specifications

RC130 Continuous Operation Specifications

Electrical Input  24VDC +/5%
Input Current Max. 460mA
Input Power Max. 11.1W
PNP Trigger  2.8 mA @ 4VDC | 8.8 mA @ 12VDC | 17.6 mA @ 24VDC
NPN Trigger 14.4 mA @ ground (0VDC)
Trigger Input  PNP > +4 VDC (24 VDC max.) to activate or NPN ≥ GND <1VDC to activate (not both)
Power Indicator  Turns green when powered up
Status Indicator  Strobe indicator will turn red while resting and turn off when ready
Continuous Mode  Strobe indicator will turn red while resting and turn off when ready
Intensity Limit 270º turn pot – intensity control of 10%100%. Turn clockwise to increases intensity limit.
Analog Intensity The output is adjustable from 10%–100% of intensity limit by a 1 – 10VDC signal.
(Jumpering pin 5 to pin 1 will provide maximum intensity.)
Connection 5-pin M12 connector
Operating Temperature -10° to 40° C (14° to 104° F) | RH max 80% non-condensing humidity
Storage Temperature  -20° to 70° C (-4° to 158° F) | RH max 80% non-condensing humidity
IP Rating  IP50
Weight ~325g
Compliances CE, RoHS, IEC-62471
Warranty UV LEDs have a 2 year warranty, all other LEDs have a 10 year warranty.
For complete warranty information, visit smartvisionlights.com/warranty.



All EZ Mount LED Ring Light Mount Directly to a Camera Lens
The EZ Mount LED Ring Light can be quickly and easily adapted to any vision system with either of four standard mounting options. First, there is a standard M46 thread protruding from the back of the EZ Mount LED Ring Light. Using readily available step-up or step-down rings it can be mounted directly to the threads found on the front end of most lenses. Second is the ability to mount the lens at the front end of the EZ Mount LED Ring Light. Once again, an off-the-shelf step up or step down adapter ring can be used to adapt lenses with M43 or smaller filter mounting threads. A flange at the front end of the EZ Mount LED Ring Light holds the step ring with three set screws, and the camera lens is inserted through the center of the EZ Mount LED Ring Light and threaded onto the step ring. In those few cases where the lens's locking thumbscrews may prevent the lens from fitting through the center of the EZ Mount LED Ring Light, extra low-profile replacement set screws are included, allowing the protruding thumbscrews to be removed. Step up and Step down adapter rings are not included with the light. Third is a T-slot on all sides. Standard industrial T-nuts can be dropped into the slot for mounting. Fourth way to mount the light is using the threaded M4 holes on the back plate of light. The EZ Mount LED Ring Light are a high output LED light in an aluminum housing. Housing uses industry standard T-Slots for ease of mounting. Ring Lights are available in light output of White, Red, Amber, Blue, Green, Cyan, IR and UV. Ring Light includes an integrated constant current driver with a built in strobe input with option for PNP or NPN trigger control. No need for an external driver to control the light. The integrated driver also includes variable light intensity control. Light can be controlled by a manual potentiometer or a 0-10VDC analog signal.

RC130 RING LIGHT OVERVIEW
The all metal construction of the Ring Light Series of lights provides a small particle resistant and all around durable light. Its simple plug and play 5 Pin M12 connector allows for ease of use while allowing for full control. The RC130 and RCC130 operates with either an NPN or a PNP signal and runs on an industry standard 24 VDC. The 0-10 VDC intensity control assists in gaining full control of the light output. A standard 42 mm inner hole diameter allows for use with nearly all camera systems with available step-up and step-down conversion kits adapters.

The RC130 was designed to produce a large uniform/homogenous light pattern. To achieve this, the RC130 contains special lenses for creating this near collimated light pattern. Optics include a focused uniform lens for wide vision.

The RCC130 was designed to produce a narrow uniform/homogenous light pattern. To achieve this, the RC130 contains special lenses for creating this near collimated light pattern. Optics include a tightly focused uniform lens for narrow version.

RC130 (WIDE) ILLUMINATION

RCC130 (NARROW) ILLUMINATION

Wavelength Colors
RC130 Wavelength Colors Smart Vision Lights

WIRING

MOUNTING USING THREAD ADAPTERS
Thread Adapters (Or Direct to Camera Mount Adapters) are both available for mounting the EZ Mount Ring Lights directly to your lens or camera body. Please Reference the Datasheet for your respective lens to confirm thread size prior to ordering a thread adapter. Direct to Camera Mount Adapters are also thread adapters that mount the light directly to the body of your camera.

RC130 Downloads

RC130 Datasheet | Smart Vision Lights RC130 3D STEP Model | Smart Vision Lights
RC130 2D DXF Drawing | Smart Vision Lights RC130 PDF Dimension Drawing | Smart Vision Lights



Possible Product Configurations:
RC130-365
RC130-395
RC130-470
RC130-505
RC130-530
RC130-625
RC130-850
RC130-940
RC130-WHI
