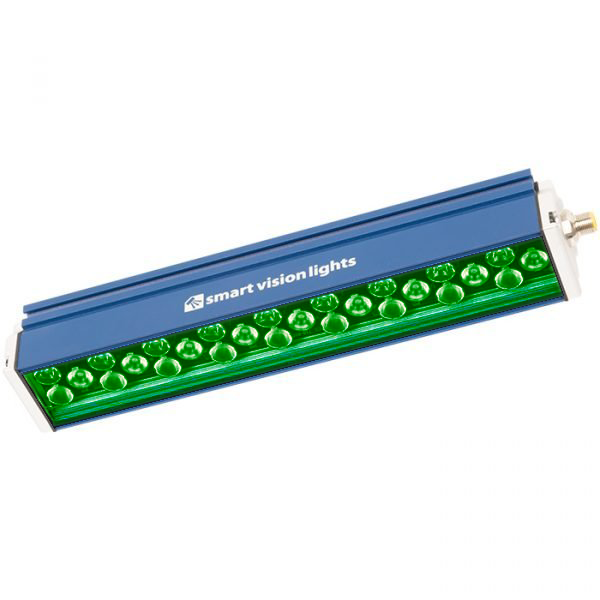

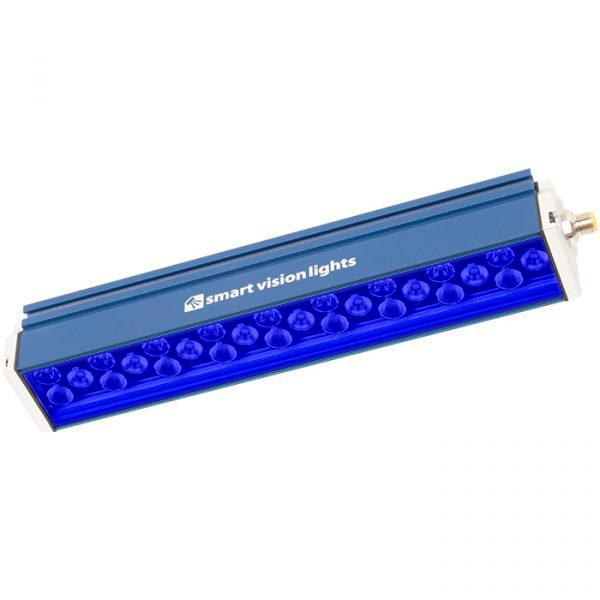

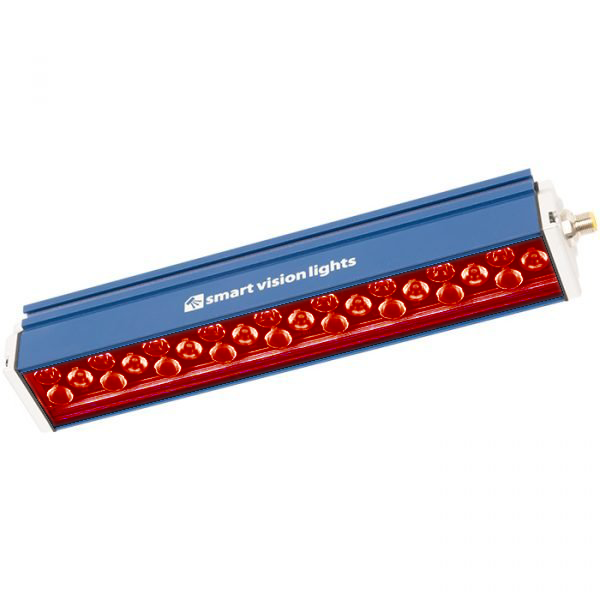

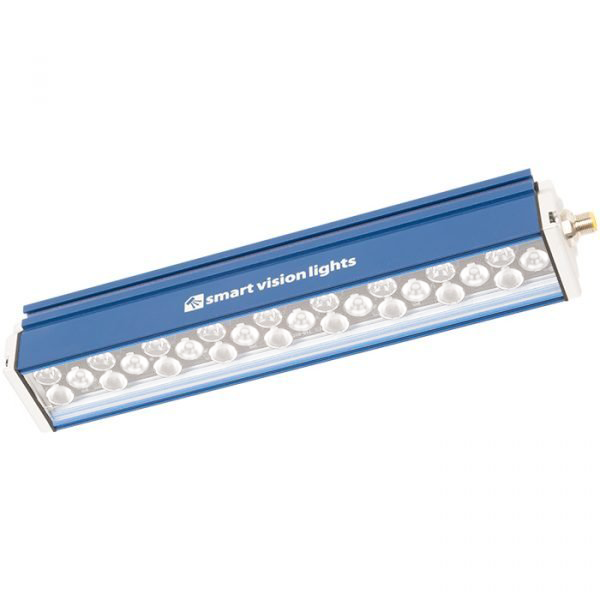

LTF300 Linear Light with Tunable Field of View (300mm)

Smart Vision LightsSKU: LTF300-WHI
Lead time: 3 Business Days

Color: WHITE
Lens Configuration: 153 (Default)
Price:
Sale price$858.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00

Description

The LTF (Linear Tunable Field Of View) series (patent pending), a SmartVisionLinkTM-enabled light, features three independently adjustable beam angle lighting channels. When used with the BTM-1000 Bluetooth accessory* and the SmartVisionLinkTM app, lighting channels can be set to produce unique beam- angle combinations – optimizable for many different applications over a wide range of working distances and field of view requirements.

Recommended illumination usage: Bright Field, Direct Lighting, and Dark Field

Product Details

  • Three independently tunable beam angle channels
  • Built-in Multi-Drive allows for continuous or OverDrive strobe operation
  • PNP and NPN strobe input
  • 5-pin M12 quick connect
  • SmartVisionLink Enabled - SmartVisionLink™-enabled provides easy intensity adjustment in both continuous and OverDrive™ modes
  • Ability to switch and mix channels to adjust working distance and illumination angle*
  • Ability to control intensity for the entire light or for each of the three LED channels if using BTM-1000 Bluetooth Module

Smart Vision Lights LTF300 Technical Secifications

LTF300 Continuous Operation Specifications

Electrical Input 24VDC +/–5%
Input Current Max. 1.27 A per 300 mm segment
Input Power Max. 12.1 A per 300 mm segment
PNP Trigger  2mA @ 4VDC
7mA @ 12VDC
13.4mA @ 24VDC
NPN Trigger 12mA @ Ground (0VDC)
Trigger Input PNP > +4 VDC (24 VDC max.) to activate or NPN > GND (<1VDC) to activate (not both)
Mode Control  Connect pin 5 to 1-10 VDC (10 - 100% output);
24 VDC (Max)
Strobe Duration Min. 30 μs | Max. ∞
Strobe Trigger Latency 10 μs
Strobe Frequency Max 4 kHz or 1 / Duty Cycle as calculated, whichever is less.1
Duty Cycle Not applicable
Status Indicator User configurable via SmartVisionLink™
Analog Intensity  The output is adjustable from 10% - 100% of intensity limit by a 1 - 10 VDC signal. Jumpering pin 5 to pin 1 will provide maximum intensity. Intensity limit can be remotely adjusted via SmartVisionLink™2
Connection 5-pin M12 connector
Operating Temerature -10° to 40° C (14° to 104° F) | RH max 80% non-condensing humidity
Storage Temperature  -20° to 70° C ( -4° to 158° F) | RH max 80% non-condensing humidity
Ip Rating IP65
Weight  LTF300: 1.8 lbs (~816 g) | LTF600: 3.2 lbs (~1.45 kg) LTF900: 4.8 lbs (~2.17 kg) | LTF1200: 6.5 lbs (~2.95 kg)
Compliances CE, IEC-62471, RoHS
Warranty 10 years



LTF300 Continuous Operation Specifications

Electrical Input 24VDC +/–5%
Input Current Max. 12.7 A per 300 mm segment
Input Power Max. 290 W per 300 mm segment
PNP Trigger  2mA @ 4VDC
7mA @ 12VDC
13.4mA @ 24VDC
NPN Trigger 12mA @ Ground (0VDC)
Trigger Input PNP > +4 VDC (24 VDC max.) to activate or
NPN > GND (<1VDC) to activate
 (not both)
Mode Control  Connect pin 5 to GND
(See wiring configuration for more information)
Strobe Duration Min. 30 μs | Max. 50 ms
Strobe Trigger Latency 6 μs
Strobe Frequency Max 4 kHz or 1 / Duty Cycle as calculated, whichever is less.1
Duty Cycle Max. 10%1
Status Indicator User configurable via SmartVisionLink™
Analog Intensity  The output is adjustable from 10% - 100% of intensity limit by a 1 - 10 VDC signal. Jumpering pin 5 to pin 1 will provide maximum intensity.
Intensity limit can be remotely adjusted via SmartVisionLink™
2
Connection 5-pin M12 connector
Operating Temerature -10° to 40° C (14° to 104° F) | RH max 80% non-condensing humidity
Storage Temperature  -20° to 70° C ( -4° to 158° F) | RH max 80% non-condensing humidity
Ip Rating IP65
Weight  LTF300: 1.8 lbs (~816 g) | LTF600: 3.2 lbs (~1.45 kg)
LTF900: 4.8 lbs (~2.17 kg) | LTF1200: 6.5 lbs (~2.95 kg)

Compliances CE, IEC-62471, RoHS
Warranty 10 years



Lens Options

The LTF300 from Smart Vision Lights is available in three lens variations

Lens Option Beam Angle

Narrow

(1 Option)

10 Degrees

The standard lens option uses a 10° beam angle lens. Standard lenses create a narrow beam of illumination and are used for long working distances.

Wide Lens

(3 Option)

30 Degrees

Wide, 30° angle-cone lenses create a large area of illumination. They create a floodlight effect and can be used for shorter working distances.

Wide Lens

(5 Option)

50 Degrees

Wide, 50° angle-cone lenses create the largest area of illumination. They create a floodlight effect and can be used for the shortest working distances.



Lens Configurations

Lens Option Beam Angle



153

(Default)

SVL LTF 153 Lens Configuration



111

SVL LTF 111 Lens Configuration



131

SVL LTF 131 Lens Configuration

313

SVL LTF 313 Lens Configuration

333

SVL LTF 333 Lens Configuration

353

SVL LTF 353 Lens Configuration

Working Distance

Smart Vision Lights recommends the LTF Series be used at a working distance between 200 mm to 2000 mm

Smart Vision Link

With integrated SmartVisionLink™, the LTF300 can be used with Smart Vision Light’s Bluetooth module (BTM-1000*). Users can install the SmartVisionLink™ app on Android or Apple phones and tablets to configure lighting parameters for each of the four lighting zones. Zone parameters include 10-100% intensity for both continuous and OverDrive™ strobe modes, as well as zone-disable. After parameters are set and saved, the BTM-1000 can be removed from the LTF300 and settings will be retained in LTF300E’s static memory. The SmartVisionlink™ app is available at no cost from the Google Play Store or Apple’s App Store. Smart Vision Link

*The BTM-1000 is sold separately.

Connecting a BTM-1000 Module

The BTM-1000 can be connected directly to a light or attached to a jumper cable that is connected to a light. Once the light's intensity is set to desired level, the BTM-1000 can be removed from the light or cable. The pigtail end of the BTM-1000 is connected directly to the light or to the cable attached to the light.

BTM-1000 Module on Smart Vision Lights LTF300

Wavelength Colors
LXE300 Wavelengths Smart Vision Lights

Multi-Drive Wiring
Wiring Configuration for CONSTANT ON Operation
Wiring Configuration for STROBE/PULSE Overdrive Operation

MOUNTING
Four (4) screw holes are located on the bottom of the light for easy mounting. Four (4) mounting screws are included with the LTF300 Linear Light.
Additionally, a 3-Axis pan and tilt mount (Part #: PB300-M5) can be used for mounting. This is optional and can be purchased separately.

LTF300 Downloads

LTF300 Datasheet | Smart Vision Lights
LTF300 3D STEP Model | Smart Vision Lights
LTF300 2D DXF Drawing | Smart Vision Lights
LTF300 PDF Dimension Drawing | Smart Vision Lights



Possible Part Configurations:
LTF300-WHI
LTF300-WHI-111
LTF300-WHI-131
LTF300-WHI-313
LTF300-WHI-333
LTF300-WHI-353
LTF300-365
LTF300-365-111
LTF300-365-131
LTF300-365-313
LTF300-365-333
LTF300-365-353
LTF300-395
LTF300-395-111
LTF300-395-131
LTF300-395-313
LTF300-395-333
LTF300-395-353
LTF300-470
LTF300-470-111
LTF300-470-131
LTF300-470-313
LTF300-470-333
LTF300-470-353
LTF300-530
LTF300-530-111
LTF300-530-131
LTF300-530-313
LTF300-530-333
LTF300-530-353
LTF300-625
LTF300-625-111
LTF300-625-131
LTF300-625-313
LTF300-625-333
LTF300-625-353
LTF300-850
LTF300-850-111
LTF300-850-131
LTF300-850-313
LTF300-850-333
LTF300-850-353
