Description

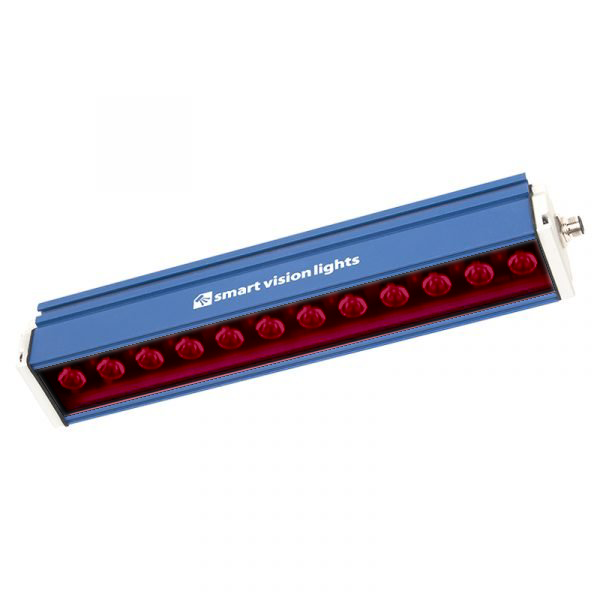

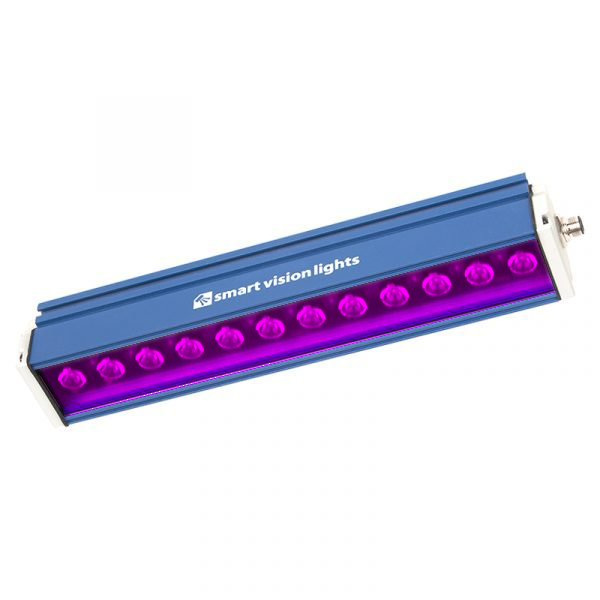

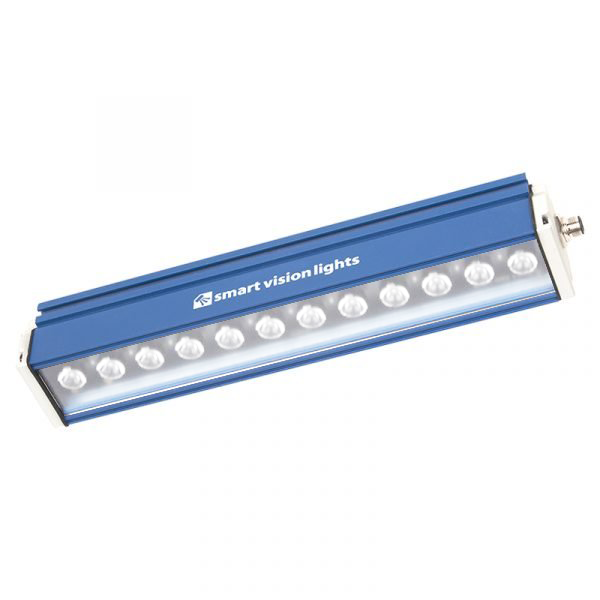

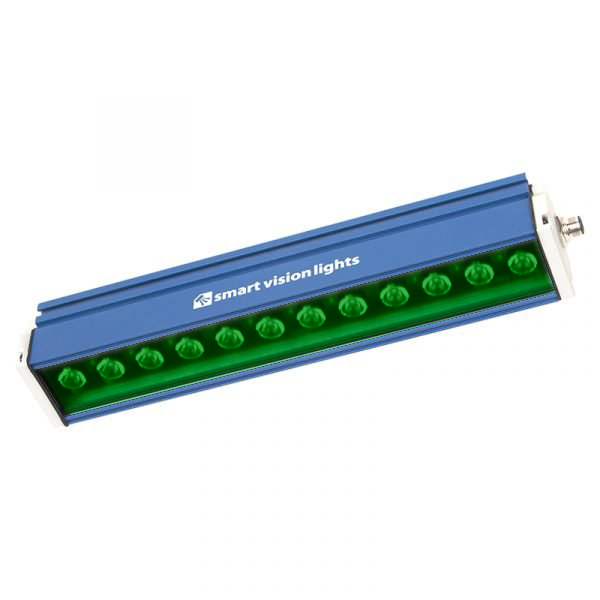

The LSR series is a SmartVisionLink™-enabled linear light that can produce over 340,000 lux and is offered in lengths up to 1200 mm. When used with the BTM-1000 Bluetooth accessory and the SmartVisionLink™ app, the LSR Series can have its intensity remotely adjusted. The LSR Series is easily mounted with the built-in T-slot rail system.
Recommended illumination usage: Bright Field, Direct Lighting, and Dark Field
Product Details
- Built-in Multi-Drive allows for continuous or OverDrive strobe operation
- PNP and NPN strobe input
- 5-pin M12 quick connect
- SmartVisionLink Enabled - SmartVisionLink™-enabled provides easy intensity adjustment in both continuous and OverDrive™ modes
- Ability to control intensity for the entire light or for each 300mm length on 600mm and longer LSR's if using BTM-1000 Bluetooth Module†
Smart Vision Lights LSR600 Technical Secifications
LSR600 Continuous Operation Specifications
Electrical Input | 24VDC +/–5% |
Input Current | Max. 990 mA per 300 mm segment |
Input Power | Max. 23.8 W per 300 mm segment |
PNP Trigger | 2mA @ 4VDC 7mA @ 12VDC 13.4mA @ 24VDC |
NPN Trigger |
12mA @ Ground (0VDC) |
Trigger Input | PNP > +4 VDC (24 VDC max.) to activate OR NPN > GND (<1VDC) to activate (not both) |
Mode Control | Connect pin 5 to 1-10 VDC (10 - 100% output); 24 VDC (Max) |
Strobe Duration | Min. 10 μs | Max. ∞ |
Strobe Trigger Latency | 10 μs |
Strobe Frequency | Max 4 kHz or 1 / Duty Cycle as calculated, whichever is less.1 |
Duty Cycle | Max. 10%1 |
Analog Intensity |
The output is adjustable from 10% - 100% of intensity limit by a 1 - 10 VDC signal. Jumpering pin 5 to pin 1 will provide maximum intensity. Intensity limit can be remotely adjusted via SmartVisionLink™2 |
Connection | 5-pin M12 connector |
Operating Temerature |
10° to 40° C (14° to 104° F) | RH max 80% non-condensing humidity |
Storage Temperature | 20° to 70° C ( -4° to 158° F) | RH max 80% non-condensing humidity |
Ip Rating | IP65 |
Weight |
LSR300: 1.8 lbs (~816 g) | LSR600: 3.2 lbs (~1.45 kg) LSR900: 4.8 lbs (~2.17 kg) | LSR1200: 6.5 lbs (~2.95 kg) |
Compliances | CE, IEC-62471, RoHS |
Warranty |
10 years |
LSR600 OverDrive Operation Specifications
Electrical Input | 24VDC +/–5% |
Input Current | Max. 5.1 A per 300 mm segment |
Input Power | Max. 122 W per 300 mm segment |
PNP Trigger | 2mA @ 4VDC 7mA @ 12VDC 13.4mA @ 24VDC |
NPN Trigger |
12mA @ Ground (0VDC) |
Trigger Input | PNP > +4 VDC (24 VDC max.) to activate or NPN > GND (<1VDC) to activate (not both) |
Mode Control |
Connect pin 5 to GND (See wiring configuration for more information) |
Strobe Duration | Min. 10 μs | Max. 50 ms |
Strobe Trigger Latency | 6 μs |
Strobe Frequency | Max 4 kHz or 1 / Duty Cycle as calculated, whichever is less.1 |
Duty Cycle | Not applicable |
Analog Intensity | The output is adjustable from 10% - 100% of intensity limit by a 1 - 10 VDC signal. Jumpering pin 5 to pin 1 will provide maximum intensity. Intensity limit can be remotely adjusted via SmartVisionLink™2 |
Connection | 5-pin M12 connector |
Operating Temerature |
10° to 40° C (14° to 104° F) | RH max 80% non-condensing humidity |
Storage Temperature | 20° to 70° C ( -4° to 158° F) | RH max 80% non-condensing humidity |
Ip Rating | IP65 |
Weight |
LSR300: 1.8 lbs (~816 g) | LSR600: 3.2 lbs (~1.45 kg) LSR900: 4.8 lbs (~2.17 kg) | LSR1200: 6.5 lbs (~2.95 kg) |
Compliances | CE, IEC-62471, RoHS |
Warranty |
10 years |
Lens Options
The LSR600 from Smart Vision Lights is available in three lens variations
Lens Option | Beam Angle |
Narrow 10 Deg (Standard) |
10 Degrees The standard lens option uses a 10° beam angle lens. Standard lenses create a narrow beam of illumination and are used for long working distances. |
Wide Lens |
30 Degrees Wide, 30° angle-cone lenses create a large area of illumination. They create a floodlight effect and can be used for shorter working distances. |
Line Lens |
10 x 50 Degrees The line lens option uses a 10° x 50° beam angle lens. They |
Working Distance
Smart Vision Lights recommends the LSR Series be used at a working distance between 200 mm to 2000 mm
Smart Vision Link
With integrated SmartVisionLink™, the LSR600 can be used with Smart Vision Light’s Bluetooth module (BTM-1000*). Users can install the SmartVisionLink™ app on Android or Apple phones and tablets to configure lighting parameters for each of the four lighting zones. Zone parameters include 10-100% intensity for both continuous and OverDrive™ strobe modes, as well as zone-disable. After parameters are set and saved, the BTM-1000 can be removed from the LSR600 and settings will be retained in LSR600E’s static memory. The SmartVisionlink™ app is available at no cost from the Google Play Store or Apple’s App Store. |
*The BTM-1000 is sold separately.
Connecting a BTM-1000 Module
The BTM-1000 can be connected directly to a light or attached to a jumper cable that is connected to a light. Once the light's intensity is set to desired level, the BTM-1000 can be removed from the light or cable. The pigtail end of the BTM-1000 is connected directly to the light or to the cable attached to the light.
Wavelength Colors
For colors not listed or available online, contact Support@MachineVisionDirect.com
Multi-Drive Wiring
Wiring Configuration for CONSTANT ON Operation
Wiring Configuration for STROBE/PULSE Overdrive Operation
MOUNTING
The LSR Series is easily mounted with the built-in T-slot rail system.
LSR600 Downloads
Possible Part Configurations:
LSR600-365
LSR600-395
LSR600-470
LSR600-505
LSR600-530
LSR600-625
LSR600-850
LSR600-940
LSR600-WHI
LSR600-365-W25
LSR600-395-W25
LSR600-470-W25
LSR600-505-W25
LSR600-530-W25
LSR600-625-W25
LSR600-850-W25
LSR600-940-W25
LSR600-WHI-W25
LSR600-365-L10
LSR600-395-L10
LSR600-470-L10
LSR600-505-L10
LSR600-530-L10
LSR600-625-L10
LSR600-850-L10
LSR600-940-L10
LSR600-WHI-L10
LSR600-365-LPI
LSR600-395-LPI
LSR600-470-LPI
LSR600-505-LPI
LSR600-530-LPI
LSR600-625-LPI
LSR600-850-LPI
LSR600-940-LPI
LSR600-WHI-LPI
LSR600-365-W25-LPI
LSR600-395-W25-LPI
LSR600-470-W25-LPI
LSR600-505-W25-LPI
LSR600-530-W25-LPI
LSR600-625-W25-LPI
LSR600-850-W25-LPI
LSR600-940-W25-LPI
LSR600-WHI-W25-LPI
LSR600-365-L10-LPI
LSR600-395-L10-LPI
LSR600-470-L10-LPI
LSR600-505-L10-LPI
LSR600-530-L10-LPI
LSR600-625-L10-LPI
LSR600-850-L10-LPI
LSR600-940-L10-LPI
LSR600-WHI-L10-LPI
