Description

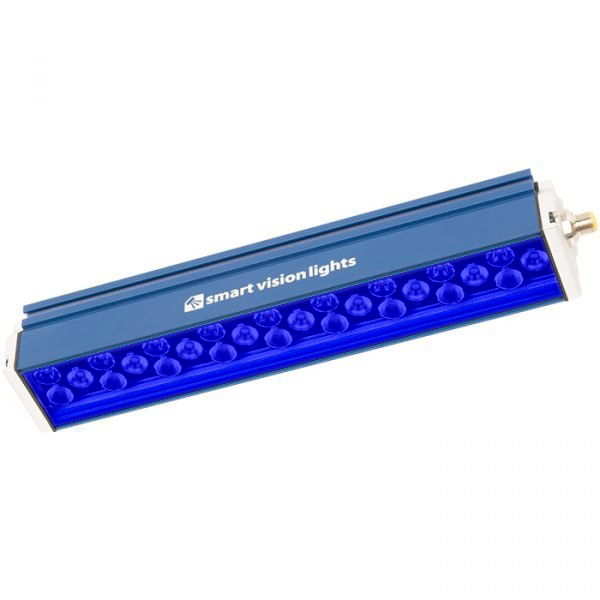

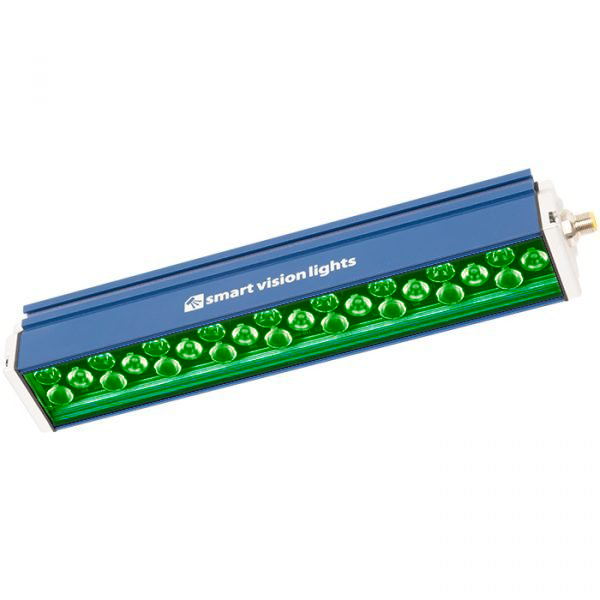

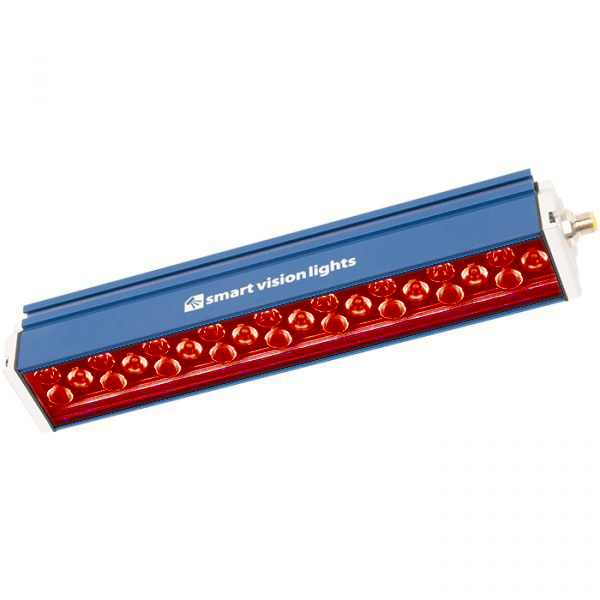

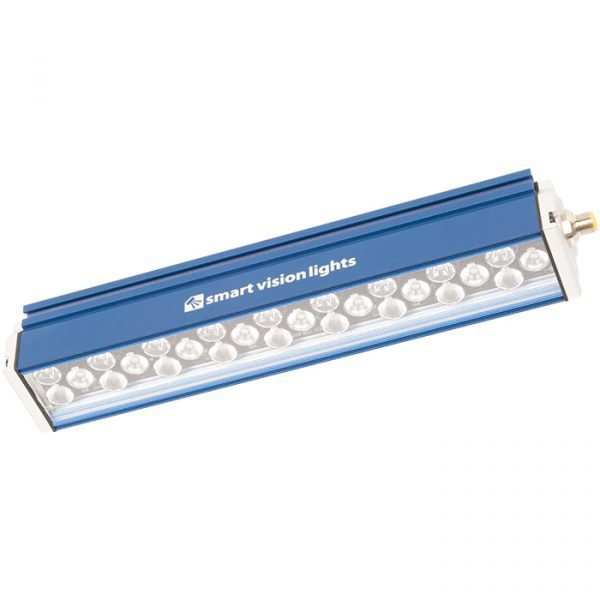

The LTF (Linear Tunable Field Of View) series (patent pending), a SmartVisionLinkTM-enabled light, features three independently adjustable beam angle lighting channels. When used with the BTM-1000 Bluetooth accessory* and the SmartVisionLinkTM app, lighting channels can be set to produce unique beam- angle combinations – optimizable for many different applications over a wide range of working distances and field of view requirements.
Recommended illumination usage: Bright Field, Direct Lighting, and Dark Field
Product Details
- Three independently tunable beam angle channels
- Built-in Multi-Drive allows for continuous or OverDrive strobe operation
- PNP and NPN strobe input
- 5-pin M12 quick connect
- SmartVisionLink Enabled - SmartVisionLink™-enabled provides easy intensity adjustment in both continuous and OverDrive™ modes
- Ability to switch and mix channels to adjust working distance and illumination angle*
- Ability to control intensity for the entire light or for each of the three LED channels if using BTM-1000 Bluetooth Module†
Smart Vision Lights LTF300 Technical Secifications
LTF300 Continuous Operation Specifications
| Electrical Input | 24VDC +/–5% |
| Input Current | Max. 1.27 A per 300 mm segment |
| Input Power | Max. 12.1 A per 300 mm segment |
| PNP Trigger | 2mA @ 4VDC 7mA @ 12VDC 13.4mA @ 24VDC |
| NPN Trigger |
12mA @ Ground (0VDC) |
| Trigger Input | PNP > +4 VDC (24 VDC max.) to activate or NPN > GND (<1VDC) to activate (not both) |
| Mode Control | Connect pin 5 to 1-10 VDC (10 - 100% output); 24 VDC (Max) |
| Strobe Duration | Min. 30 μs | Max. ∞ |
| Strobe Trigger Latency | 10 μs |
| Strobe Frequency | Max 4 kHz or 1 / Duty Cycle as calculated, whichever is less.1 |
| Duty Cycle | Not applicable |
| Status Indicator | User configurable via SmartVisionLink™ |
| Analog Intensity | The output is adjustable from 10% - 100% of intensity limit by a 1 - 10 VDC signal. Jumpering pin 5 to pin 1 will provide maximum intensity. Intensity limit can be remotely adjusted via SmartVisionLink™2 |
| Connection | 5-pin M12 connector |
| Operating Temerature |
-10° to 40° C (14° to 104° F) | RH max 80% non-condensing humidity |
| Storage Temperature | -20° to 70° C ( -4° to 158° F) | RH max 80% non-condensing humidity |
| Ip Rating | IP65 |
| Weight |
LTF300: 1.8 lbs (~816 g) | LTF600: 3.2 lbs (~1.45 kg) LTF900: 4.8 lbs (~2.17 kg) | LTF1200: 6.5 lbs (~2.95 kg) |
| Compliances | CE, IEC-62471, RoHS |
| Warranty |
10 years |
LTF300 Continuous Operation Specifications
| Electrical Input | 24VDC +/–5% |
| Input Current | Max. 12.7 A per 300 mm segment |
| Input Power | Max. 290 W per 300 mm segment |
| PNP Trigger | 2mA @ 4VDC 7mA @ 12VDC 13.4mA @ 24VDC |
| NPN Trigger |
12mA @ Ground (0VDC) |
| Trigger Input | PNP > +4 VDC (24 VDC max.) to activate or NPN > GND (<1VDC) to activate (not both) |
| Mode Control |
Connect pin 5 to GND (See wiring configuration for more information) |
| Strobe Duration | Min. 30 μs | Max. 50 ms |
| Strobe Trigger Latency | 6 μs |
| Strobe Frequency | Max 4 kHz or 1 / Duty Cycle as calculated, whichever is less.1 |
| Duty Cycle | Max. 10%1 |
| Status Indicator | User configurable via SmartVisionLink™ |
| Analog Intensity |
The output is adjustable from 10% - 100% of intensity limit by a 1 - 10 VDC signal. Jumpering pin 5 to pin 1 will provide maximum intensity. Intensity limit can be remotely adjusted via SmartVisionLink™2 |
| Connection | 5-pin M12 connector |
| Operating Temerature |
-10° to 40° C (14° to 104° F) | RH max 80% non-condensing humidity |
| Storage Temperature | -20° to 70° C ( -4° to 158° F) | RH max 80% non-condensing humidity |
| Ip Rating | IP65 |
| Weight |
LTF300: 1.8 lbs (~816 g) | LTF600: 3.2 lbs (~1.45 kg) LTF900: 4.8 lbs (~2.17 kg) | LTF1200: 6.5 lbs (~2.95 kg) |
| Compliances | CE, IEC-62471, RoHS |
| Warranty |
10 years |
Lens Options
The LTF300 from Smart Vision Lights is available in three lens variations
| Lens Option | Beam Angle |
|
Narrow (1 Option) |
10 Degrees The standard lens option uses a 10° beam angle lens. Standard lenses create a narrow beam of illumination and are used for long working distances. |
|
Wide Lens (3 Option) |
30 Degrees Wide, 30° angle-cone lenses create a large area of illumination. They create a floodlight effect and can be used for shorter working distances. |
|
Wide Lens (5 Option) |
50 Degrees Wide, 50° angle-cone lenses create the largest area of illumination. They create a floodlight effect and can be used for the shortest working distances. |
Lens Configurations
| Lens Option | Beam Angle |
|
153 (Default) |
|
|
111 |
|
|
131 |
|
|
313 |
|
|
333 |
|
|
353 |
|
Working Distance
Smart Vision Lights recommends the LTF Series be used at a working distance between 200 mm to 2000 mm
Smart Vision Link
| With integrated SmartVisionLink™, the LTF300 can be used with Smart Vision Light’s Bluetooth module (BTM-1000*). Users can install the SmartVisionLink™ app on Android or Apple phones and tablets to configure lighting parameters for each of the four lighting zones. Zone parameters include 10-100% intensity for both continuous and OverDrive™ strobe modes, as well as zone-disable. After parameters are set and saved, the BTM-1000 can be removed from the LTF300 and settings will be retained in LTF300E’s static memory. The SmartVisionlink™ app is available at no cost from the Google Play Store or Apple’s App Store. |  |
*The BTM-1000 is sold separately.
Connecting a BTM-1000 Module
The BTM-1000 can be connected directly to a light or attached to a jumper cable that is connected to a light. Once the light's intensity is set to desired level, the BTM-1000 can be removed from the light or cable. The pigtail end of the BTM-1000 is connected directly to the light or to the cable attached to the light.
Wavelength Colors
Multi-Drive Wiring
Wiring Configuration for CONSTANT ON Operation
Wiring Configuration for STROBE/PULSE Overdrive Operation
MOUNTING
Four (4) screw holes are located on the bottom of the light for easy mounting. Four (4) mounting screws are included with the LTF300 Linear Light.
Additionally, a 3-Axis pan and tilt mount (Part #: PB300-M5) can be used for mounting. This is optional and can be purchased separately.
LTF300 Downloads
 |
 |
 |
 |
Possible Part Configurations:
LTF300-WHI
LTF300-WHI-111
LTF300-WHI-131
LTF300-WHI-313
LTF300-WHI-333
LTF300-WHI-353
LTF300-365
LTF300-365-111
LTF300-365-131
LTF300-365-313
LTF300-365-333
LTF300-365-353
LTF300-395
LTF300-395-111
LTF300-395-131
LTF300-395-313
LTF300-395-333
LTF300-395-353
LTF300-470
LTF300-470-111
LTF300-470-131
LTF300-470-313
LTF300-470-333
LTF300-470-353
LTF300-530
LTF300-530-111
LTF300-530-131
LTF300-530-313
LTF300-530-333
LTF300-530-353
LTF300-625
LTF300-625-111
LTF300-625-131
LTF300-625-313
LTF300-625-333
LTF300-625-353
LTF300-850
LTF300-850-111
LTF300-850-131
LTF300-850-313
LTF300-850-333
LTF300-850-353
