Description

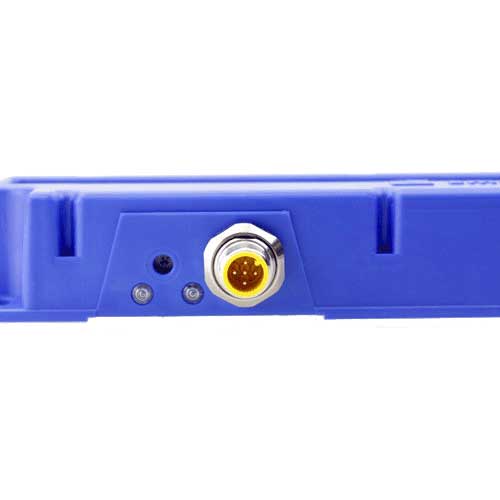

- Linear Lights for common illumination of a machine vision system
- 12 HB high current LED's
- Built in SMART driver - No external driver needed
- PNP and NPN strobe
- Constant or strobed operation
- Manual intensity control - Integrated potentiometer dimming
- Remote intensity control - Analog 0-10VDC
- Easily connect together
- Ability to mount on aluminum extrusion
Smart Vision Lights L300 Technical Specifications
L300 Specifications
Electrical Input | 24 VDC +/- 5% |
Input Current | Max. 700 mA |
Input Power | Max. 17 W |
PNP Trigger | 2.8 mA @ 4VDC | 8.8 mA @ 12VDC | 17.6 mA @ 24VDC |
NPN Trigger | 14.4 mA @ Common (0VDC) |
Trigger Input | PNP > +4 VDC (24 VDC max.) to activate or NPN ≥ GND <1VDC to activate (not both) |
Strobe Duration | Min. 30 μs | Max. ∞ |
Strobe Trigger Latency | 10 μs |
Power Indicator | Turns green when powered up |
Status Indicators | Strobe indicator will turn yellow when on |
Intensity Limit | 270° turn-pot. Turn clockwise to increase intensity limit. |
Analog Intensity | The output is adjustable from 10% - 100% of intensity limit by a 1 - 10 VDC signal. Jumpering pin 5 to pin 1 will provide maximum intensity |
Connection | 5-pin M12 connector |
Operating Temperature | -10° to 40° C (14° to 104° F) | RH max 80% non-condensing humidity |
Storage Temperature | -20° to 70° C (-4° to 158° F) | RH max 80% non-condensing humidity |
IP Rating | IP50 |
Weight | ~0.81 lbs | ~370 g |
Compliances | CE, IEC 62471, RoHS |
Warranty | 10 years1 |
L300 Downloads
Possible Part Configurations:
L300-365
L300-395
L300-470
L300-505
L300-530
L300-625
L300-850
L300-940
L300-WHI
L300-365-W
L300-395-W
L300-470-W
L300-505-W
L300-530-W
L300-625-W
L300-850-W
L300-940-W
L300-WHI-W
L300-470-L
L300-505-L
L300-530-L
L300-625-L
L300-850-L
L300-940-L
L300-WHI-L
L300-470-LPI
L300-505-LPI
L300-530-LPI
L300-625-LPI
L300-WHI-LPI
L300-470-W-LPI
L300-505-W-LPI
L300-530-W-LPI
L300-625-W-LPI
L300-WHI-W-LPI
L300-470-L-LPI
L300-505-L-LPI
L300-530-L-LPI
L300-625-L-LPI
L300-WHI-L-LPI
