Advanced Illumination - Spot Lights

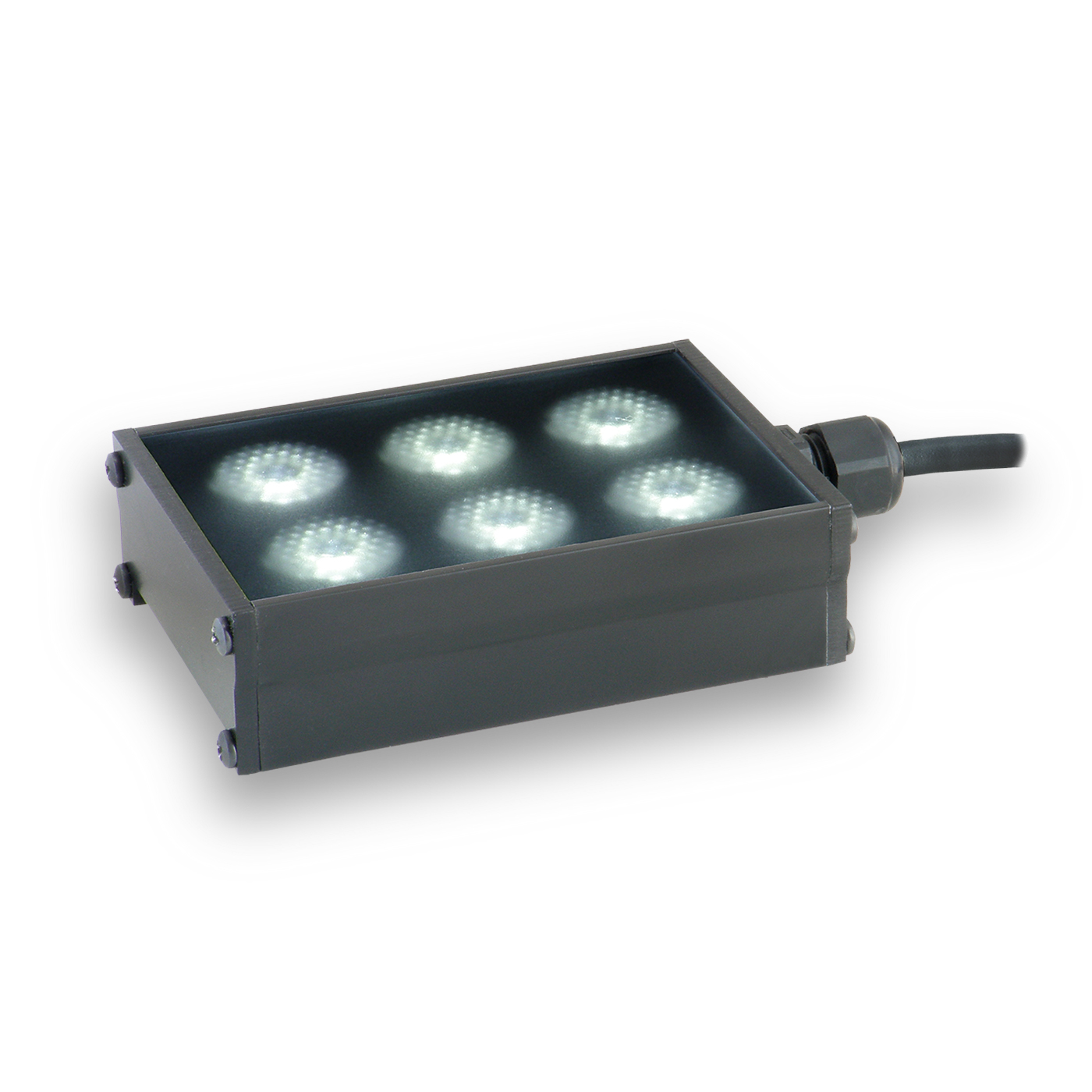

The AL143, 2×3 Spot Light is available in a wide range of wavelengths with multiple lens options. Ideal Illumination for medium working distances. Convenient mounting with an M4 nut channel.

The EuroBrite™ lineup outdoes the competition in so many ways. With more features at a competitive price point, there's no better value in machine vision lighting. Complete built-in control for continuous and strobe operation modes. Adaptive Power™, a feature of the EuroBrite™ lighting controller, utilizes an onboard thermistor to maximize light output in continuous mode. Adaptive Overdrive™, another feature of the EuroBrite™ lighting controller, provides a maximal output pulse in strobe mode regardless of the exposure period. IP67 sealed enclosure suitable for washdown environments. Rugged construction that has been tested to withstand over 1000lb. Industrial grade LEDs providing high-intensity illumination of 136klux at a working distance of 100mm.

The EuroBrite™ lineup outdoes the competition in so many ways. With more features at a competitive price point, there’s no better value in machine vision lighting. Complete built-in control for continuous and strobe modes. Adaptive Power™, a feature of the EuroBrite™ lighting controller, utilizes an onboard thermistor to maximize light output in continuous mode. Adaptive Overdrive,™ another feature of the EuroBrite™ lighting controller, provides a maximal output pulse in strobe mode regardless of the exposure period. IP67 sealed enclosure suitable for washdown environments. Rugged construction that has been tested to withstand over 1000lb. Industrial grade LEDs providing high-intensity illumination of 85klux (working distance of 100mm). Daisy chain up to 4 for a combined length of 24”.

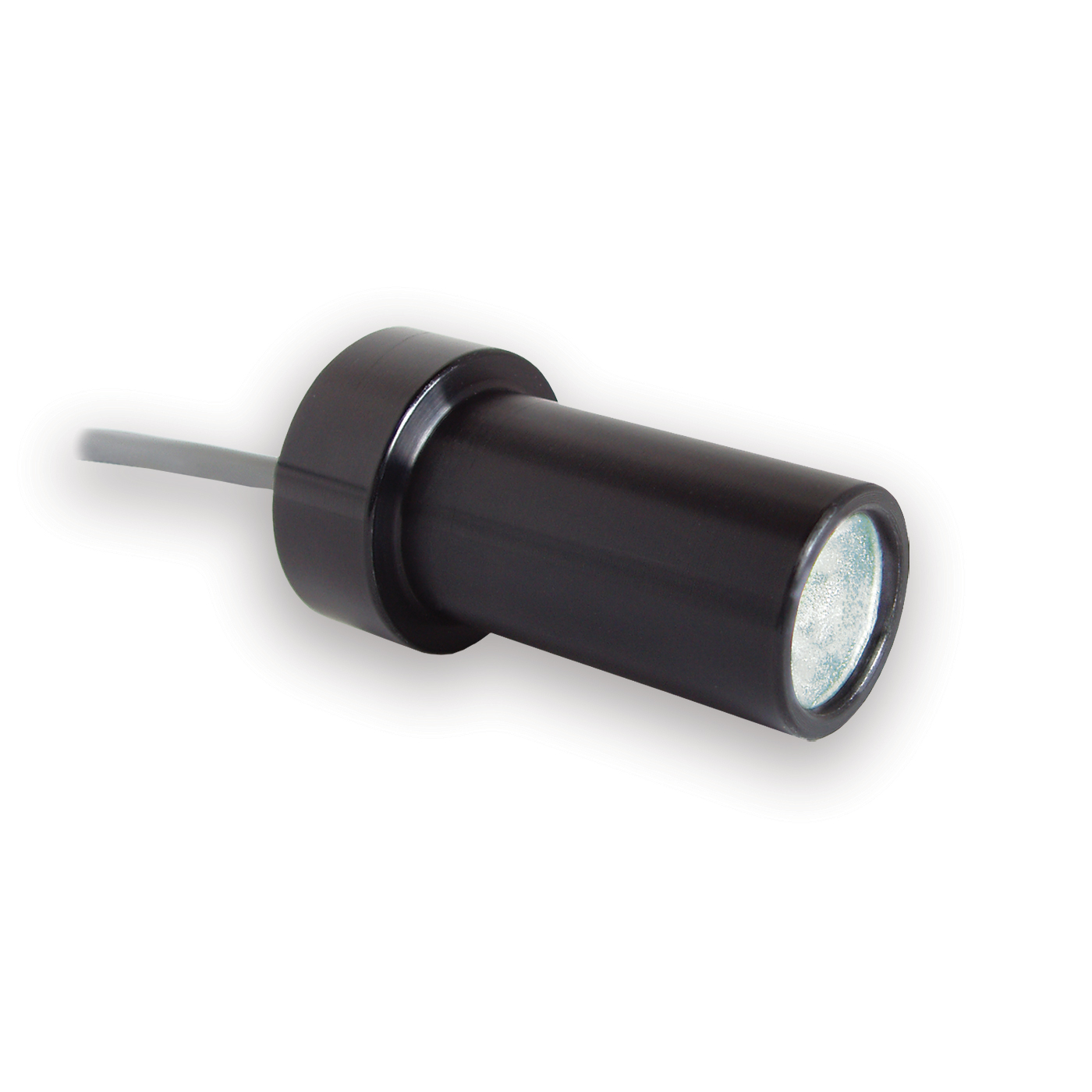

The SL073 is a compact spot light best suited for use in space-restrictive areas and relatively close working distance applications. It is an excellent low-cost spot light alternative. Standard visible monochromatic wavelengths, including white and also 850nm NIR are available, as are additional diffusers and polarization. The SL073 differs from the SL164 in being smaller diameter and offering fewer wavelength choices (no UV), with a single lens option in favor of it’s small barrel diameter.

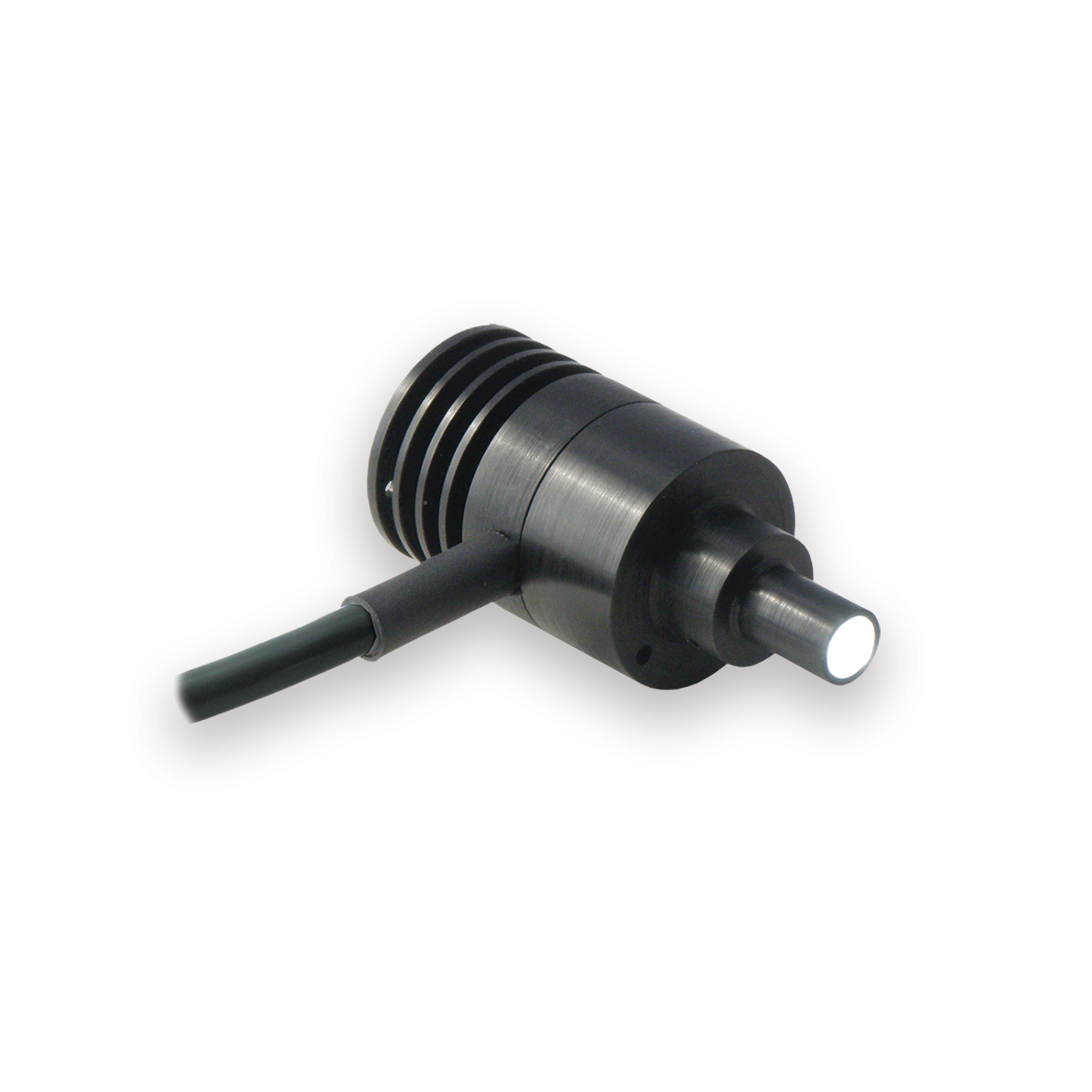

The SL112 is characterized as a Medium Intensity Spot/Coaxial Light and is designed primarily to replace fiber optic light sources in coaxial lensing applications. The spot light is designed with sufficient thermal management to provide 22kLux at a working distance of 4″ (100mm).

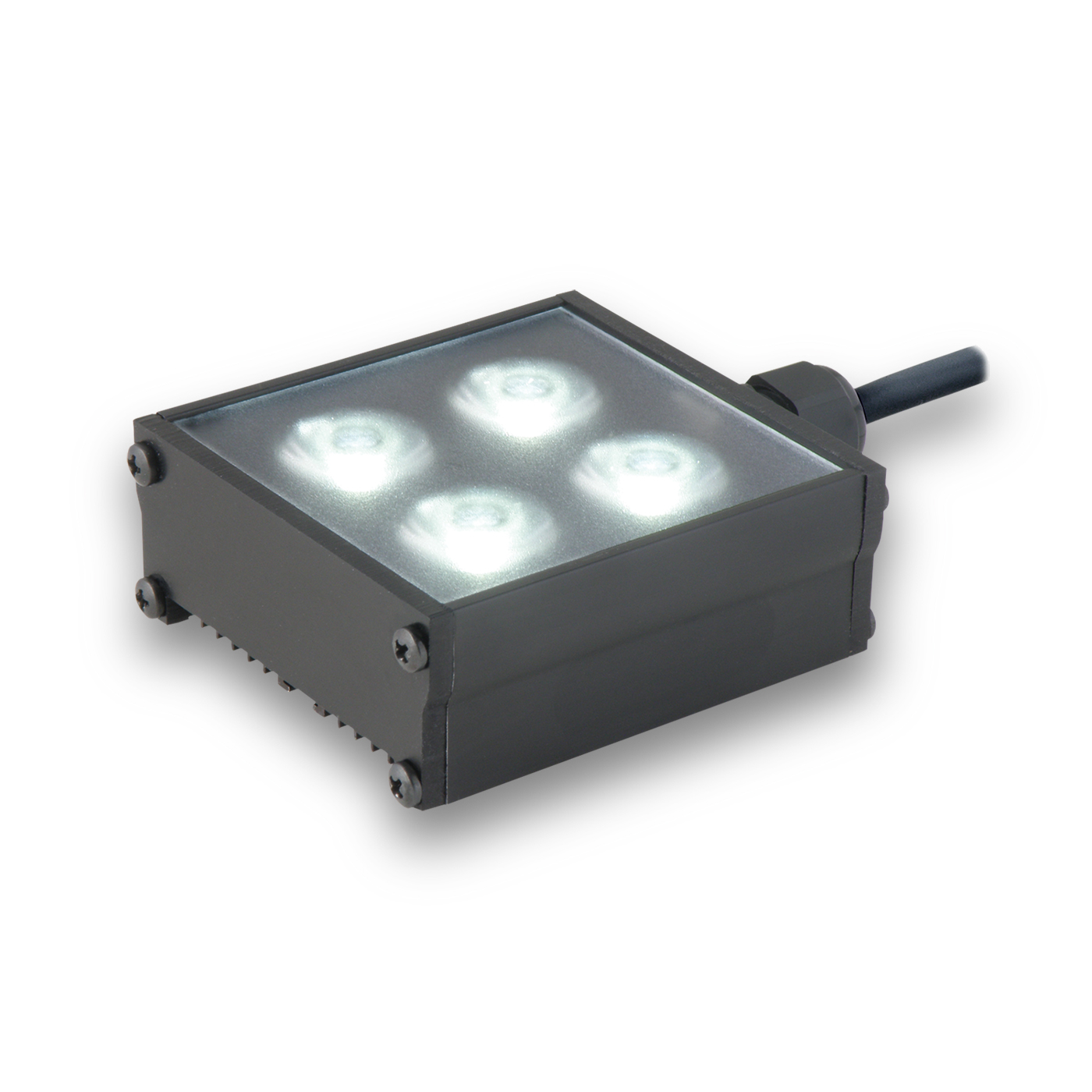

The SL147 is characterized as a 2×2 Spot Light with the necessary optics to project light over longer distances. Ideal Illumination for medium working distances. The SL147 provides 88kLux at a working distance of 4″ (100mm). Convenient mounting with an M4 nut channel.

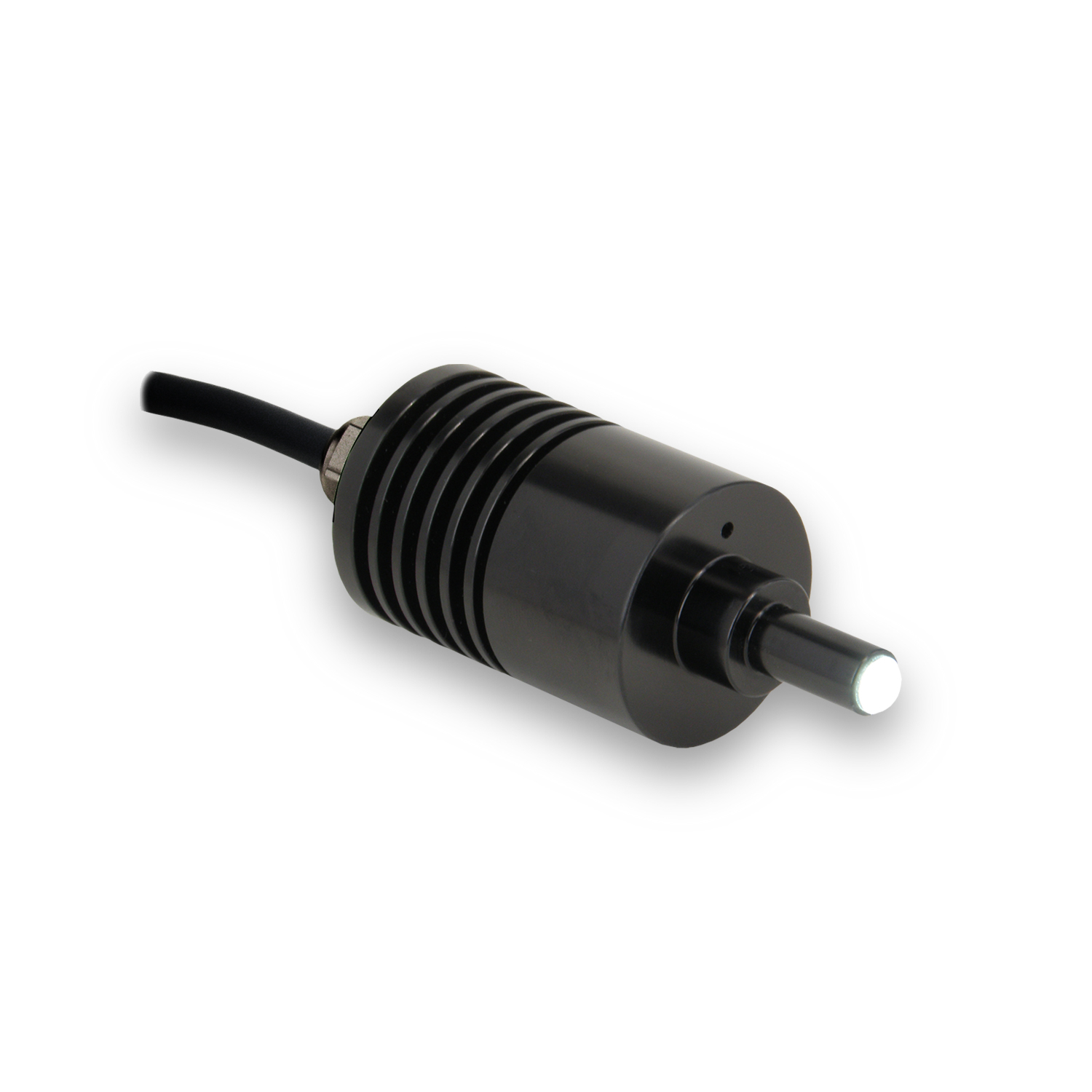

The SL162 is characterized as a High Intensity Spot/Coaxial Light and is designed primarily to replace fiber optic light sources in coaxial lensing applications. The spot light is designed with sufficient thermal management to provide 33kLux at a working distance of 4″ (100mm).

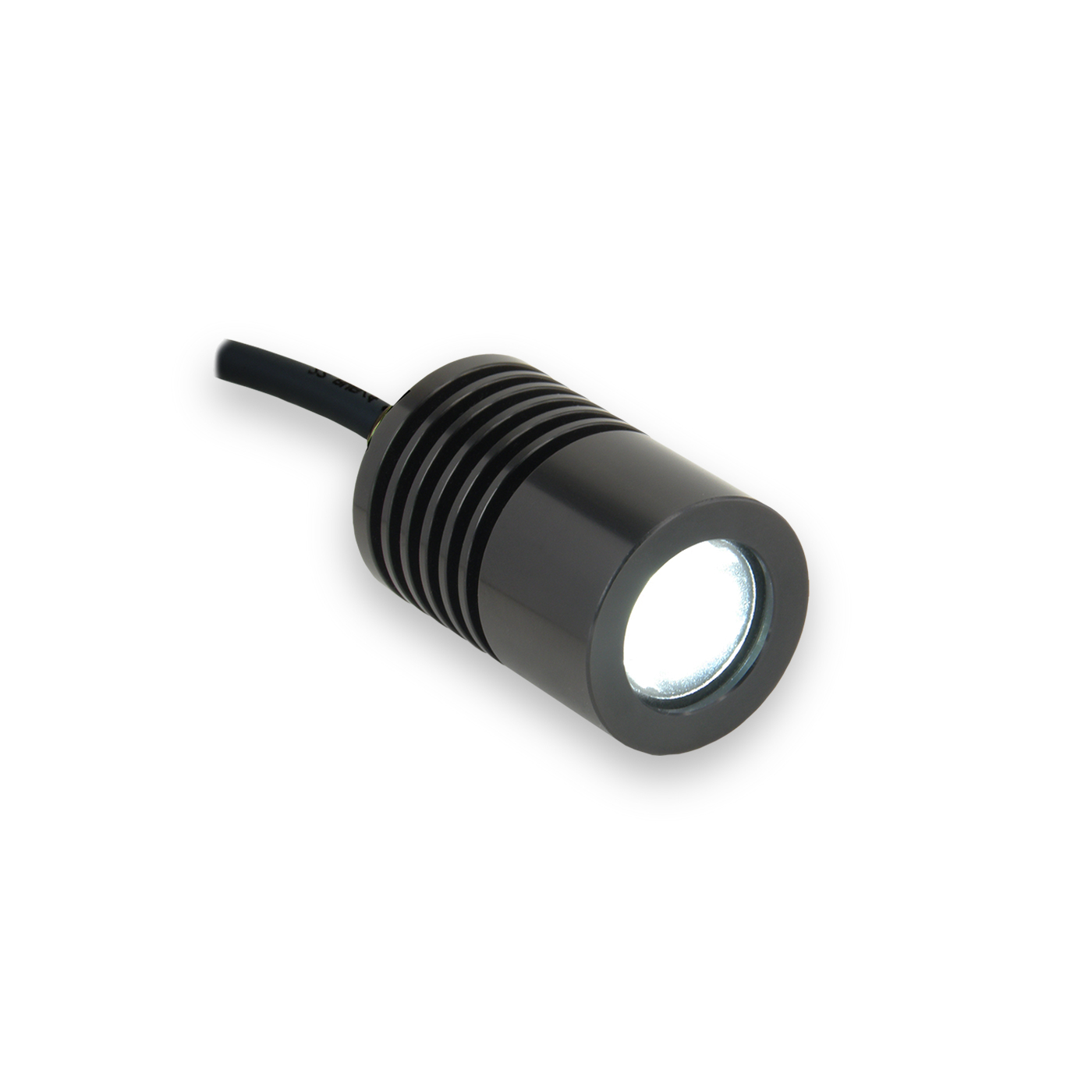

The SL164 is characterized as a Compact High Intensity Spot Light with sufficient thermal management to provide 200kLux at a working distance of 4″ (100mm).

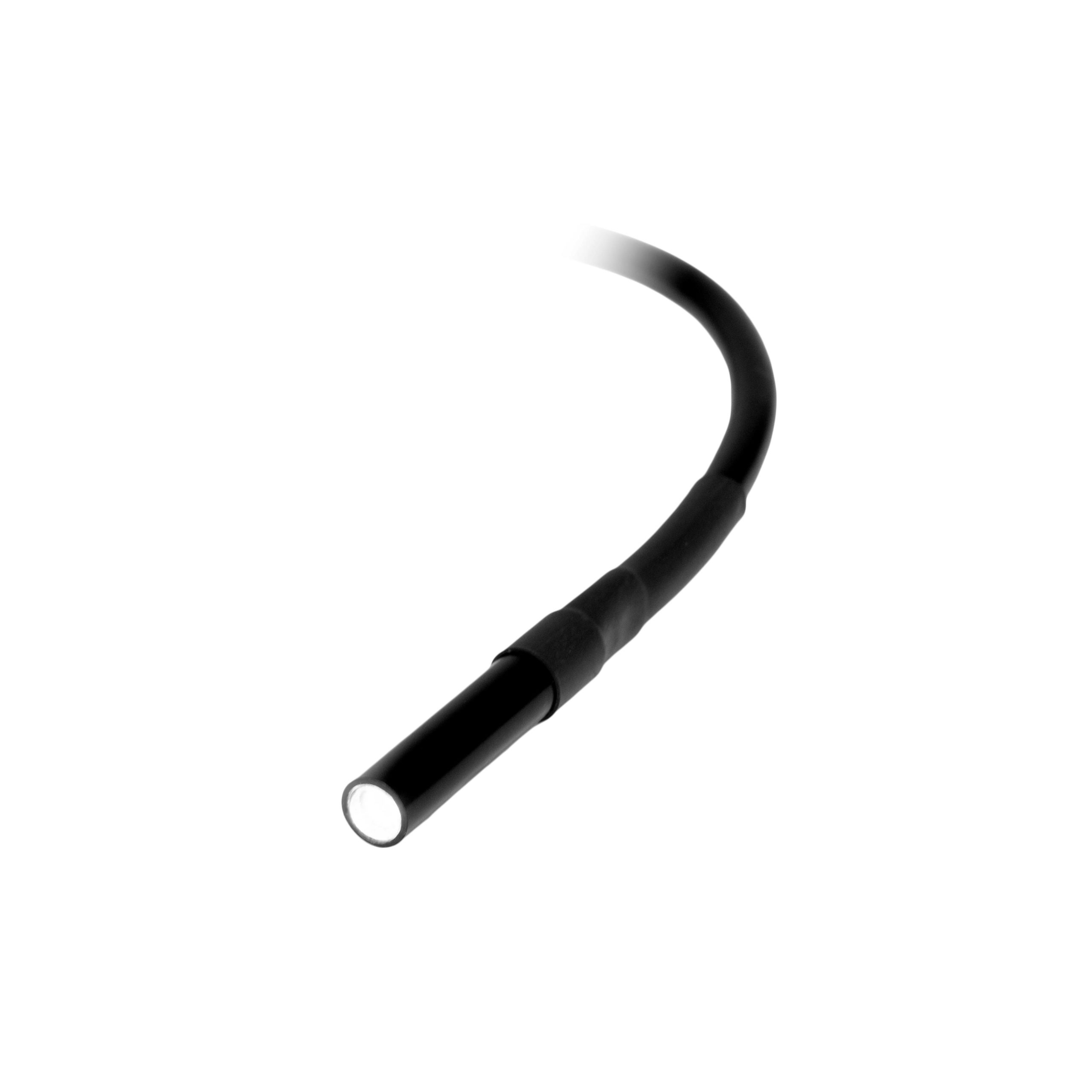

The SL223 is characterized as a MicroBrite™ Spot/Coaxial Light and is designed primarily to replace fiber optic light sources in coaxial lensing applications. The SL223 is also designed for general lighting purposes where a very intense, miniaturized light source is required. General purpose spot lights may be used to create both dark field and bright field affects, depending on how they are deployed during the inspection. The spot light is designed to provide 8.1kLux at a working distance of 4″ (100mm) and is available in a very wide range of wavelengths from UV to IR. The SL223 is rated for IP65 washdown capability.

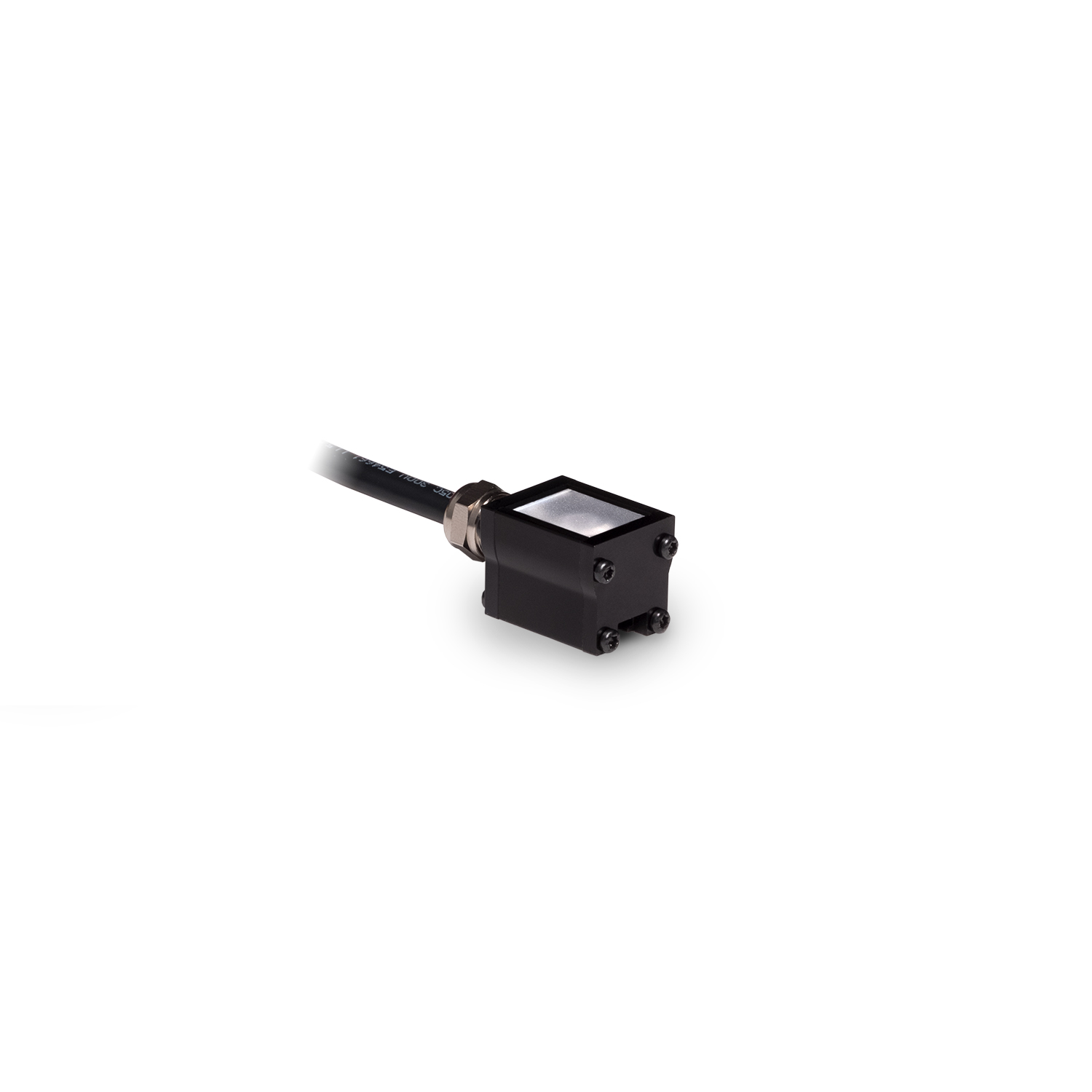

The SL243 Spot Light provides an industry leading performance to size ratio while maintaining desirable thermal dissipation. Perfect for applications that require small footprint machine vision components.

High-Intensity Illumination in a Compact Package

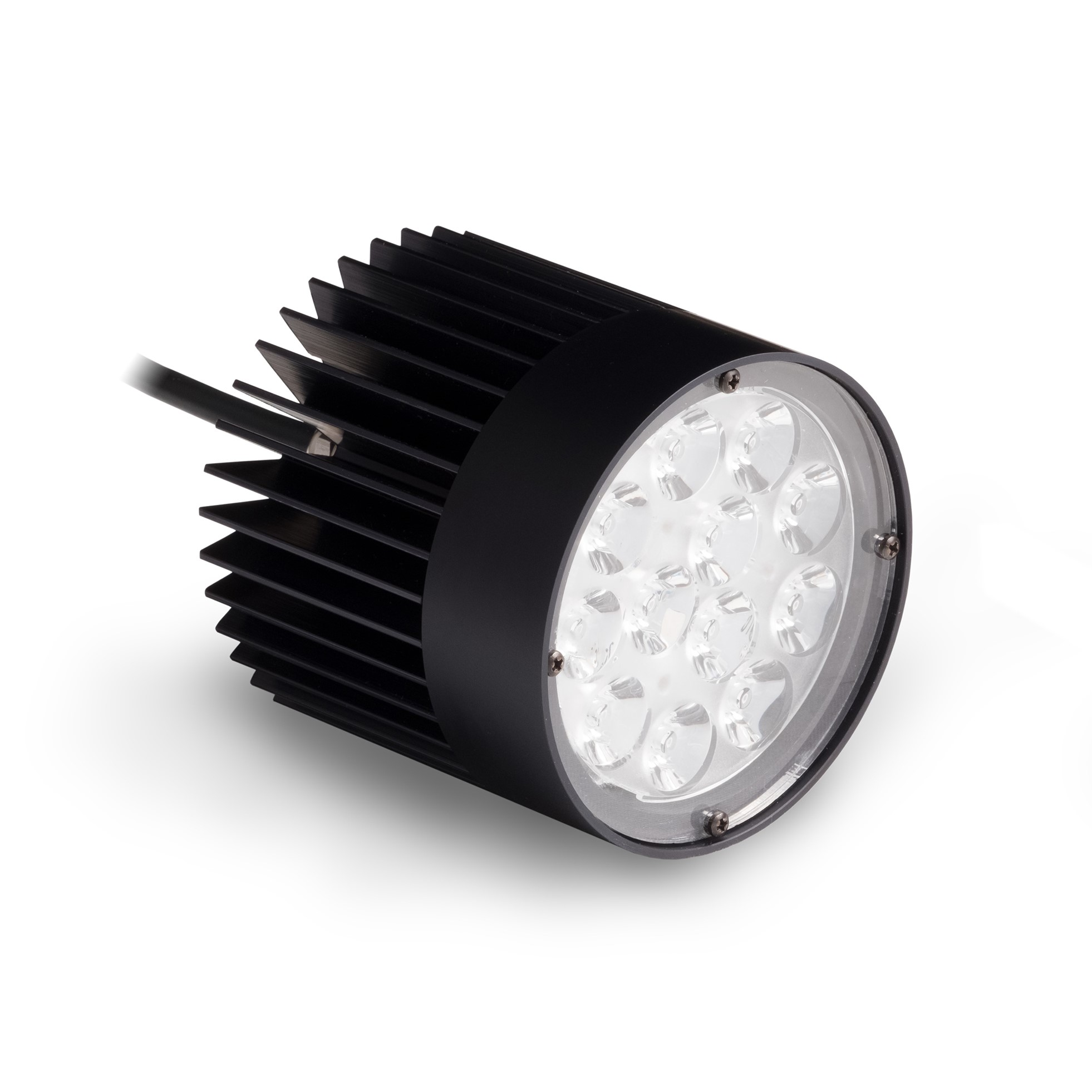

The SL246 ultra high intensity spot light is engineered to provide high-power on target from longer than typical vision working distances, up to 3m. The SL246 differs from the UltraSeal SL316 in that it is not sealed for harsh or food zone environments and is designed for longer working distances. The SL246 may also be differentiated from other, smaller spot lights primarily in the larger canister size and power on target potential.

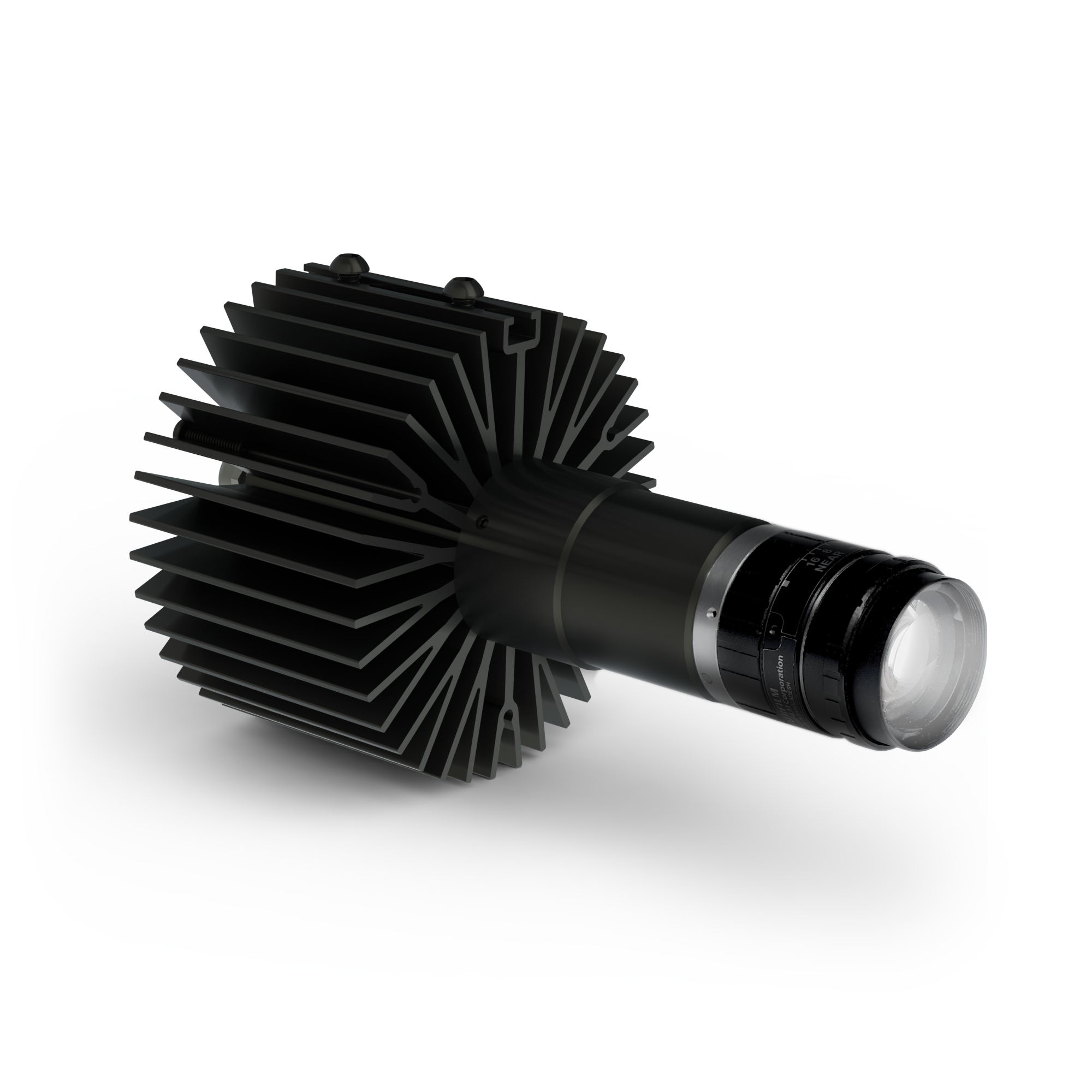

A structured LED light projector featuring a large cluster of high-intensity LEDs in a focused, homogeneous Spot Light. With significantly higher output intensity, the SL256 is up to 9x brighter than the existing SL191 Pattern Projecting Spot Light and more than 3x brighter than the leading competitive structured light projector.

With an intensity of over 150 klx at 300 mm WD in continuous operation, the SL316 UltraSeal Spot Light delivers industry-leading intensity with consistent uniformity.
