Advanced Illumination - Bar Lights

The EuroBrite™ lineup provides industry-leading technology with value pricing for an unmatched performance/price ratio. Complete built-in control for continuous and strobe modes. Adaptive Power™, a feature of the EuroBrite™ lighting controller, utilizes an onboard thermistor to maximize light output in continuous mode. Adaptive Overdrive™, another feature of the EuroBrite™ lighting controller, provides a maximal output pulse in strobe mode regardless of the exposure period. IP67 sealed enclosure suitable for washdown environments. Rugged construction that has been tested to withstand over 1000lb. Industrial-grade LEDs providing high-intensity illumination of 45klux (working distance of 200mm). Daisy-chain up to 4 for a combined length of 48″.

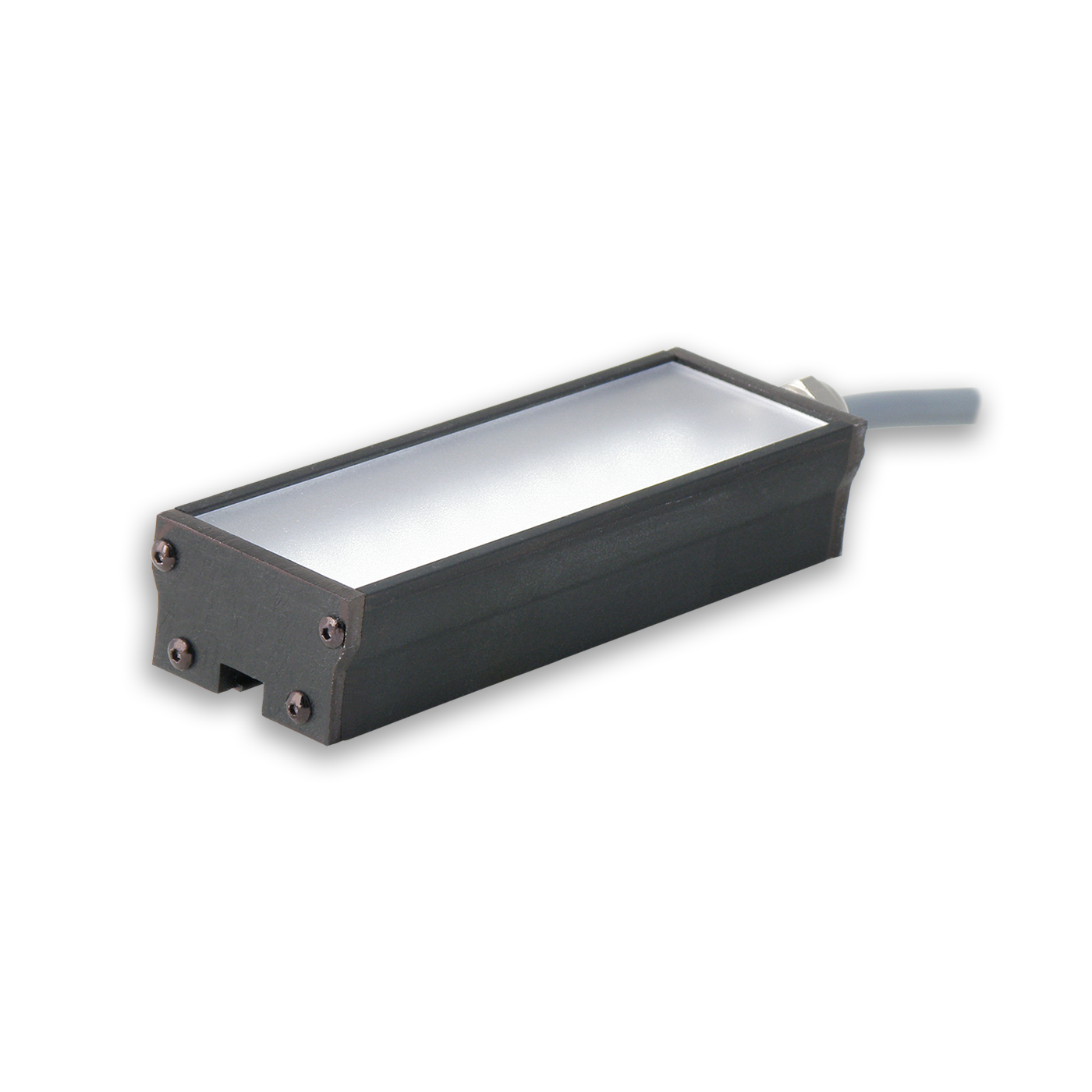

The AL116 High Dispersion Wide Bar Light Series delivers uniform, soft illumination across a broad area, ideal for machine vision applications sensitive to harsh shadows and certain specular reflections. With twice as many LEDs as the narrower AL126, the AL116 provides increased intensity over a wider area while maintaining soft shadowing. Furthermore, its diffuse characteristics make it highly suitable for close working distances, eliminating the potential for intensity hotspots often produced by focused bar lights.

• Scalable Extrusion-Based Housing: Engineered with extrusion-based aluminum construction, allowing for scalability while maintaining structural rigidity and durability.

• High Dispersion Output: Produces a highly uniform, scattered light output that results in soft shadows and reduced specular reflections.

• Wider Form Factor: Designed with a wider profile to illuminate larger target areas and accommodate a higher density of LEDs for increased overall intensity compared to the AL126.

• M4 Mounting Channel: Equipped with an M4 mounting channel on its base, allowing for highly adjustable positioning.

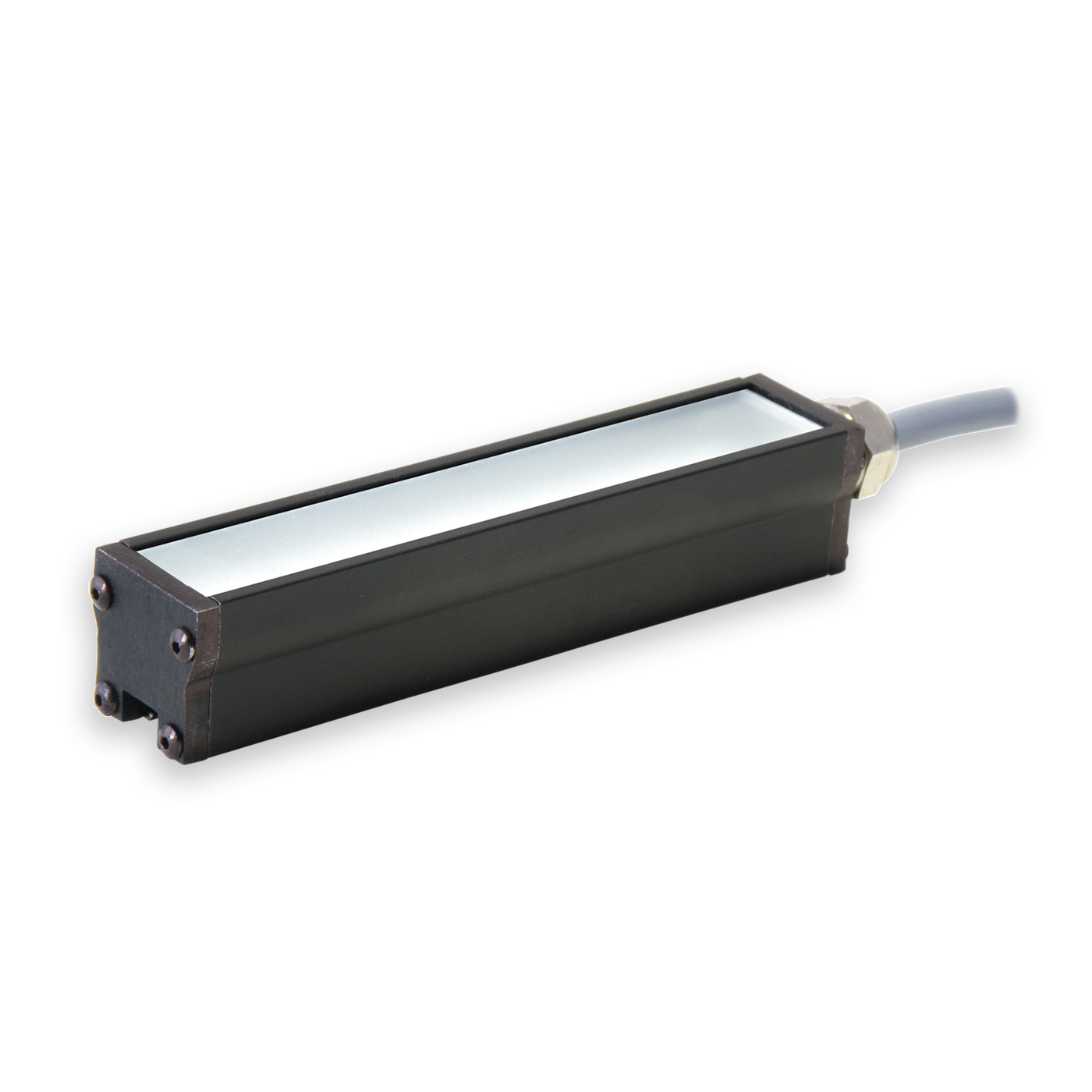

The AL126 High Dispersion Narrow Bar Lights deliver uniform, soft illumination, making them ideal for machine vision applications sensitive to harsh shadows and certain specular reflections. Its narrower form factor than the wider AL116 lets it integrate more easily into space-constrained machine builds. Furthermore, its diffuse characteristics make it highly suitable for close working distances, eliminating the potential for intensity hotspots often produced by focused bar lights.

• Scalable Extrusion-Based Housing: Engineered with extrusion-based aluminum construction, allowing for scalability while maintaining structural rigidity and durability.

• High Dispersion Output: Produces a highly uniform, scattered light output that results in soft shadows and reduced specular reflections.

• Narrow Form Factor: Designed with a narrower profile to facilitate integration into space-constrained machine vision applications where the wider AL116 may not fit.

• M4 Mounting Channel: Equipped with an M4 mounting channel on its base, allowing for highly adjustable positioning

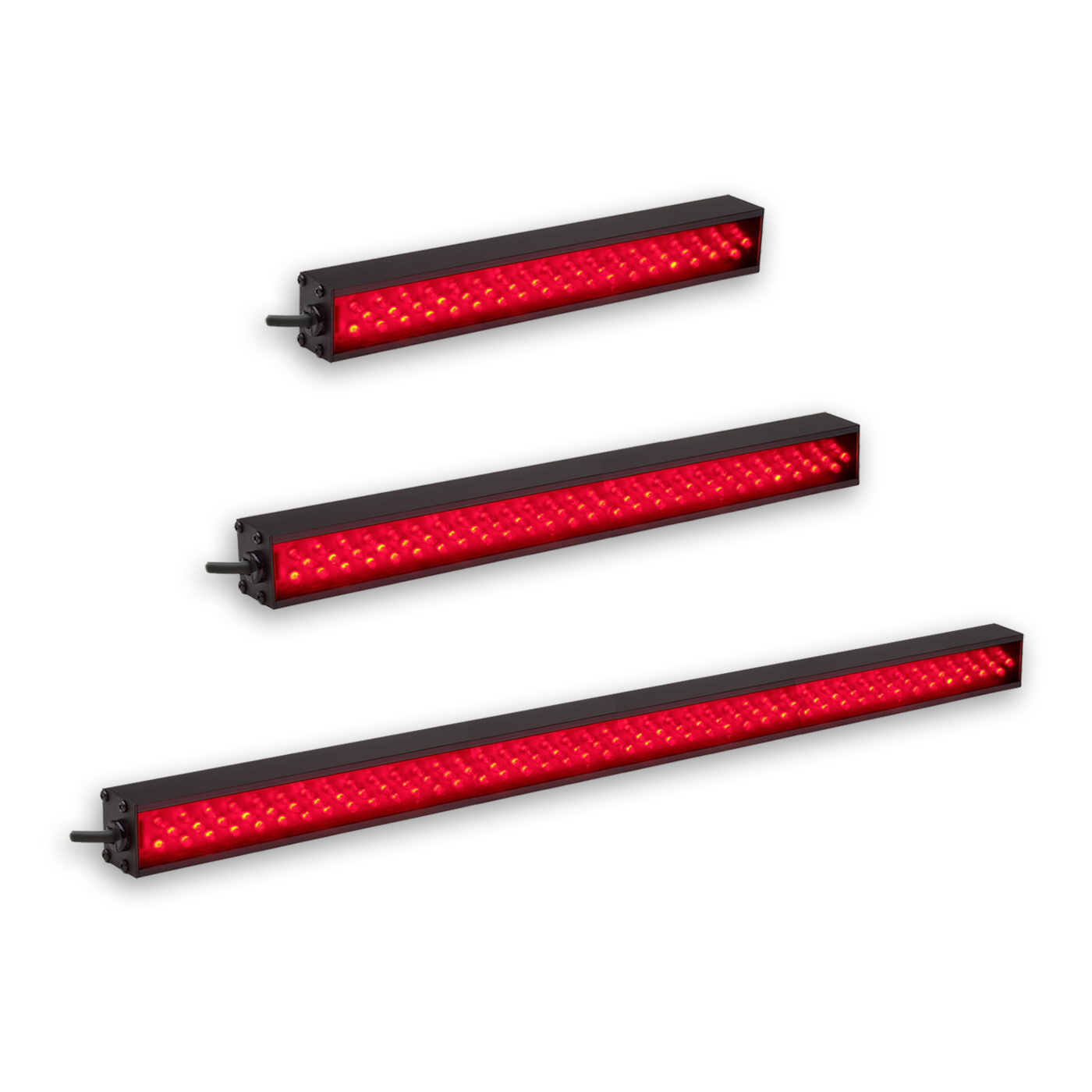

Designed for machine vision applications that require broad illumination over a wide area with controlled fall off. This BALA (Broad Area Linear Array) bar light series is expandable in 1″ increments up to 82″. Applications requiring an even wider area of illumination can utilize two BALA bar lights aligned in parallel, facing each other. AL150 derivatives include AL4424 (4″), AL4554 (9″) and AL46120 (20″) (which represent legacy part numbers)

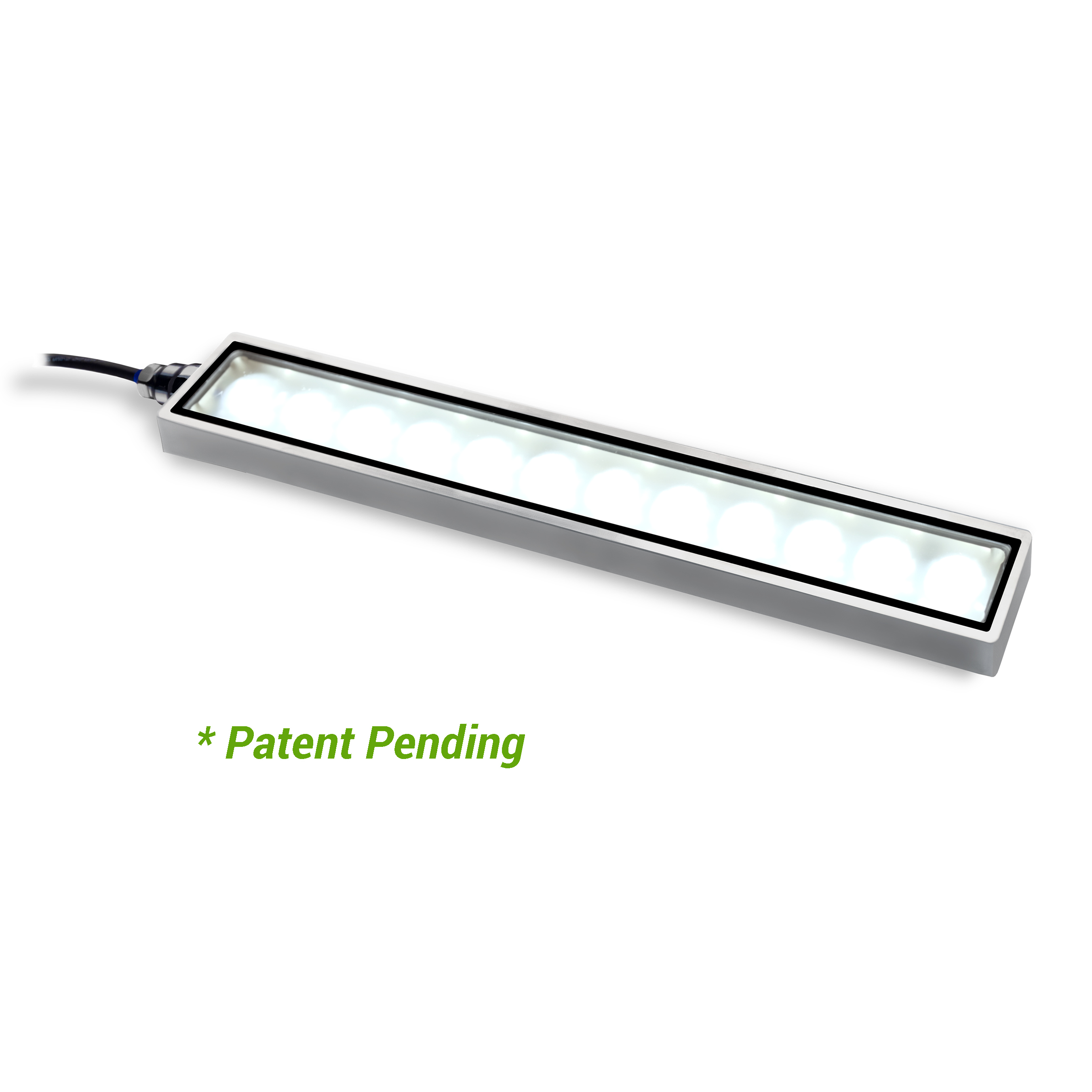

Engineered for the most demanding washdown applications, the AL247 Series UltraSeal™ Bar Light provides exceptionally rugged illumination. With IP69K certification from a 3rd-party lab, these lights ensure complete protection against dust ingress and high-pressure, high-temperature steam cleaning.
Furthermore, their patented design is virtually crevice-free and features no exposed fasteners, significantly minimizing surfaces where contaminants like food, dust, or debris can collect. These characteristics make the AL247 UltraSeal™ Bar Lights ideal for hygienic inspection environments, aseptic manufacturing, and food and beverage applications.

Part of the MicroBrite™ family of high performance, compact machine vision lights.

This bar light outperforms the competition with high intensity output of 73 kLux at a working distance of 100mm.

Available in a broad range of wavelengths with expandable sizes in 3″ (75mm) increments up to 18″ (450mm).

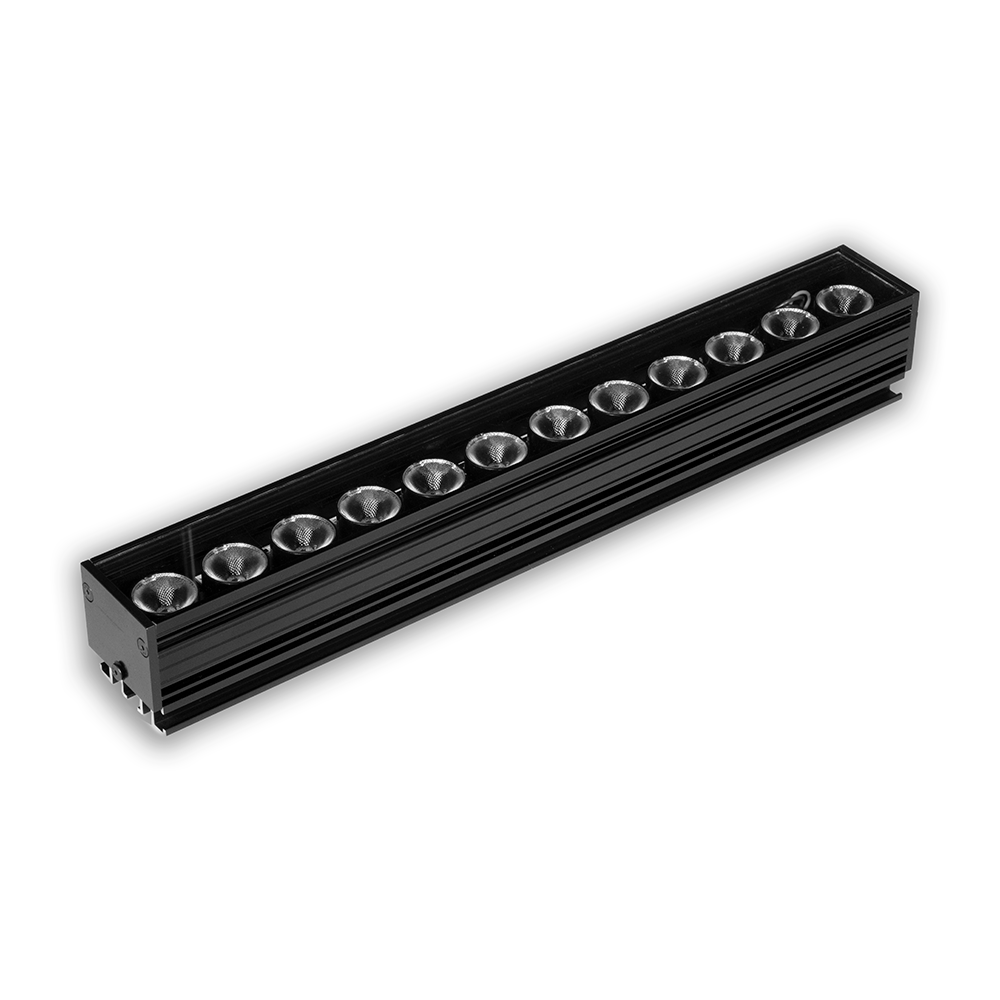

Solve your unique machine vision lighting challenges with the AL325 Modular Bar Light Series. This innovative modular system offers best-in-class performance and unmatched flexibility through its user-swappable efficient optical components.

Leveraging a field-proven design known for its reliability, this general-purpose bar light offers dependable performance for a wide array of machine vision tasks. Its strength lies in its versatility, available with 16 distinct wavelengths to match specific application requirements. Users can further tailor illumination using three lens options, providing narrow, medium, or wide beam angles.
